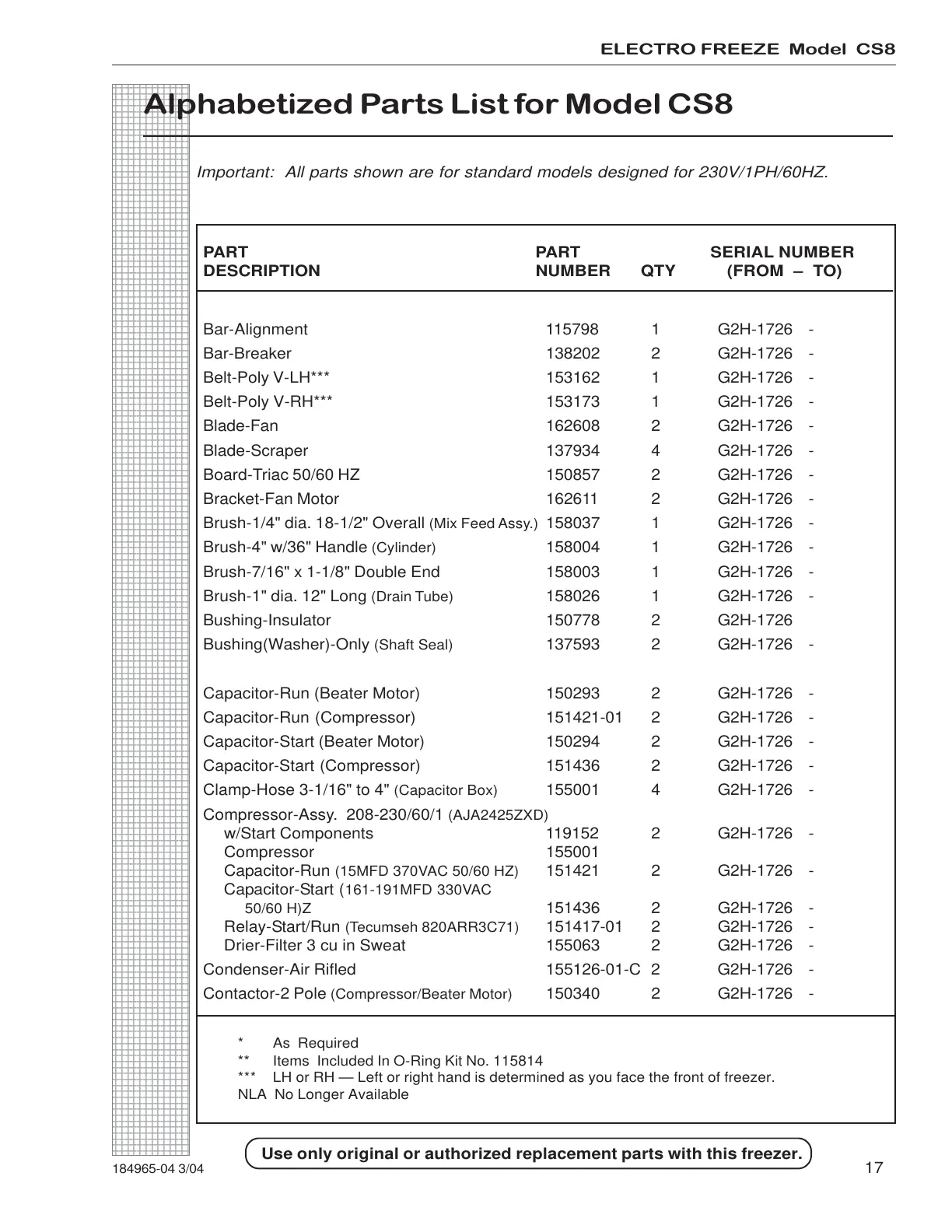

ELECTRO FREEZE Model CS8

Use only original or authorized replacement parts with this freezer.

184965-04 3/04 17

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/60HZ.

Alphabetized Parts List for Model CS8

* As Required

** Items Included In O-Ring Kit No. 115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Bar-Alignment 115798 1 G2H-1726 -

Bar-Breaker 138202 2 G2H-1726 -

Belt-Poly V-LH*** 153162 1 G2H-1726 -

Belt-Poly V-RH*** 153173 1 G2H-1726 -

Blade-Fan 162608 2 G2H-1726 -

Blade-Scraper 137934 4 G2H-1726 -

Board-Triac 50/60 HZ 150857 2 G2H-1726 -

Bracket-Fan Motor 162611 2 G2H-1726 -

Brush-1/4" dia. 18-1/2" Overall

(Mix Feed Assy.)

158037 1 G2H-1726 -

Brush-4" w/36" Handle

(Cylinder)

158004 1 G2H-1726 -

Brush-7/16" x 1-1/8" Double End 158003 1 G2H-1726 -

Brush-1" dia. 12" Long

(Drain Tube)

158026 1 G2H-1726 -

Bushing-Insulator 150778 2 G2H-1726

Bushing(Washer)-Only

(Shaft Seal)

137593 2 G2H-1726 -

Capacitor-Run (Beater Motor) 150293 2 G2H-1726 -

Capacitor-Run (Compressor) 151421-01 2 G2H-1726 -

Capacitor-Start (Beater Motor) 150294 2 G2H-1726 -

Capacitor-Start (Compressor) 151436 2 G2H-1726 -

Clamp-Hose 3-1/16" to 4"

(Capacitor Box)

155001 4 G2H-1726 -

Compressor-Assy. 208-230/60/1

(AJA2425ZXD)

w/Start Components 119152 2 G2H-1726 -

Compressor 155001

Capacitor-Run

(15MFD 370VAC 50/60 HZ)

151421 2 G2H-1726 -

Capacitor-Start (

161-191MFD 330VAC

50/60 H)Z

151436 2 G2H-1726 -

Relay-Start/Run

(Tecumseh 820ARR3C71)

151417-01 2 G2H-1726 -

Drier-Filter 3 cu in Sweat 155063 2 G2H-1726 -

Condenser-Air Rifled 155126-01-C 2 G2H-1726 -

Contactor-2 Pole

(Compressor/Beater Motor)

150340 2 G2H-1726 -
