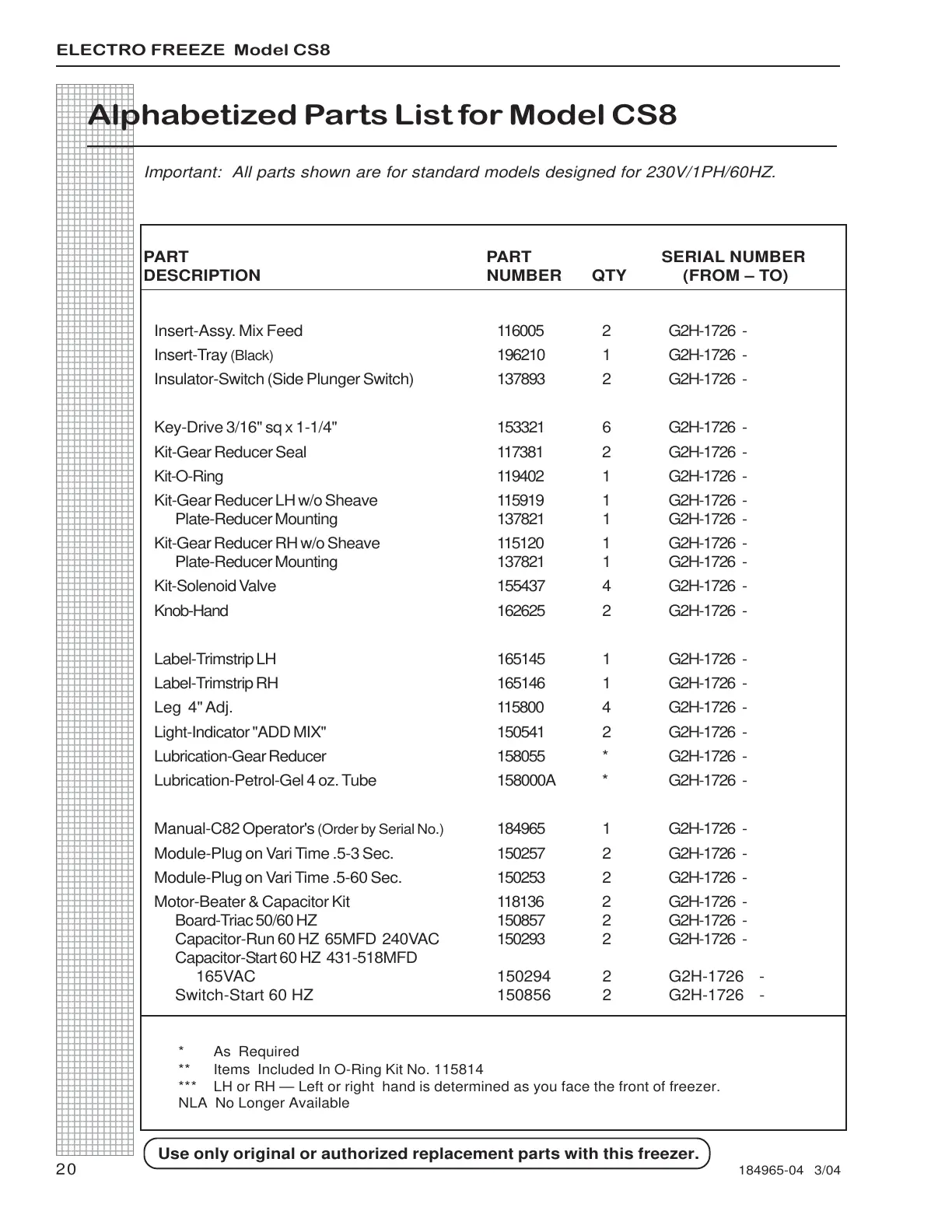

ELECTRO FREEZE Model CS8

Use only original or authorized replacement parts with this freezer.

20 184965-04 3/04

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/60HZ.

Alphabetized Parts List for Model CS8

* As Required

** Items Included In O-Ring Kit No. 115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Insert-Assy. Mix Feed 116005 2 G2H-1726 -

Insert-Tray

(Black)

196210 1 G2H-1726 -

Insulator-Switch (Side Plunger Switch) 137893 2 G2H-1726 -

Key-Drive 3/16" sq x 1-1/4" 153321 6 G2H-1726 -

Kit-Gear Reducer Seal 117381 2 G2H-1726 -

Kit-O-Ring 119402 1 G2H-1726 -

Kit-Gear Reducer LH w/o Sheave 115919 1 G2H-1726 -

Plate-Reducer Mounting 137821 1 G2H-1726 -

Kit-Gear Reducer RH w/o Sheave 115120 1 G2H-1726 -

Plate-Reducer Mounting 137821 1 G2H-1726 -

Kit-Solenoid Valve 155437 4 G2H-1726 -

Knob-Hand 162625 2 G2H-1726 -

Label-Trimstrip LH 165145 1 G2H-1726 -

Label-Trimstrip RH 165146 1 G2H-1726 -

Leg 4" Adj. 115800 4 G2H-1726 -

Light-Indicator "ADD MIX" 150541 2 G2H-1726 -

Lubrication-Gear Reducer 158055 * G2H-1726 -

Lubrication-Petrol-Gel 4 oz. Tube 158000A * G2H-1726 -

Manual-C82 Operator's

(Order by Serial No.)

184965 1 G2H-1726 -

Module-Plug on Vari Time .5-3 Sec. 150257 2 G2H-1726 -

Module-Plug on Vari Time .5-60 Sec. 150253 2 G2H-1726 -

Motor-Beater & Capacitor Kit 118136 2 G2H-1726 -

Board-Triac 50/60 HZ 150857 2 G2H-1726 -

Capacitor-Run 60 HZ 65MFD 240VAC 150293 2 G2H-1726 -

Capacitor-Start 60 HZ 431-518MFD

165VAC 150294 2 G2H-1726 -

Switch-Start 60 HZ 150856 2 G2H-1726 -
