Tripod and Floor Monitor Operation
Floor Monitor
Electro-Voice ELX112P and ELX115P loudspeakers may be used as a floor monitor by placing the
speaker on the integral monitor angle. Make sure to:
1MBDFUIFTQFBLFSPOBMFWFMTUBCMFTVSGBDFUIBUJTTPMJEBOETFDVSF
3PVUFDBCMFTTPUIBUQFSGPSNFSTQSPEVDUJPODSFXBOEBVEJFODFNFNCFSTXJMMOPUUSJQPWFSUIF
cables. Secure cables with wire ties or tape whenever possible.
See Figures 1a and 1b for optimal coverage areas in front of the loudspeaker when in monitor position.

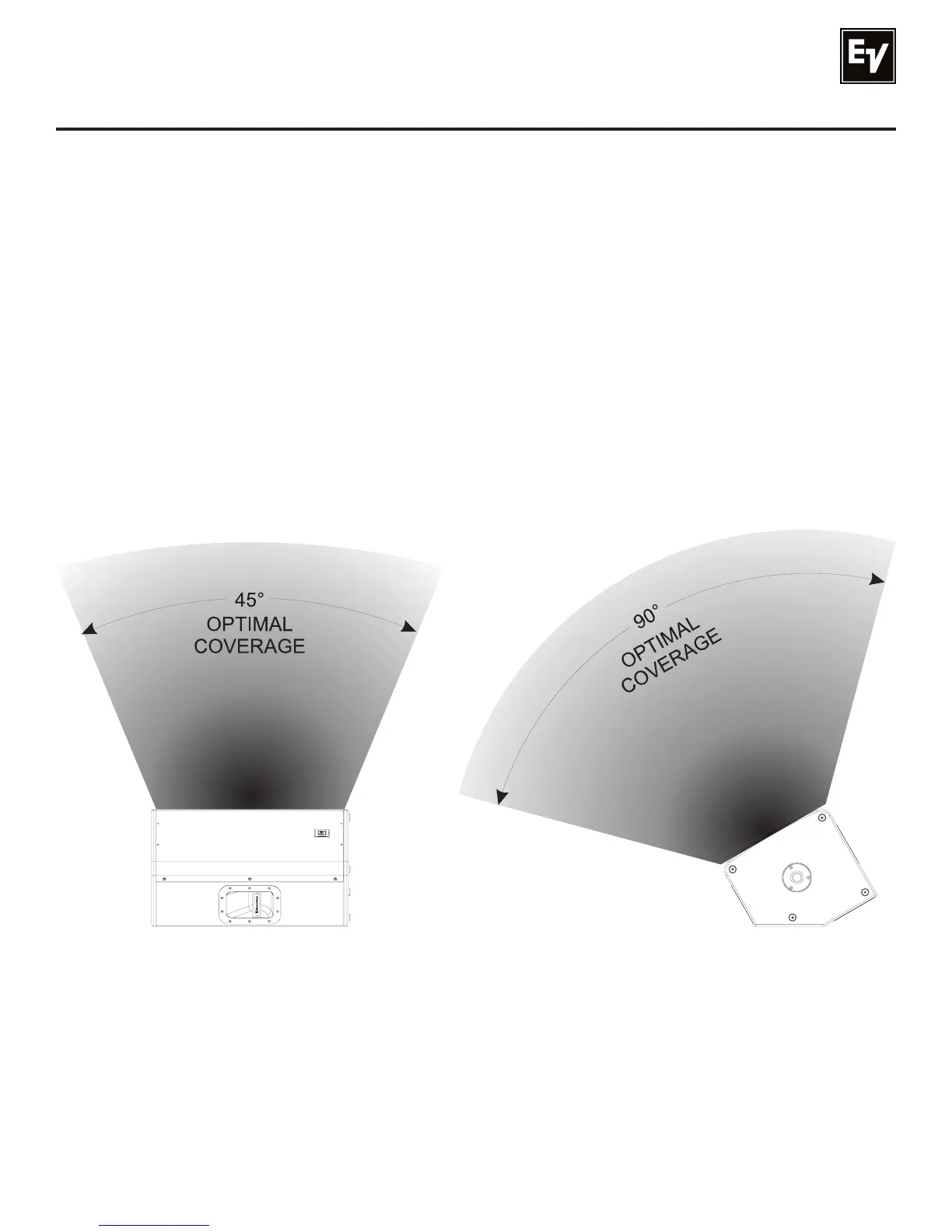

Figure 1a:
ELX112P / ELX115P Optimum Coverage
(Front View)
Figure 1b:
ELX112P / ELX115P Optimum Coverage
(Side View)
