Electro-Voice Live X Series Powered Owner’s Manual 9
Amplifier Controls

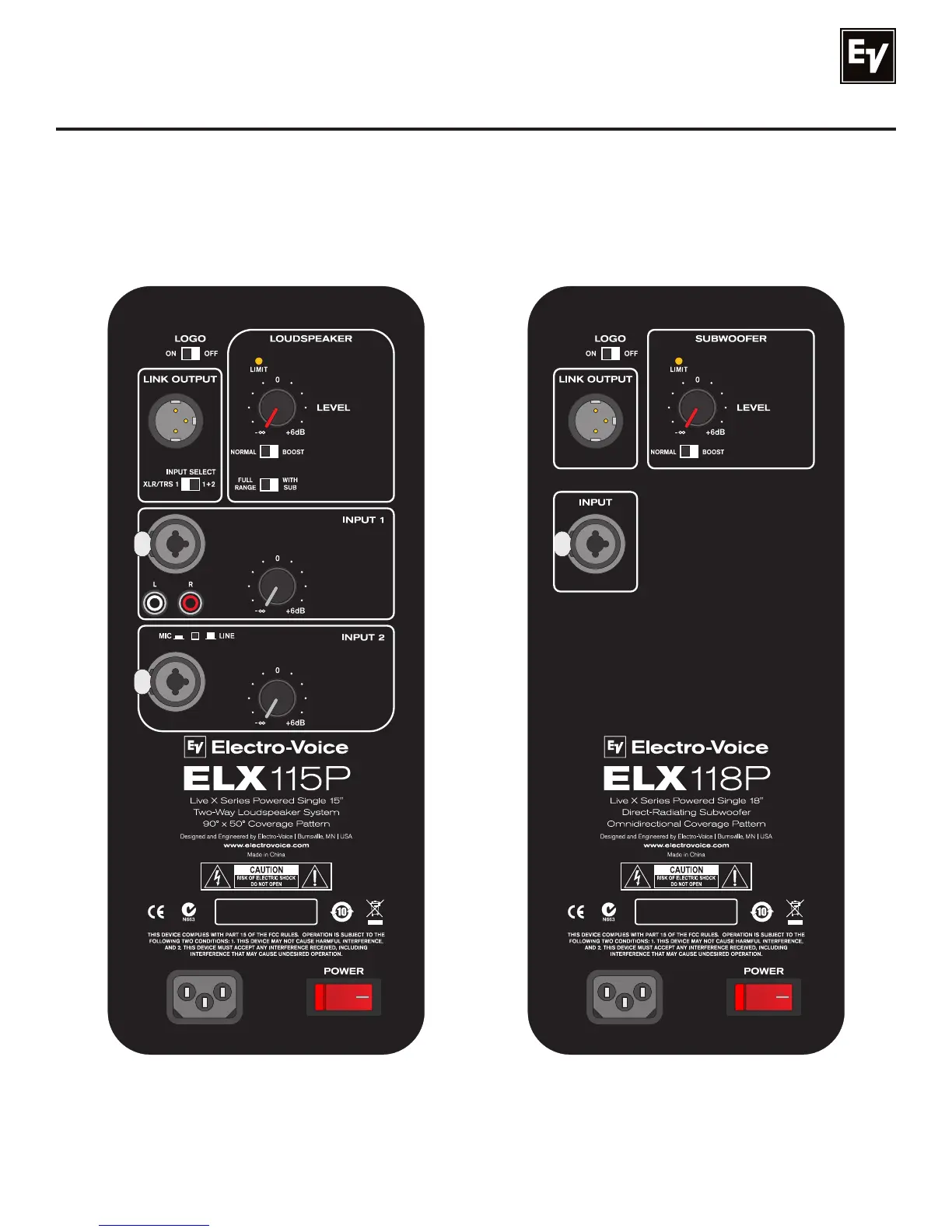

Figure 3a:
ELX112P / ELX115P (shown) Amplifier Panel
Figure 3b:
ELX118P Amplifier Panel
The Live X amplifier has a combination of controls and connectors to ensure the most versatile loudspeak-
er system. Each component below has a description on the following pages.
