Amplifier DSP
Amplifier DSP controls
The amplifier has a combination of controls and connectors to ensure the most versatile
loudspeaker system.
Portable column system control and monitoring interface
The portable column system DSP control menu selections are available for the EVOLVE 50 .

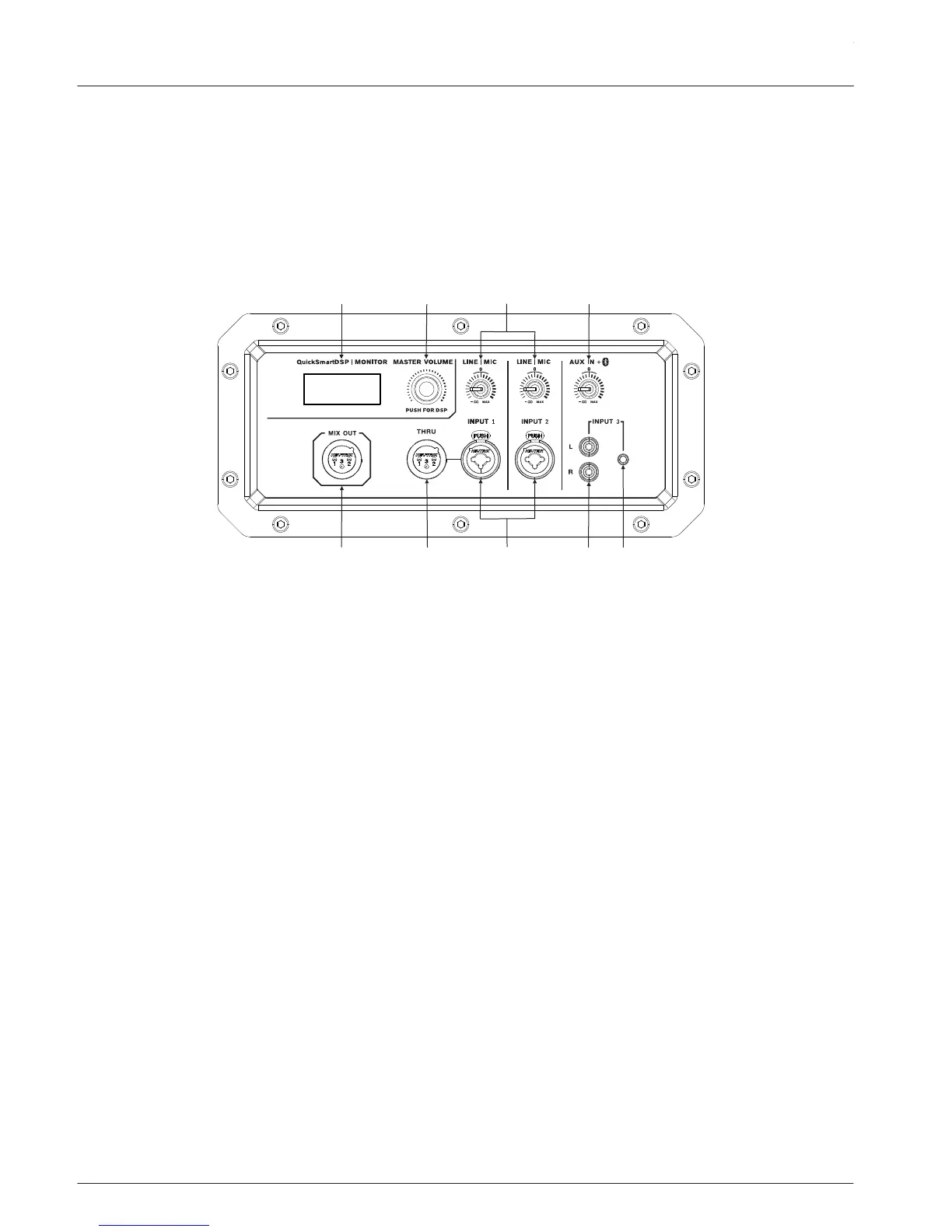

1 2 43
5 9876
1. LCD – DSP control and monitoring interface.
2. MASTER VOL – Adjusts the sound level.
DSP – Scroll through the menu and select the available choices. Push the MASTER VOL
knob to enter the DSP menu.
3. LINE | MIC – Electronically balanced INPUT 1 and INPUT 2 MIC/LINE for the connection of
a line level signal source (such as mixer etc.) or a microphone. Phantom power (+15 V)
can be enabled Phantom 1 or 2 if a condenser microphone is being used. Establishing a
connection is possible via TRS or XLR-type plugs. Whenever possible, balanced signal
feed is always preferable to guard against potential noise or HF-interference. This control
lets you optimally adjust the incoming signals to match the sensitivity of the system.
4. AUX IN – Control to adjust the input trim of the stereo RCA type, 3.5mm, or Bluetooth®
streaming inputs. This control lets you optimally adjust the incoming signals to match the
sensitivity of the system. Bluetooth®connectivity is available in select countries.
5. MIX OUT – The post-fader audio signals of INPUT 1, INPUT 2 and INPUT 3 are mixed and
passed to MIX OUT. The ratio of the input signals changes when the level controls INPUT
1, 2 or 3 are adjusted. This feature allows the loudspeaker to act as a basic three-channel
mixer that can send the mix to another loudspeaker via the MIX OUT socket. This output
is laid out in GND-SENSING technology, a special pin assignment of the output socket,
offering all advantages of the balanced signal transmission, but lets you also connect
monaural plugs without a problem.
6. THRU – The THRU output socket is connected in parallel to INPUT 1, it is used for carrying
through the pre-fader input signal to additional powered loudspeaker or subwoofer.
7. INPUT – Electronically balanced INPUT 1/2 MIC/LINE for the connection of a line level
signal source (such as mixer etc.) or a microphone. Establishing a connection is possible
via TRS or XLR-type plugs. Whenever possible, balanced signal feed is always preferable
to guard against potential noise or HF-interference.
8. INPUT 3 RCA Connector – Stereo unbalanced RCA type INPUT 3 AUX IN for connecting
sources such as CD players or MP3 players.
