Electro-Voice EVOLVE 50 - Frequency Response Data

Dimensions
345 mm
530.0 mm
470 mm
492 mm
7 mm
930 mm
55 mm
48.5 mm
38.5 mm
789 mm
68 mm
37.9 mm
29.7 mm
102 mm
825 mm
121.2 mm
102.4 mm
102 mm
157.2 mm
121.2 mm
172.0 mm
108.7 mm
[13.6 in]
[6.8 in]
[6.2 in]
[4.8 in]
[4.0 in]
[32.5 in]
[4.0 in] [4.3 in]
[4.0 in]
[4.8 in]
[31.1 in] [36.6 in]
[2.7 in]
[1.5 in]
[1.2 in]
[2.2 in]
[1.9 in]
[1.5 in]
[0.3 in]
[19.4 in]
[20.9 in]
[18.5 in]
471 mm
[18.5 in]

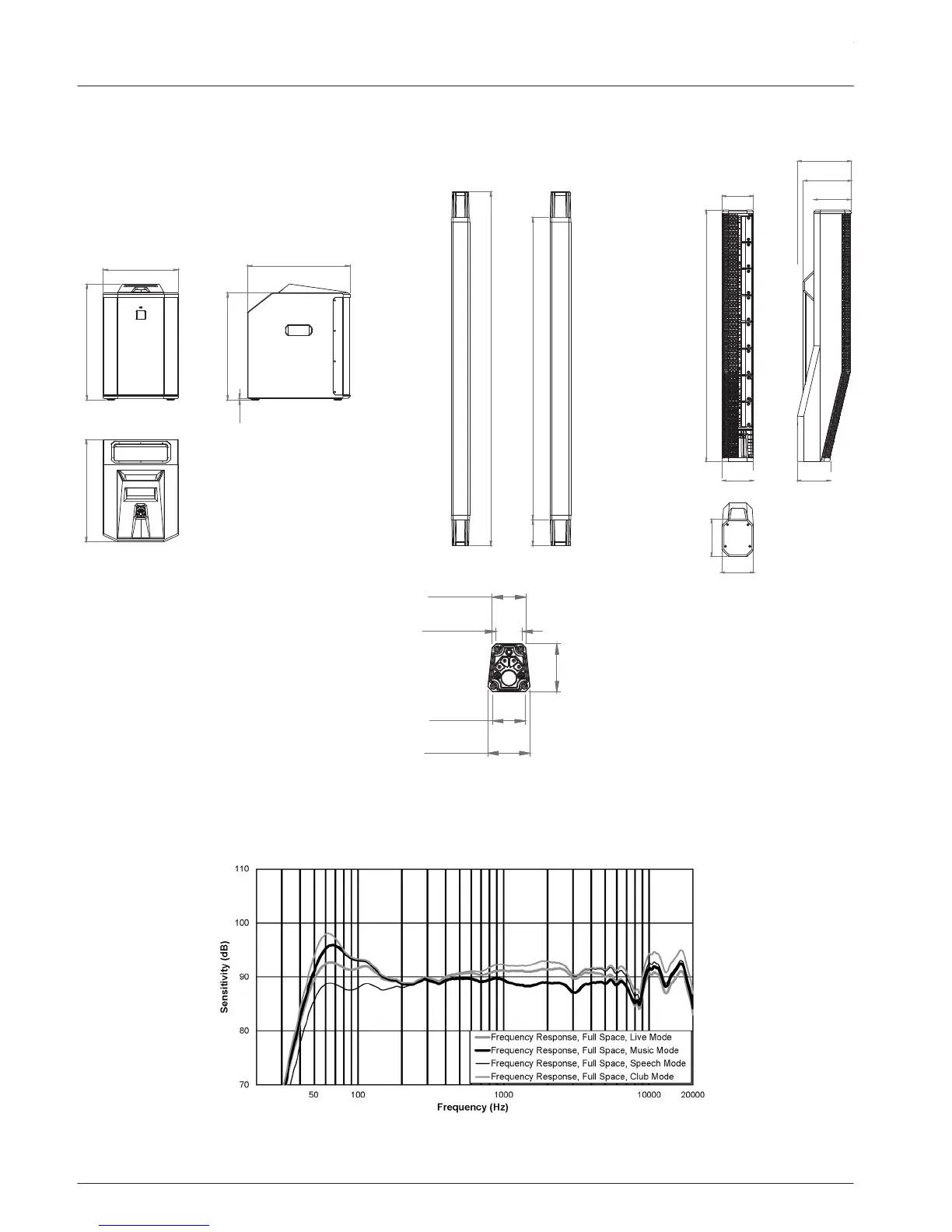

Figure 9.1: Dimensions EVOLVE 50 (subwoofer left, spacer center, and column right)
Frequency response
Figure 9.2: Frequency response EVOLVE 50 (Live Mode, Music Mode, Speech mode, and Club Mode)
