Electro-Voice EVOLVE 50 - System Status Indicators

9. INPUT 3 3.5mm connector – Balanced mono or unbalanced stereo input for mobile
phones, laptops, etc.
EVOLVE 50
FUSE T5AL/250V
REPLACE AS M ARKED
OPERATING VO LTAGE / TEGANGAN:
100-240V AC / 50-60 Hz
MAINS I N
POWER
ON OFF
BOSCH SICHERHEITSSYSTEME G MBH
85626 GRASBRUNN, GE RMANY
BOSCH SECURITY SYSTEMS, INC
14450 FAIRPORT, NY, USA
FOR INDONESIA ONLY:
IMPORTED BY / DIIMPOR OLEH
PT ROBERT BOSCH
JAKARTA, INDONESIA
www.electrovoice.com | MADE IN CHINA
10
11
Notice!
Markings and statements on amplifier panel may vary.

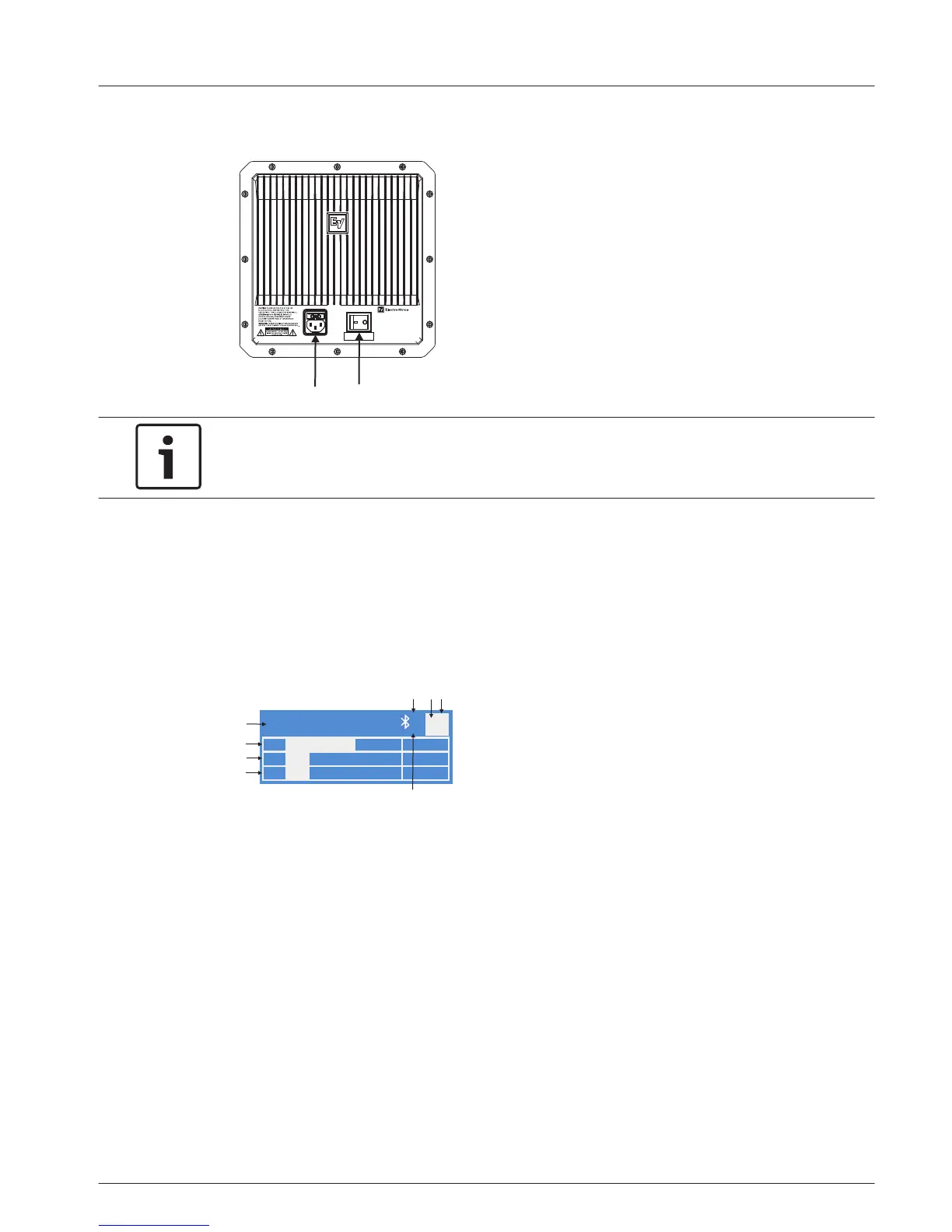

10. MAINS IN – The device receives its power supply via the MAINS IN socket. Only the
provided power cord may be used. Connect the device only to a mains network, which
corresponds to the requirements indicated on the type plate.
11. POWER – AC switch for switching the power ON or OFF. The LCD screen lights up when
the power is turned ON, after approximately 3 seconds.
System status
Normal
IN1
IN2
LEVEL 0dB
C
1
IN3
1
2
3
4
5
6
7
8
S
E
Figure 5.1: Normal system status home screen with Bluetooth® status
1. LEVEL – Indicates the master gain of the system in dB. The range is from mute to +10 dB,
in 1 dB increments.
2. IN1 – VU meter displays the signal level of INPUT 1 into the amplifier INPUT 1 XLR
connector. IN1 and IN2 are independent of each other.
3. IN2 – VU meter displays the signal level of INPUT 2 into the amplifier INPUT 2 XLR
connector. IN1 and IN2 are independent of each other.
4. IN3 – VU meter displays the signal level of INPUT 3.
5. C - Control app; the available options are:
OFF - DISABLED
FLASHING - PAIRING MODE
SOLID - CONNECTED
6. 1 - Indicates the selected store function number. There are five user defined store
function numbers available.
7. E - Indicates the preset is not saved. When the preset is saved the E is not displayed.
8. S - Audio streaming; the available options are:
5.2
en 13
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
