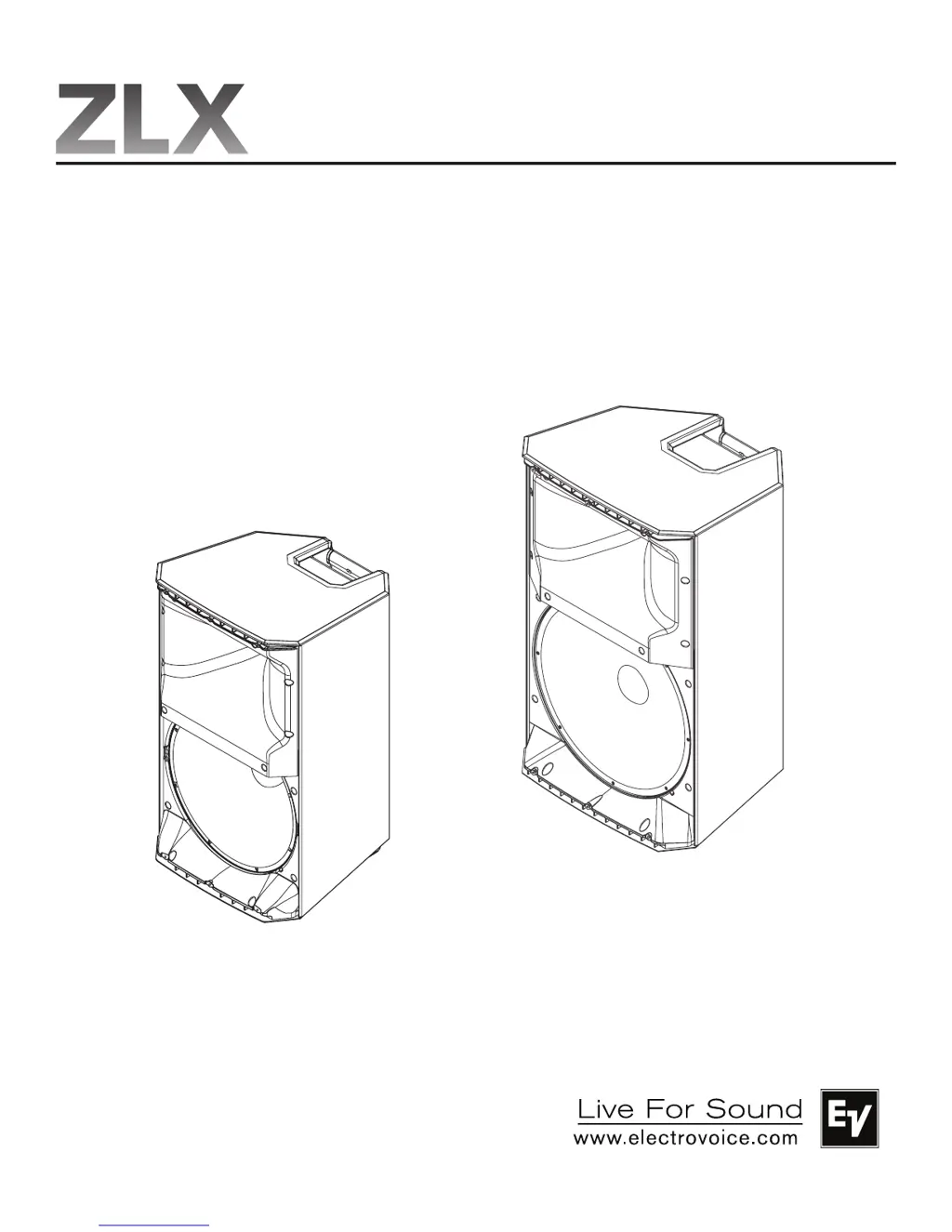

ZLX Series
Loudspeaker
Owner’s Manual
ZLX-12P
ZLX-15P
ZLX- 12
ZLX- 15

Table of Contents

Other manuals for Electro-Voice ZLX-12P

Preview: Installation Manual
Installation Manual44 pages
Preview: Quick Start Guide
Quick Start Guide2 pages

Questions and Answers

  • A
    Angela HunterSep 5, 2025
    How to stop buzzing, hissing, or humming noise from Electro-Voice Speakers?
    • N
      Nicholas ThomasSep 5, 2025
      Constant noise like buzzing, hissing, or humming from Electro-Voice speakers can stem from a few sources: * **Defective source:** If noise is present without program material playing, evaluate each component to isolate the problem. A break in the signal path is likely. * **Grounding issues:** Check and correct the system grounding, as required. * **Input gain knob:** Slowly increase the input gain knob level to engage the microphone pre-amp.
  • G
    grossshawnNov 26, 2025
    Why is there no sound coming from my Electro-Voice ZLX-12P Speakers?
    • C
      Cameron NielsenNov 27, 2025
      If there is no sound coming from your Electro-Voice speakers, connect a known working test speaker to the amplifier outputs. If there is still no sound, check that all the electronics are on, the signal routing is correct, the source is active, and the volume is turned up. Correct, repair, or replace components as necessary. If there is sound from the test speaker, the problem is in the wiring. Verify that you have connected the correct wire pairs to the amplifier. Play something at low level through the amplifier (for example, from an MP3 device). Connect the test speaker in parallel with the malfunctioning line. If the sound level has gone or is very weak, the line has a short in it. If the sound level is normal, the wire is open. Using the test speaker, move down the line and test each ...
  • D
    David PachecoSep 18, 2025
    How to unlock the DSP menu on Electro-Voice ZLX-12P?
    • S
      scottelizabethSep 18, 2025
      If the DSP menu on your Electro-Voice speakers is locked (indicated by a lock symbol on the LCD screen), the Menu Lock function has been turned on. To unlock it, press and hold the MASTER VOL knob for 5 seconds.
  • J
    jennifer32Sep 16, 2025
    What to do if Electro-Voice Speakers have poor low-frequency response?
    • D
      Devin WhiteSep 16, 2025
      If you notice poor low-frequency response from your Electro-Voice speakers, and the SUB menu cross-over frequency is activated, but no subwoofers are used with the system, select the OFF position.
  • G
    gregory50Sep 14, 2025
    Why does streaming audio skip or stutter on my Electro-Voice Speakers?
    • S
      sandra97Sep 14, 2025
      Skipping or stuttering playback during streaming audio on your Electro-Voice speakers can be due to: * **Distance:** Move the paired mobile device closer to the loudspeaker. * **Interference:** This Bluetooth enabled loudspeaker occupies the same operating frequencies as other Bluetooth devices, as well as Wi-Fi and other wireless transmissions (like wireless home phones). If you are experiencing drop- outs, your speaker may be in an environment that makes reliable wireless audio difficult. Try to move the loudspeaker to different locations in the room, and especially away from 2.4gHz routers and microphone receivers. If the problem persists, revert back to a wired connection while at that particular venue.
  • M
    melissa12Sep 12, 2025
    What causes cracking or distortion in Electro-Voice ZLX-12P output?
    • L
      Lauren AdamsSep 12, 2025
      Intermittent output, like cracking or distortion, from Electro-Voice speakers often points to a faulty connection. Check all connections at the amplifier and loudspeakers to ensure they are clean and tight. If the problem continues, inspect the wiring as described in the troubleshooting for 'no sound'.
  • S
    Sean FreemanSep 12, 2025
    Why is there no sound with a microphone connected to Electro-Voice ZLX-12P?
    • C
      Christina AguilarSep 12, 2025
      If no sound is produced when a microphone is connected to INPUT 1 or INPUT 2 on your Electro-Voice speakers, there are a couple of possibilities: * **Phantom power:** Use a dynamic microphone that does not require phantom power. If using a microphone requiring phantom power, an external phantom power source is needed. * **Input gain knob:** Slowly increase the input gain knob level to engage the microphone pre-amp.
  • M
    Mark BurkeSep 9, 2025
    Why is there no streaming audio from my Electro-Voice ZLX-12P Speakers?
    • L
      Lauren QuinnSep 9, 2025
      If you're experiencing no streaming audio with your Electro-Voice speakers, consider the following: * **STREAMING is OFF:** Set STREAMING to PAIRING and initiate the Bluetooth pairing process on your mobile device. * **Mobile device paired incorrectly:** If previously paired to a different Bluetooth enabled ZLX loudspeaker, you may be pairing with the wrong device. Try deleting all saved connections labeled EV ZLX BT and try the pairing process again. * **Input level too low:** While music is playing, turn up the volume on the paired mobile device. You will see the BT VU Meter receiving signal. Reduce if you see a CLIP notification. * **Output Gain is too low:** Increase output gain by setting your LEVEL with the MASTER VOL knob, paying attention to CLIP and LIMIT notifications.
  • R
    rfranklinSep 7, 2025
    What to do if Electro-Voice Speakers sound distorted and the LIMIT light is on?
    • R
      Rebecca LucasSep 7, 2025
      If the sound from your Electro-Voice speakers is distorted, the front LED is off, and the LCD screen shows 'LIMIT' is on, it indicates an excessive input level. Reduce the input level or loudspeaker level knobs to prevent limiting.
  • S
    Sharon WilliamsAug 20, 2025
    Why is my Electro-Voice speaker sound distorted and the LCD screen shows LIMIT?
    • M
      Melissa PierceAug 20, 2025
      The sound distortion and the 'LIMIT' indication on the LCD screen of your Electro-Voice speaker usually means there's an excessive input level. Reduce the input level or loudspeaker level knobs to prevent limiting. It can also happen if the gain structure is incorrect or the source input (mixing console/ preamp) is overdriven. Check the level controls of the source using the VU meter on the LCD screen. If the VU meter bar is solid or the system indicates LIMIT, the input or source level is too high.

Summary

Important Safety Instructions

FCC Information

Details FCC compliance for the device, including limits for digital devices and radio frequency energy.

Precautions

Description

Quick Setup

System Features

Tripod and Floor Monitor Operation

Tripod and Floor Monitor Operation (cont.)

Amplifier Controls

LCD DSP Controls

LCD DSP Controls (cont.)

Recommended Configurations

Recommended Configurations (cont.)

Recommended Configurations (cont.)

Specifications-ZLX Powered

Specifications-ZLX Passive

Dimensions-ZLX Powered

Dimensions-ZLX Passive

Frequency Response Graphs-ZLX Powered

Frequency Response Graphs-ZLX Passive

ZLX Series Model Reference Table

Warranty Information

Troubleshooting

Electro-Voice ZLX-12P Specifications

General IconGeneral
Product colorBlack
Volume controlRotary
Housing materialPolypropylene (PP)
Recommended usageStudio
Suitable for outdoor useYes
Speaker type2-way
Number of drivers2
Speaker placementFloor
Audio output channels1.0 channels
Woofer diameter (imperial)12 \
Tweeter diameter (imperial)1.5 \
Amplifier classD
Impedance- Ω
Frequency range50 - 20000 Hz
RMS rated power- W
DisplayLSD
Maximum power1000 W
Connectivity technologyWired
6.35 mm (1⁄4-inch) input1
AC input voltage100 - 240 V
Power source typeAC
Package weight19000 g
Weight and Dimensions IconWeight and Dimensions
Width356 mm
Height610 mm
Weight15600 g
