22
• Connect the rinse-aid dispenser between terminals 8 and 9.
These connection points are live during filling of the tank
and at the end of the rinse cycle for a set time (see I.2
Setting the dispensers paragraph).
G CONTROL PANEL DESCRIPTION

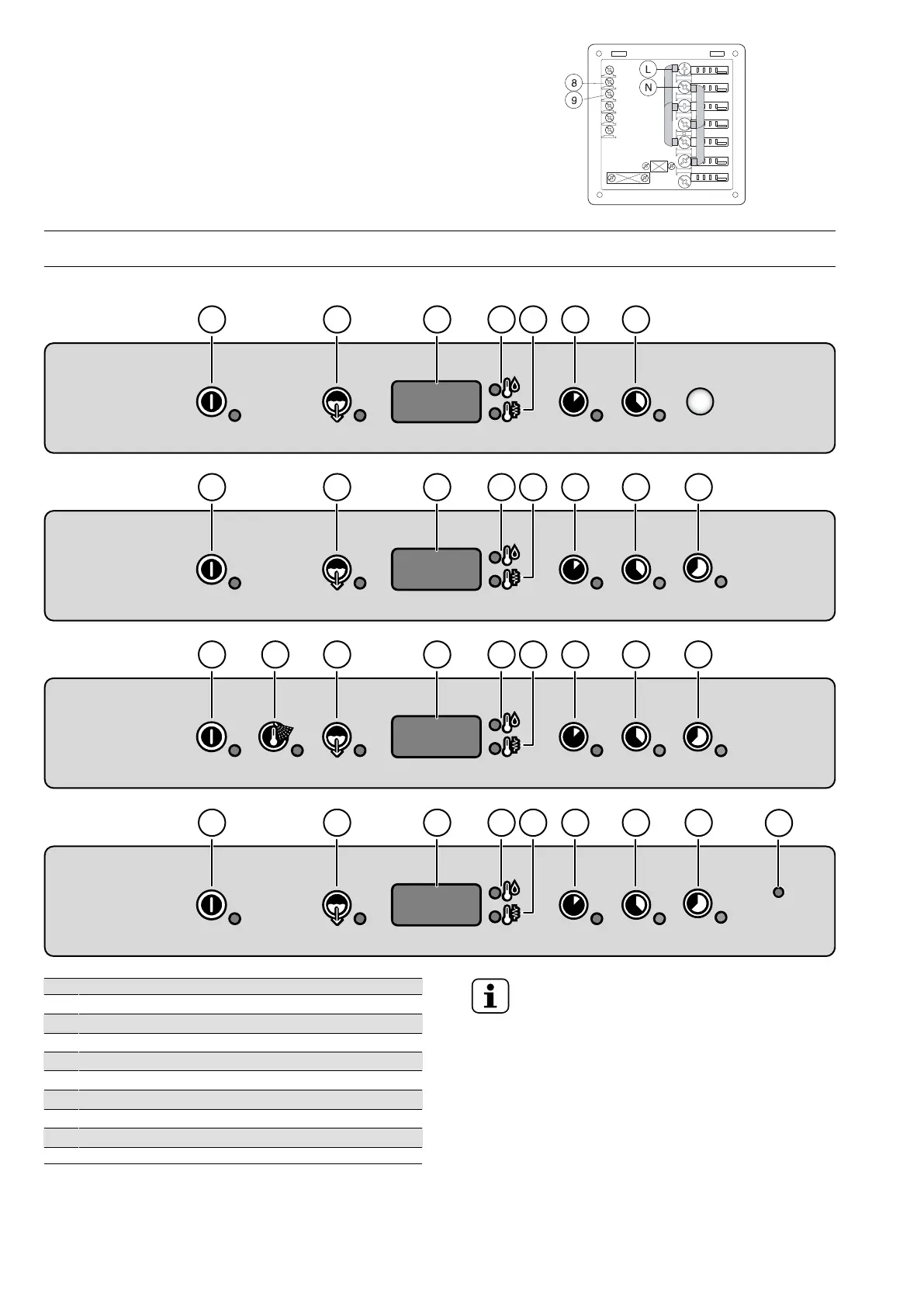

G.1 Control panel description
1 On/Off
2 Drain/self-cleaning cycle
3 Display
4 Tank temperature indicator
5 Boiler temperature indicator
6 Wash cycle 1
7 Wash cycle 2
8 Wash cycle 3
9 Cold rinse cycle
10 Active/Wash Safe Control indicator
NOTE!
The temperature shown on the display refers to the
boiler if the indicator “5“ is lit up or to the tank, if the
indicator “4“ is lit up.
The tank temperature is displayed during the wash
phase and the boiler temperature during the rinse
phase.
G.2 Basic Controls
Described below are all the single buttons and functions
available in the various control panel models listed above.
Some functions are common to all models of the range,
whereas others are available only on some versions.
