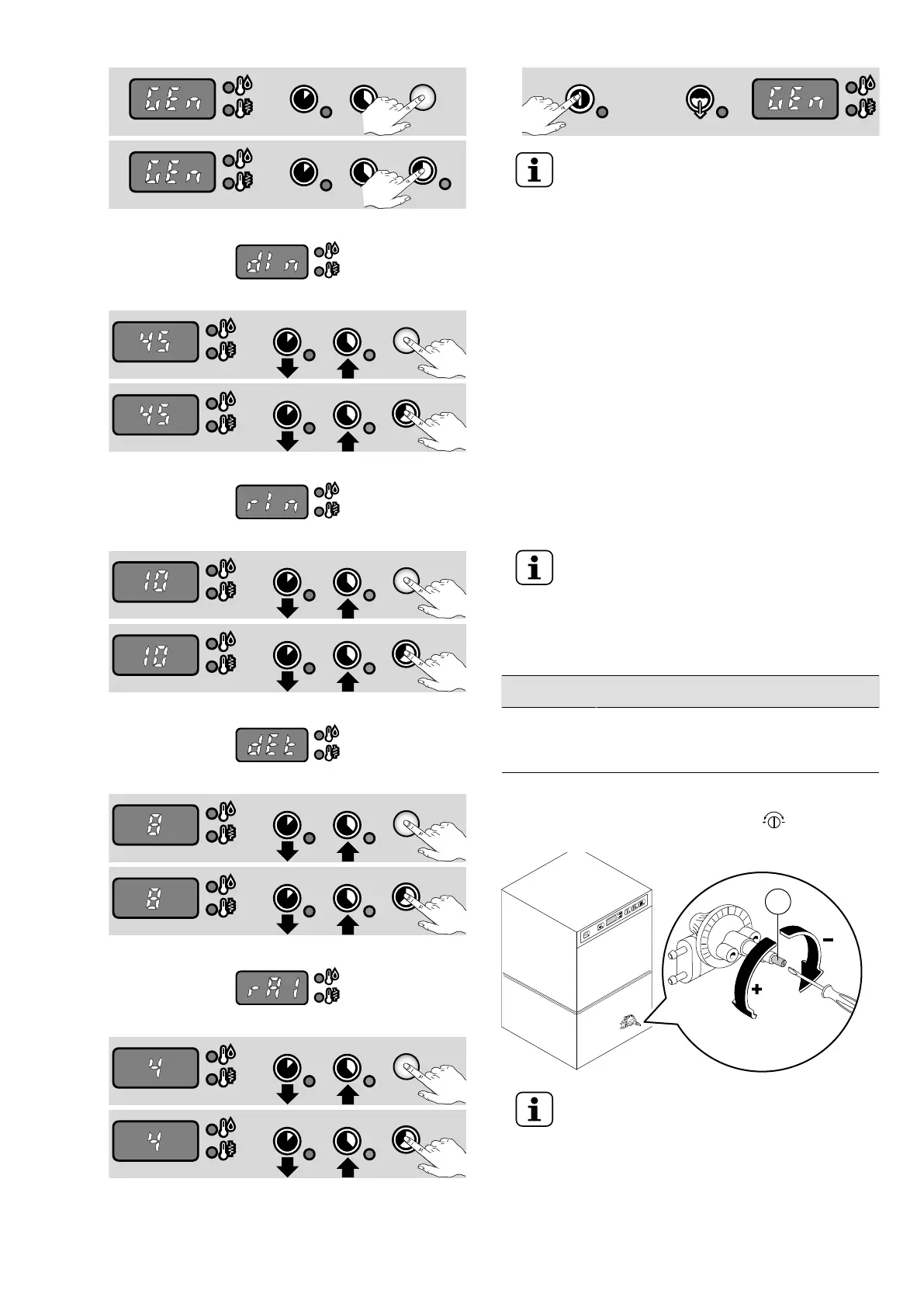

2. Display of programming mode:
3. Initial amount of detergent:
4. Setting the activation time:
5. Initial amount of rinse-aid:
6. Setting the activation time:
7. Amount of detergent during the cycle:
8. Setting the activation time:
9. Amount of rinse-aid during the cycle:
10.Setting the activation time:
11. Exit from programming mode:
NOTE!
To obtain excellence washing performance, use
detergent, rinse aid and descaling agent sug-
gested by Electrolux Professional. In the Electrolux
Professional web site, open the “Accessories and
Consumables“ web page and navigate into the
dishwashing equipment tab to order most suitable
detergents and accessories.
Notes for external dispensers:
• if the setting is: det = 181, the detergent dispenser only
operates during wash pump operation; terminals 7-9 of the
main terminal board are powered at the same time.
• if the setting is: det = 182, the detergent dispenser only
operates during filling electrovalve operation for restoring
the boiler level; terminals 7-9 of the main terminal board are
powered at the same time.
• if the setting is: rai = 61, the rinse-aid dispenser only
operates during filling electrovalve operation for restoring
the boiler level; terminals 8-9 of the main terminal board are
powered at the same time.
• if the setting is: rai = 62, the rinse-aid dispenser only
operates during wash pump operation; terminals 8-9 of the
main terminal board are powered at the same time.
NOTE!
For connections, see the wiring diagram.
Example
Supposing that an external detergent dispenser has been
connected with a tank concentration measuring sensor, a
standard setting could be as follows:
dln = 0
the dispenser is not activated during filling of
the tank.
det = 181
the dispenser is activated during wash pump
operation and, thanks to the concentration
measured by the conduction sensor, the
correct amount of detergent is dispensed.
I.2.2 Rinse-aid diaphragm dispenser
To change the dispensed amount, turn
on screw “D“
accordingly .
NOTE!
To check the effectiveness of the rinse-aid, look at
freshly washed glasses against the light.
Drops of water remaining on the glass indicate an
insufficient amount while streaks indicate an
excess.
