At works the touch board is stuck directly onto the switch panel. Even in the need of replacement
the switch panel and the touch board form one unit. It is provided with nine sensors which transmit
the received impulses to the user interface. This happens via a data link in form of a foil conductor.

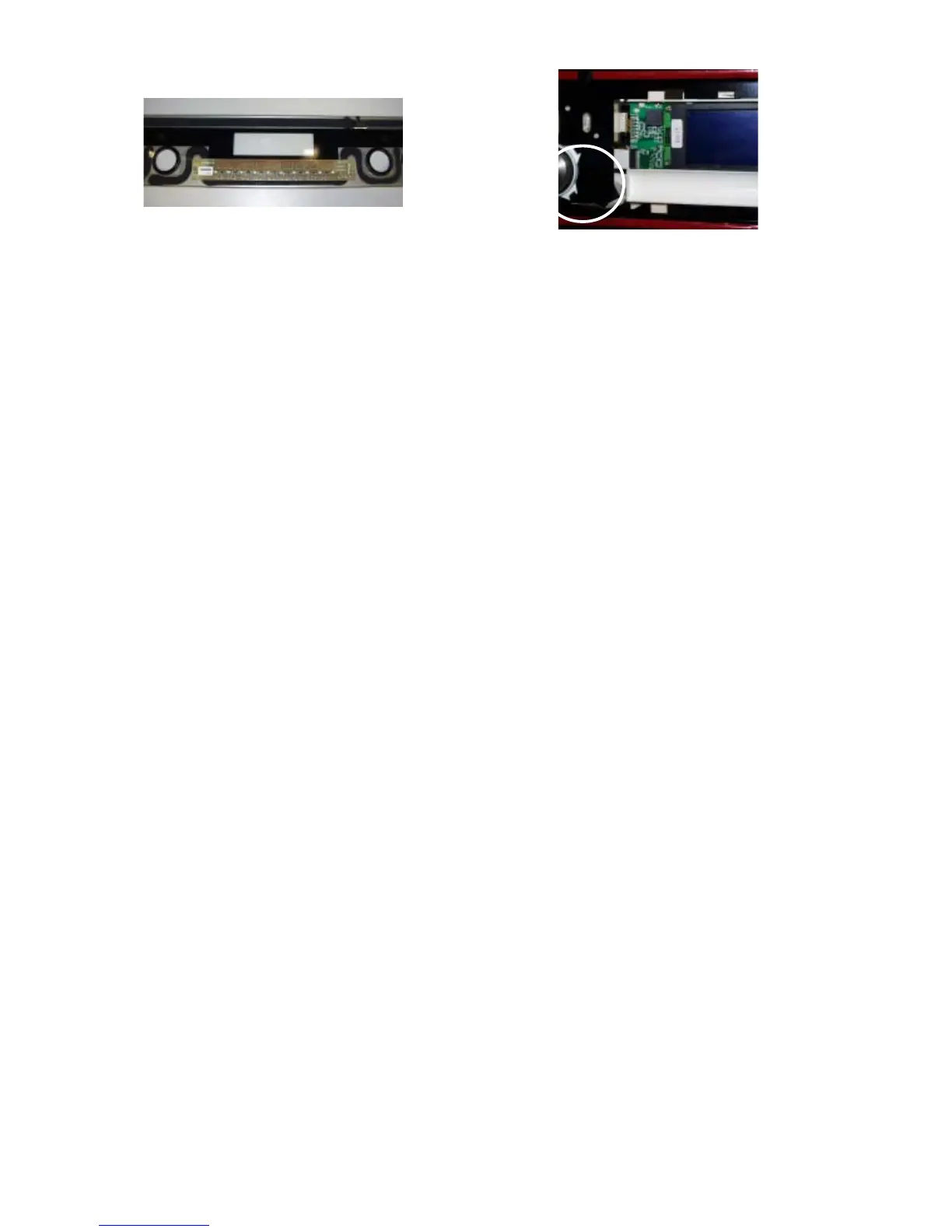

Fig. Touch board stuck with switch panel Fig. Foil conductor
