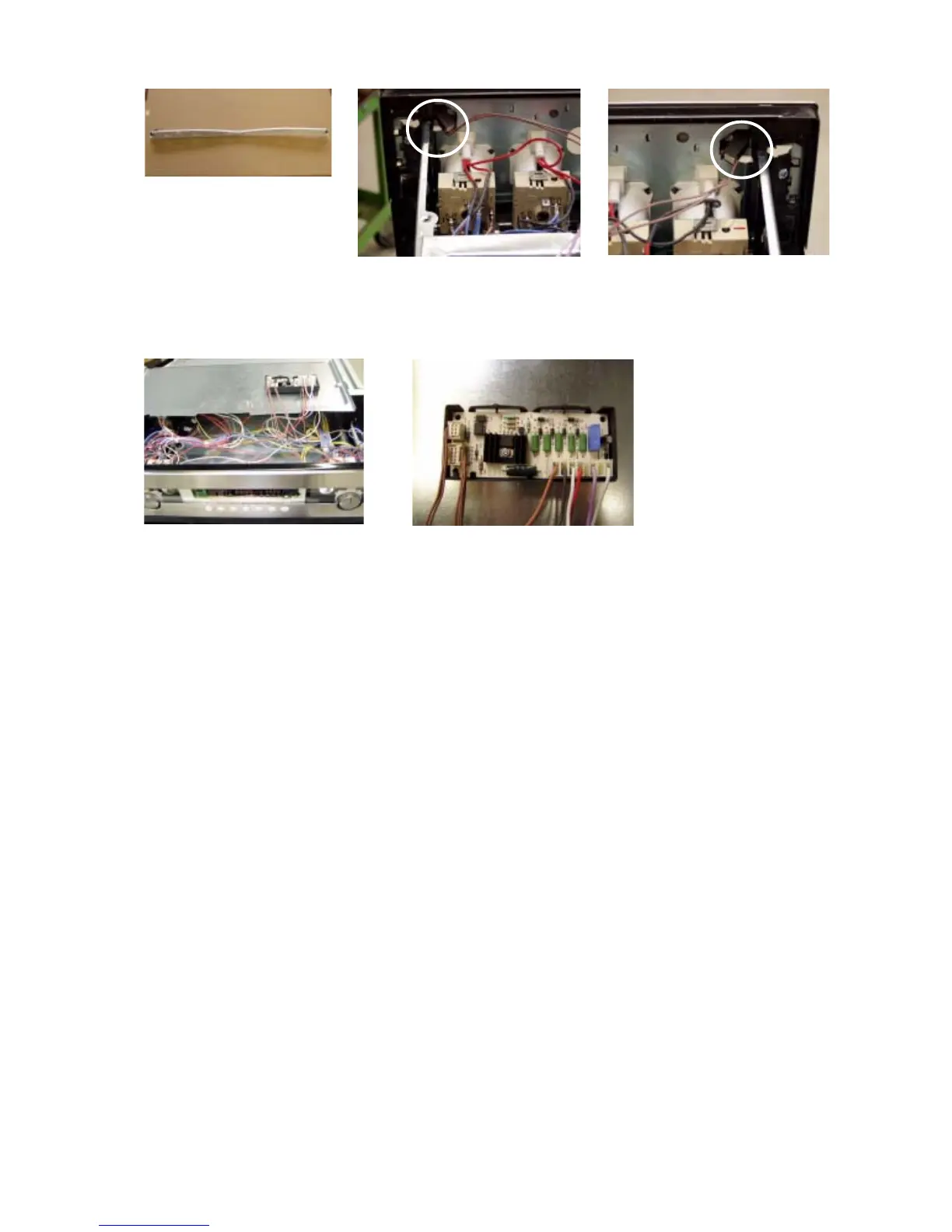

The illustrations show the light bar as a separate component and the electric terminals from the
perspective of the interior of the device, on the left and on the right respectively. The installation
occurs in the truss of the control panel. The control panel must be removed in order to be able to
deinstall the light bar.
4.1.6 Light bar in the control panel
The activation of the light bar occurs through a activation electronics that is hafted on the lower
surface of the front cover. It provides the light bar with a voltage of 7V/18mA.
