4.2 Functional parts - Cooking setting control
4.2.1 Power controller

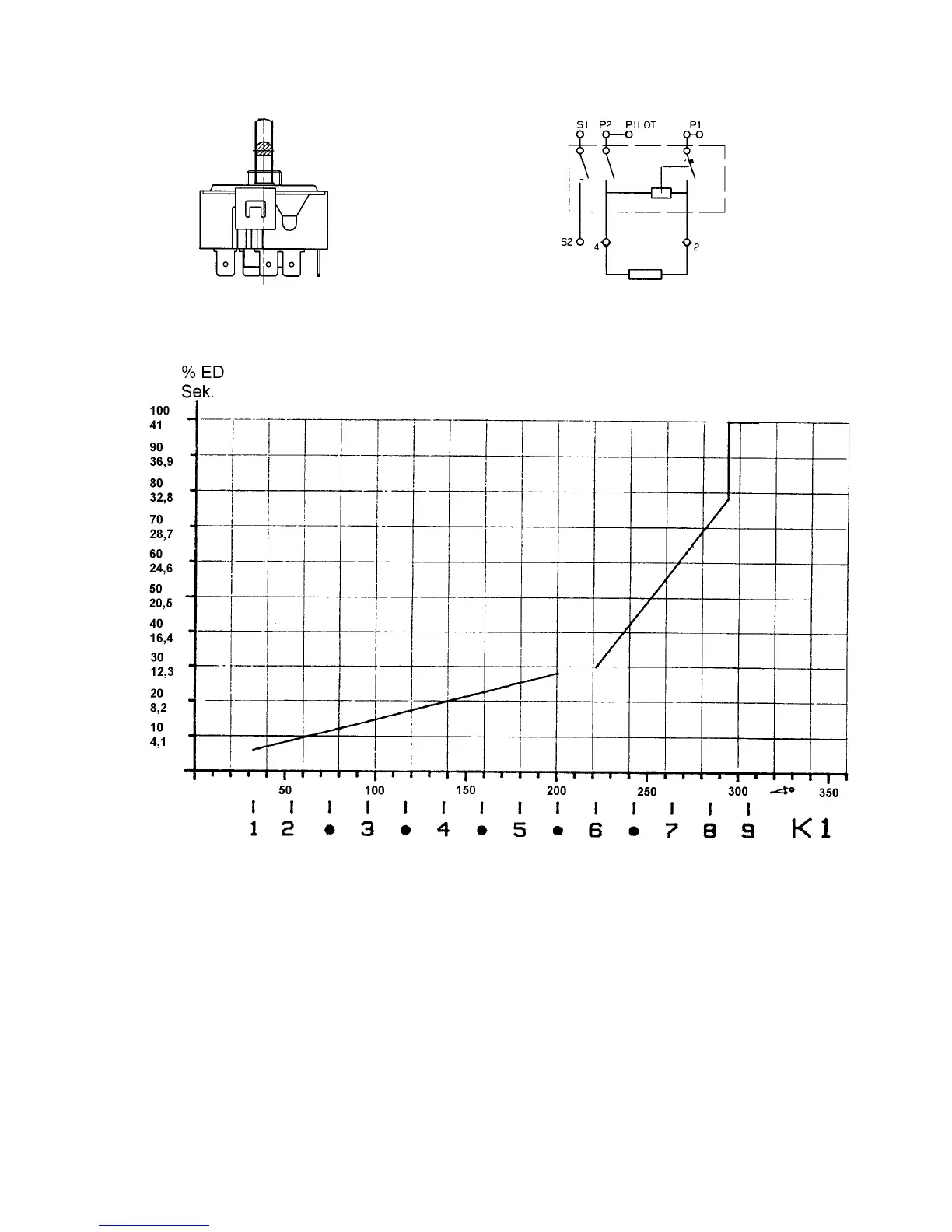

Fig. Power controller Fig. Switch in „OFF“ position
Input voltage 230 V
Fig. Performance characteristic
K1 – Knob position
% ED – Switching on period in percent
100 % corresponds to a switching on period of 41 seconds
The hot plates are controlled via the bimetallic contact P 1-2. The input voltage of 230 V is applied
here.
Depending on the position of the knob, this contact determines how often the hot plate is switched
on or off during a certain unit of time by cycling the maximum heating power (230 V or 0 V between
contact 2 and 4) (refer to performance characteristic).
Continuous operation at max. heating power is hot plate 9.
The power characteristic shows the power controller in cycling mode.
The average switching on period for each knob position can be read off in % of the cycled and/or
max. power.
