5.4 Oven rack protective circuit

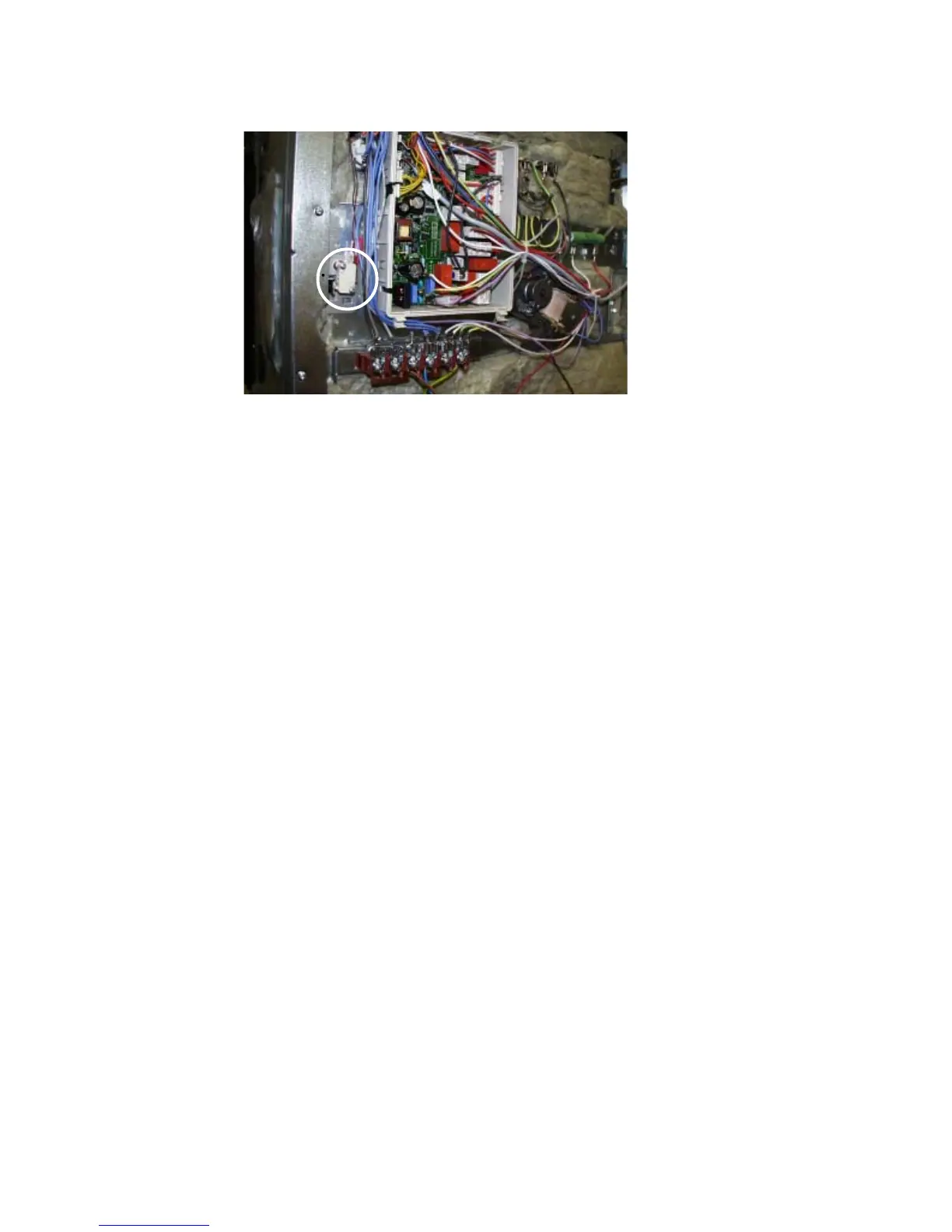

Appliances with Pyroluxe self-cleaning system are provided with a microswitch. Dieser Mikro-
schalter befindet sich an der linken äußeren Seite der Komponentenplatte. Only with attached oven
racks, not with slide-in grids, the microswitch interrupts a switch contact which prevents an
activating of the pyrolytic function.
Note: for wiring diagram see chapter 7
