Electrolux COOKING - Power Electronic OVC2000

- 13 -
DGS-TDS-N 05.09 A. B. © Electrolux 599 521 367 EN
The power electronics are located on the rear side of the appliance and are accessible after
removing the housing rear panel. The power board is installed in a so-called „functions box“ made
of plastic. These two components, power electronics and plastic box, are also a replacement part
unit (see Ill.)
Please refer to Chapter 7 for connection designations and possible measuring points.

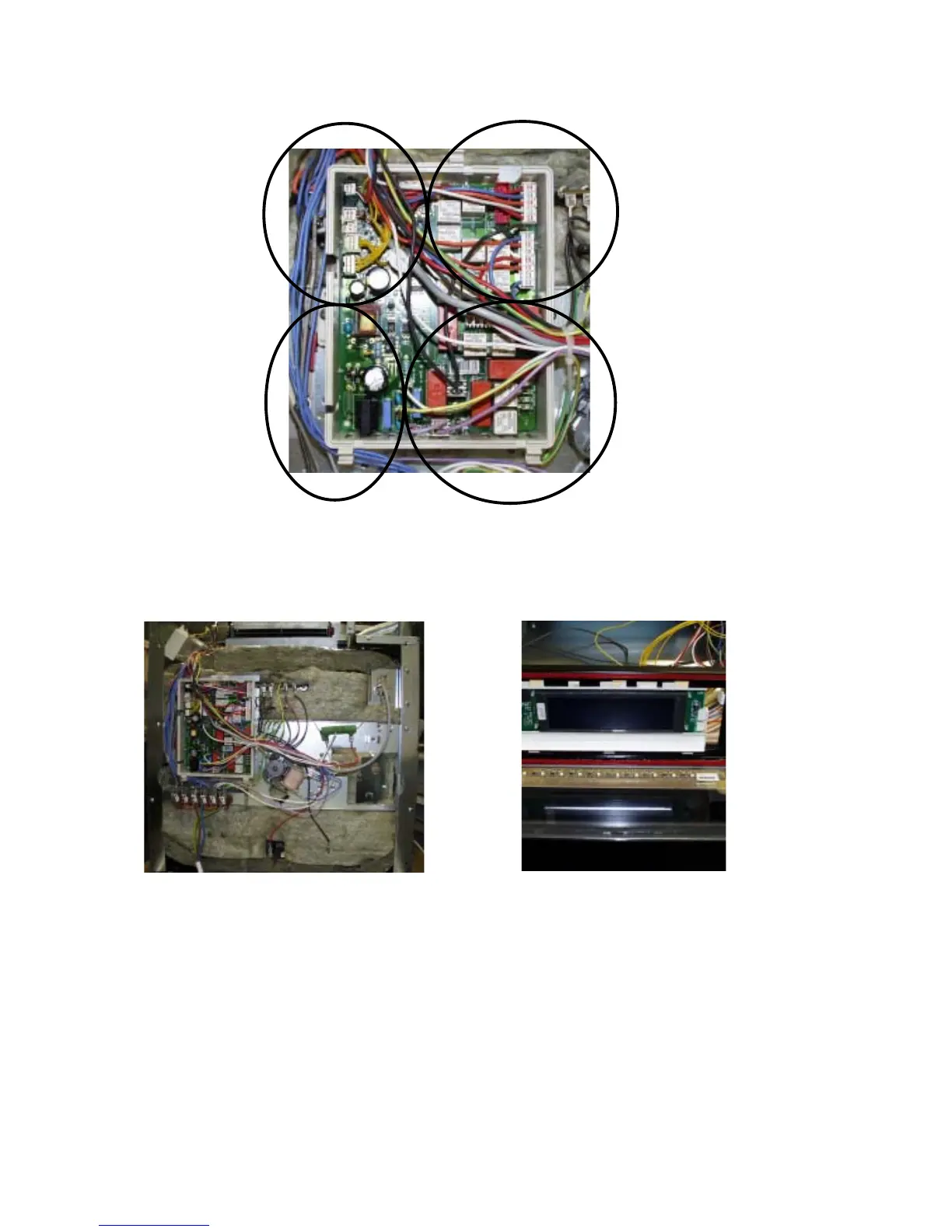

Fig.: assembly situation Fig.: Spare part OVC2000
Fig.: Powerboard OVC2000 wired in the appliance
4.1.2 Power electronic OVC2000
Connections for
- meat thermometer
- Temperature sensor
- door lock
- telescopic bars
- data link
Power supply
50....60Hz
230V AC
Relay for
- door lock
- lighting
- fan, moto
Relay for
- all-pole cutoff
