installation
Built-in Cooking INSTALLATION 23
Cabinet construction for your appliance
For the best integration within a kitchen, install this appliance in
a standard 600mm wide cupboard that gives a flush fit with the
surrounding cupboard fronts (figure A).
A recess of 20mm is ideal. It can also be installed using a proud
fit with the surrounding cupboard (figure B).
NOTE:Yourappliancemustbemountedonaatsurfacefor
the full width and depth of the product.
Underbench Ovens
Your underbench oven looks best when the control panel is directly
under the benchtop. An upper infill panel may have to be added
if the cooktop placed above the benchtop is too deep.
Refer to cooktop installation instructions for required clearance
between cooktop and oven.
Oven Dimensions

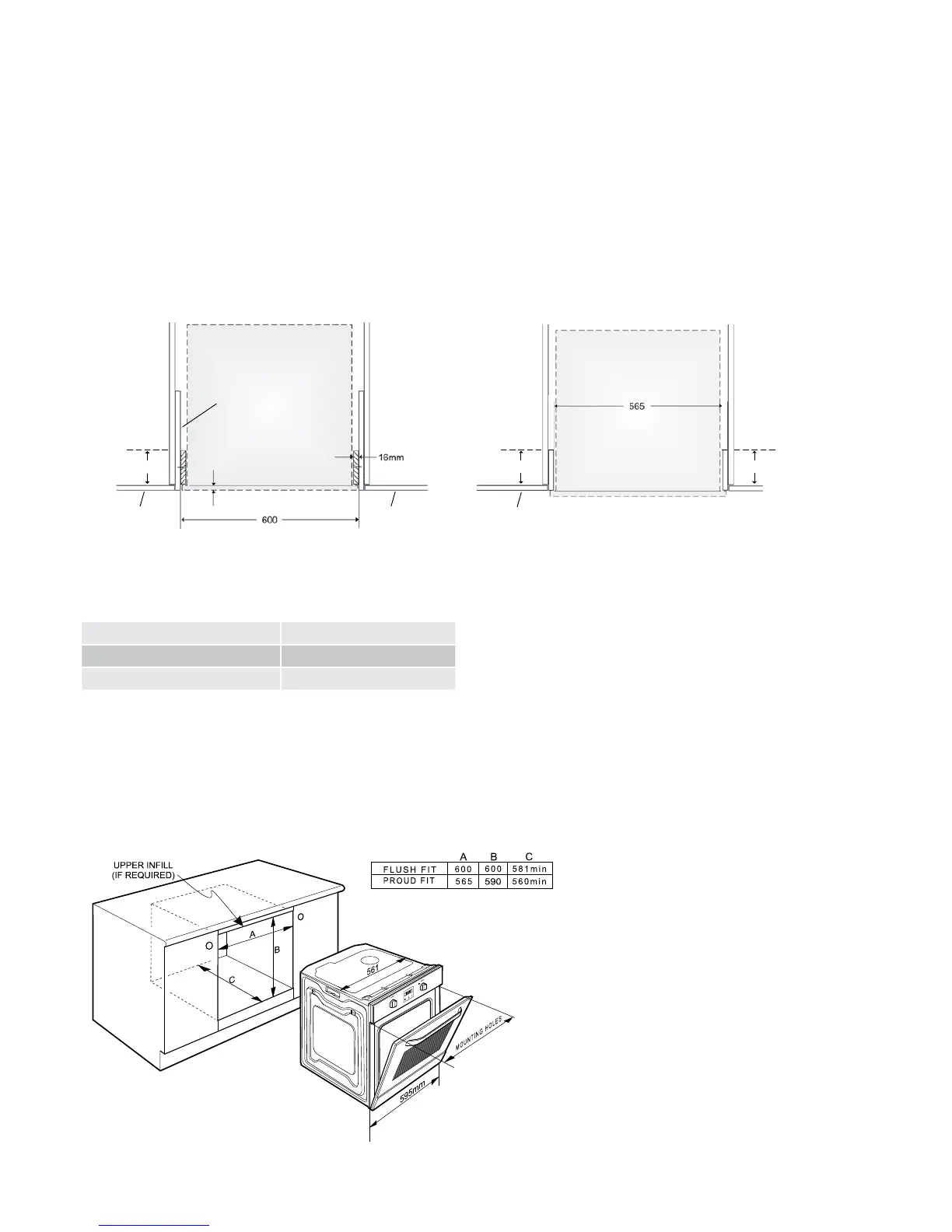

Figure A – Flush fit (top view) Figure B – Proud fit (top view)
Underbench Oven 595 x 595 x 567mm (HxWxD)
Separate Grill Underbench Oven 725 x 595 x 567mm (HxWxD)
Separate Grill Wall Oven 888 x 595 x 567mm (HxWxD)
Cleat
Figure A – Flush fit (top view)
Figure B – Proud fit (top view)
Cupboard
door
Cupboard
door
Infill panel
Cupboard front
20mm
100mm max
100mm max 100mm max
Cleat
Figure A – Flush fit (top view)
Figure B – Proud fit (top view)
Cupboard
door
Cupboard
door
Infill panel
Cupboard front
20mm
100mm max
100mm max 100mm max
NOTE: If a powerpoint is fitted it must be
accessible with the appliance installed.
