Built-in Cooking INSTALLATION 25
installation

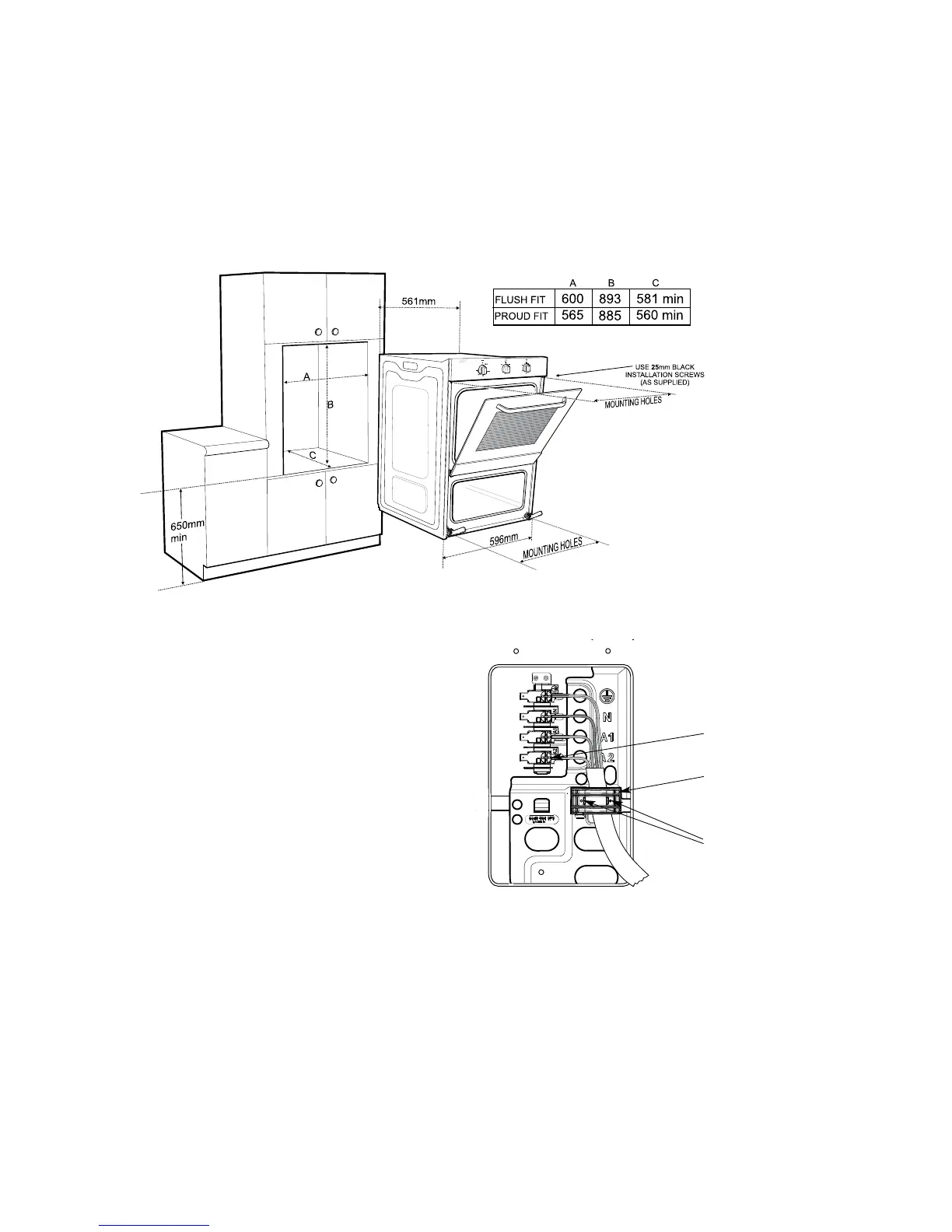

Separate Grill Wall Ovens
Hard Wiring Detail
1. Remove terminal cover plate from rear panel of appliance.
2. Fit wires through hole in cover plate and make connections
to terminals.
3. Engage wires into plastic clip. Secure plastic clip with two
long silver screws (supplied in separate bag).
4. Replace cover plate onto rear panel.
Plastic clip
securing points.
Plastic clips
Second active wire only
required (optional) for
multi-phase products.
