24 INSTALLATION Built-in Cooking
Separate Grill Underbench Ovens

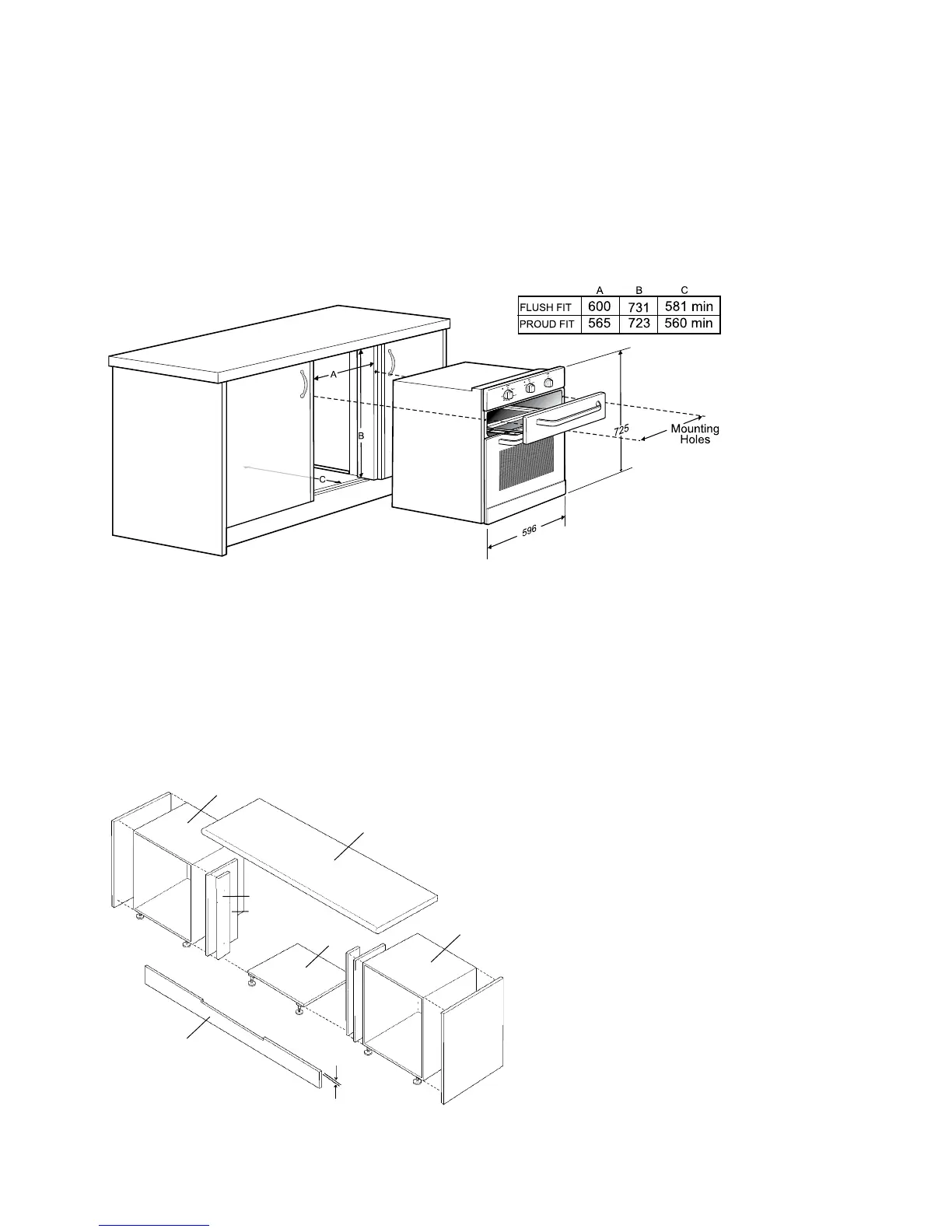

Recommended Cabinet Design
NOTETOINSTALLER:ForSeparateGrillUnderbench
InstallationswhereaCooktopisinstalleddirectlyabovethe
appliance,aminimumclearancedistanceof10mmmustbe
allowedforbetweenthebottomofthecooktopandthetop
oftheSeparateGrillUnderbenchOven.
720mm Module(s)
Bench top
720mm Module(s)
Kick Panel
Infill panel (2)
Cleat (2)
Cooker
platform
8mm
Supporting shelf 8mm below door line
to give perfect alignment of cooker
& cupboard (kickboard notched to suit).
