Electrolux EUCAIWHGUK User Manual

DOC. NO. 5956.65J.00 P. 165 / 174
EFS - Dishwashing Systems Platform
Electrolux Professional
KEY
CN1 Rinse pump/wash pump/solenoid valve outputs
CN2 Pressure/atmospheric dishwasher solenoid valve connection
CN3 Detergent/rinse aid dispenser and drain pump outputs
CN5 Tank/boiler temperature sensor inputs
CN8 Energy peak controller input
CN9 Salt receptacle drain pump and low pressure solenoid valve outputs
CN11 Brine solenoid valve output
CN12 User interface inputs/outputs
CN15 Overflow/tank level/board feed input
CN16 User interface inputs/outputs and hood/door sensor input
CN17 Door microswitch connection

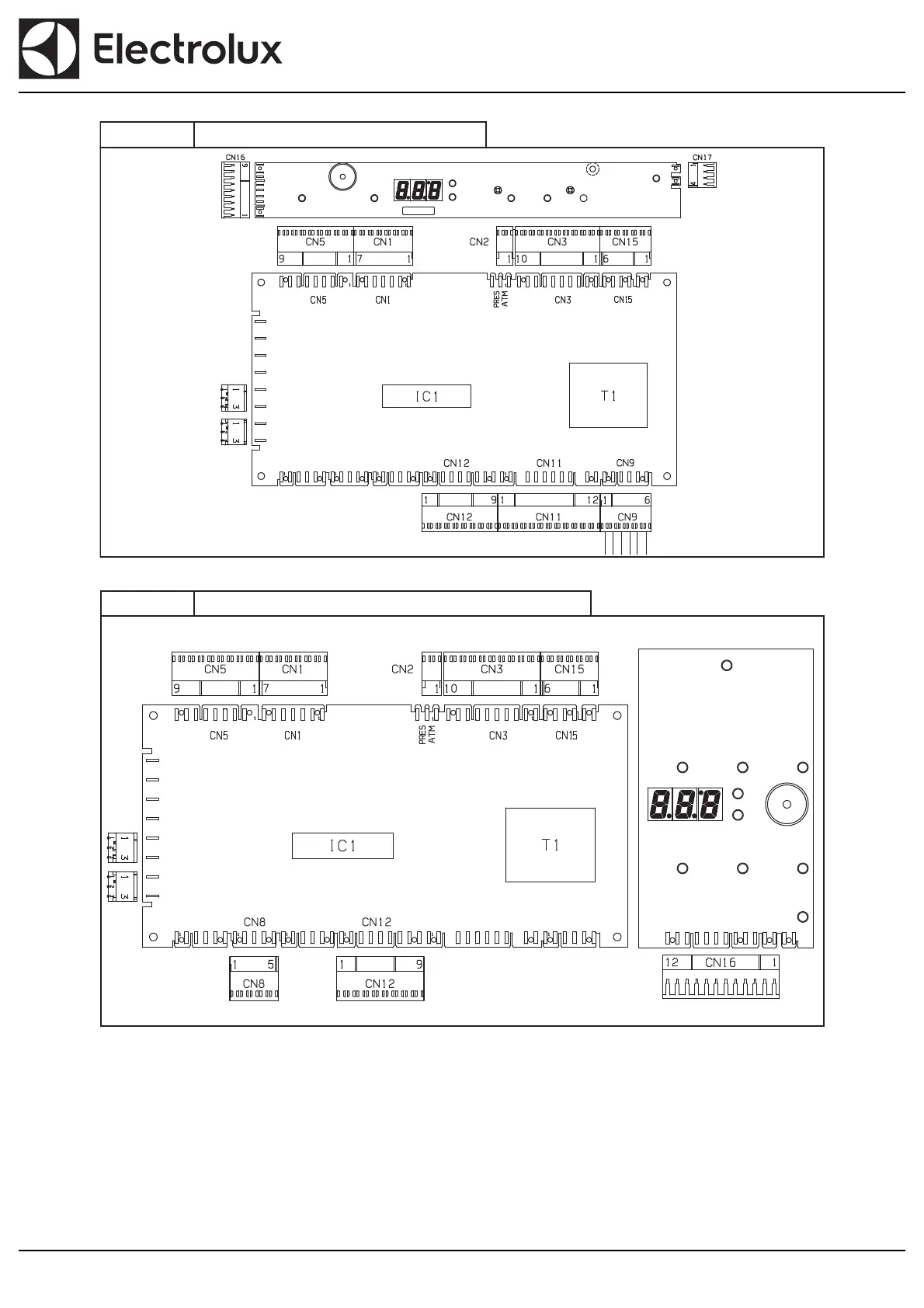

LAYOUT 21 NUC1WS / EUC1WS
LAYOUT 23
NHTG / EHTG / ZHTAROW / EHTAROW / ZHTAO / EHTAO
