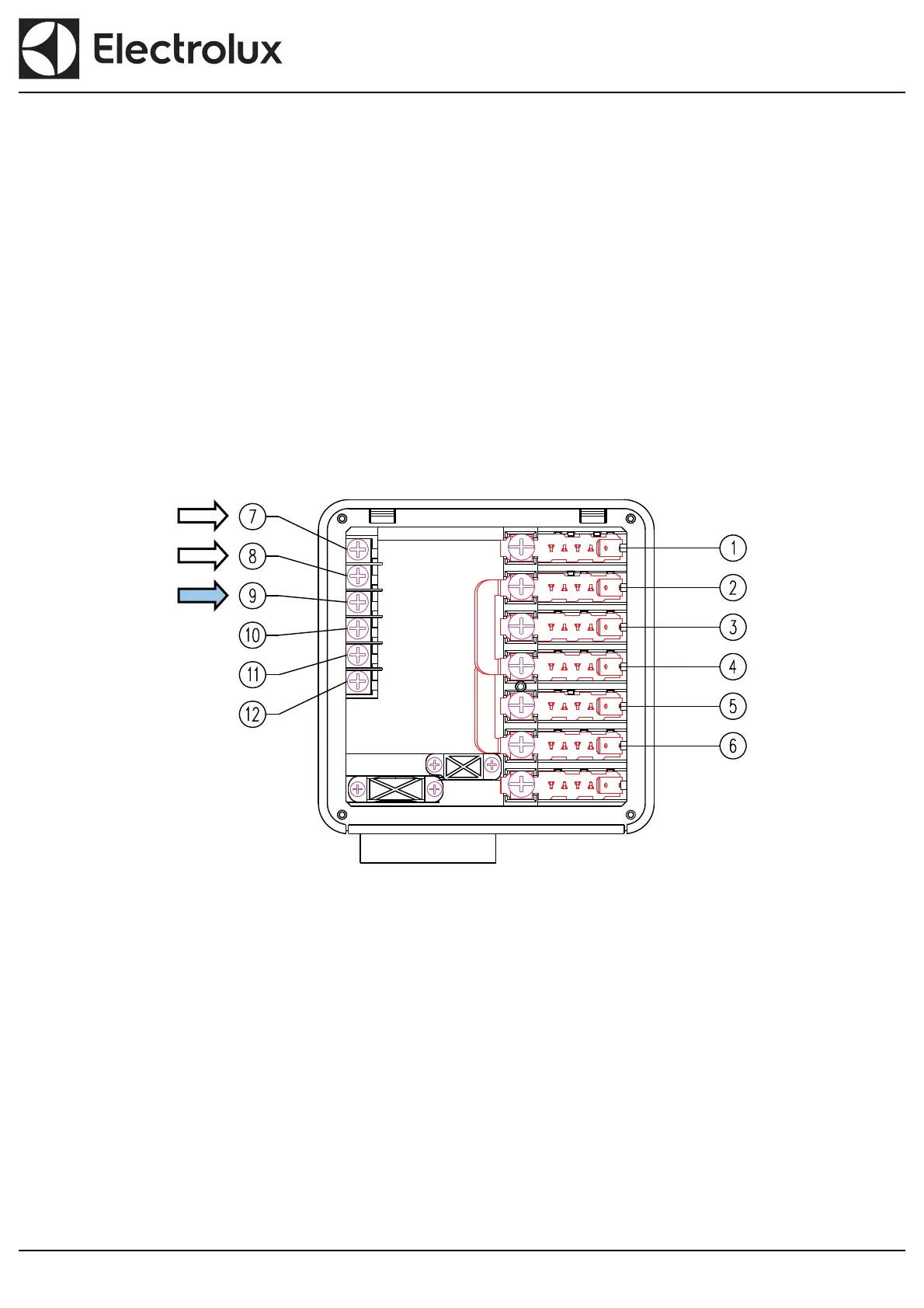

(*) Note for external dispensers:
•if the detergent dispenser works when WASHING PUMP is being activated; at the
same time voltage is supplied between connectors L1
7
–L1
9
(main terminal box);
•if
 the detergent dispenser works when LOADING EV is being activated to re-fill boiler
level; at the same time voltage is supplied between connectors L1
7
–L1
9
(main ter-
minal box);
•if
 the rinse aid dispenser works when LOADING EV is being activated to re-fill boiler
level; at the same time voltage is supplied between connectors L1
8
–L1
9
(main ter-
minal box);
•if
 the rinse aid dispenser works when WASHING PUMP is being activated; at the
same time voltage is supplied between connectors L1
8
–L1
9
(main terminal box);
- For electrical connections refer to electric diagram -
Example
Suppose there is connected an external detergent dispenser with a probe into the tank. A typical setting
could be:
 the dispenser is not activated during filling tank;
 the dispenser is supplied during washing phase and the probe automatically dose the right
detergent amount.
