7. Technical characteristics
7.1 EWM1000 Plus Electronic control
7.1.1 Functions of the circuit board
The EWM1000 PLUS electronic control consists of a main PCB
and a control/display board.
The circuit board receives signals relative to the cycle settings via
the control/display board. The buttons, the LEDs and the display
are also mounted on this board which is connected to the
programme selector.
The board also powers all the electrical components (solenoid
valves, washing motor, drain pump, heating element, door
interlock).
The board controls the temperature of the washing water via an
NTC sensor, as well as the speed of rotation of the washing pump
according to the signal received from the tachymetric generator.
It checks the water level in tub via the level pressure switch and the
safety one.
As sparepart there is a configured main PCB available.
The sparepartnumber ist listed in the sparepartlist.

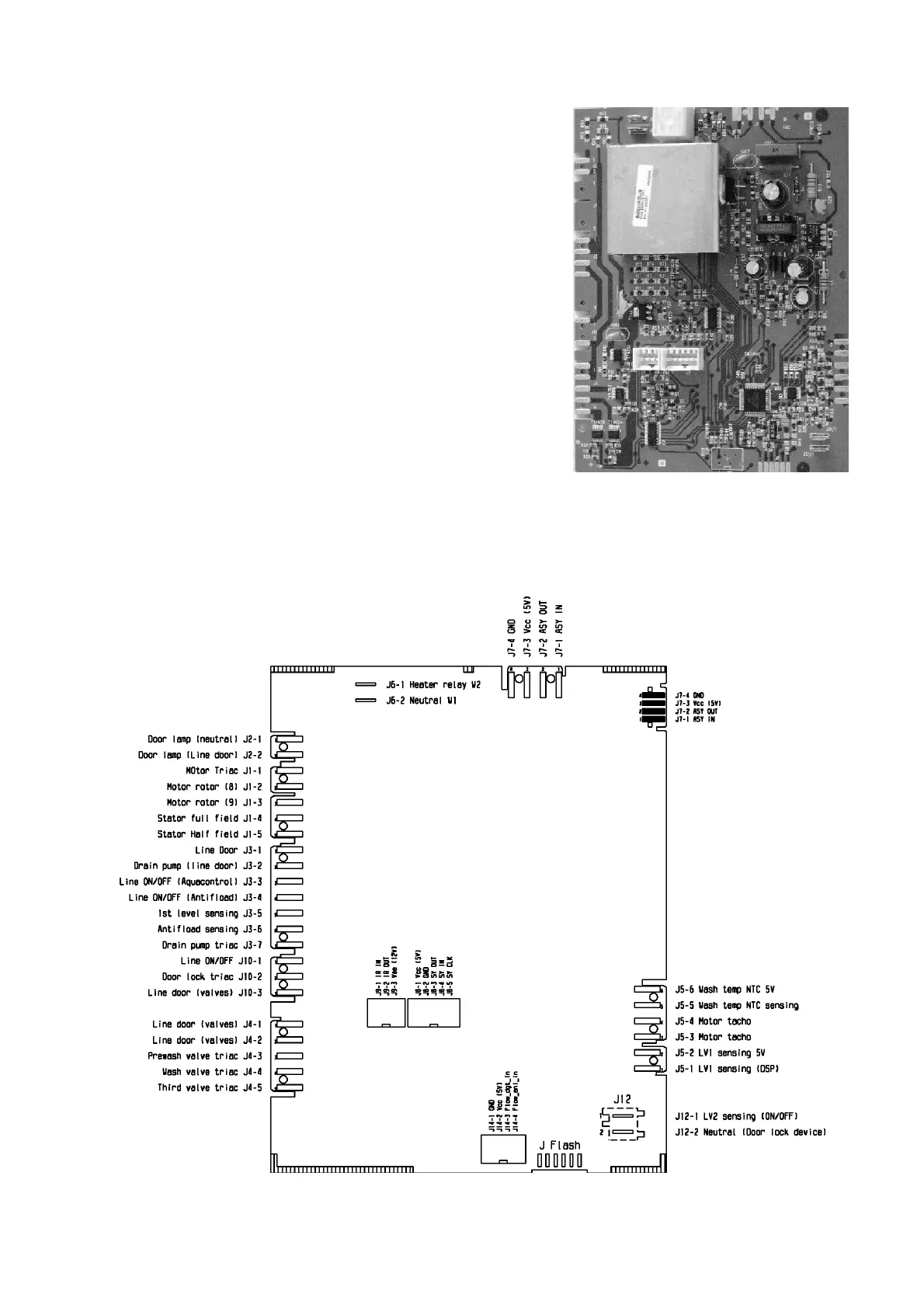

7.1.2 Contacts of the circuit board
