Service
Manual
9406
Description
The detergent container has three compartments
• compartment 1 for detergent (prewash)
• compartment 2 for detergent (main wash)
• compartment 3 for conditioner
The container is fitted with nozzles coupled to the
inlet valves. These ensures that the detergent
dissolves properly in the water, as well as flushing
the container clean.
A water-filling line runs from the bottom of the
container down to the drain valve riser. This
ensures a favourable flow to the washing, while
also stopping any fumes from the detergent
solution from rising up into the detergent container.
The lid of the container is made of rubber, has a
simple and robust design, and is bolted to the top
panel of the machine.
A siphon device in the fabric conditioner
compartment makes sure that it is completely
emptied, and that no conditioner remains behind.
Repair instructions
When replacing the container, holes should be
drilled for the connections on the nozzles according
to the connection alternative chosen.

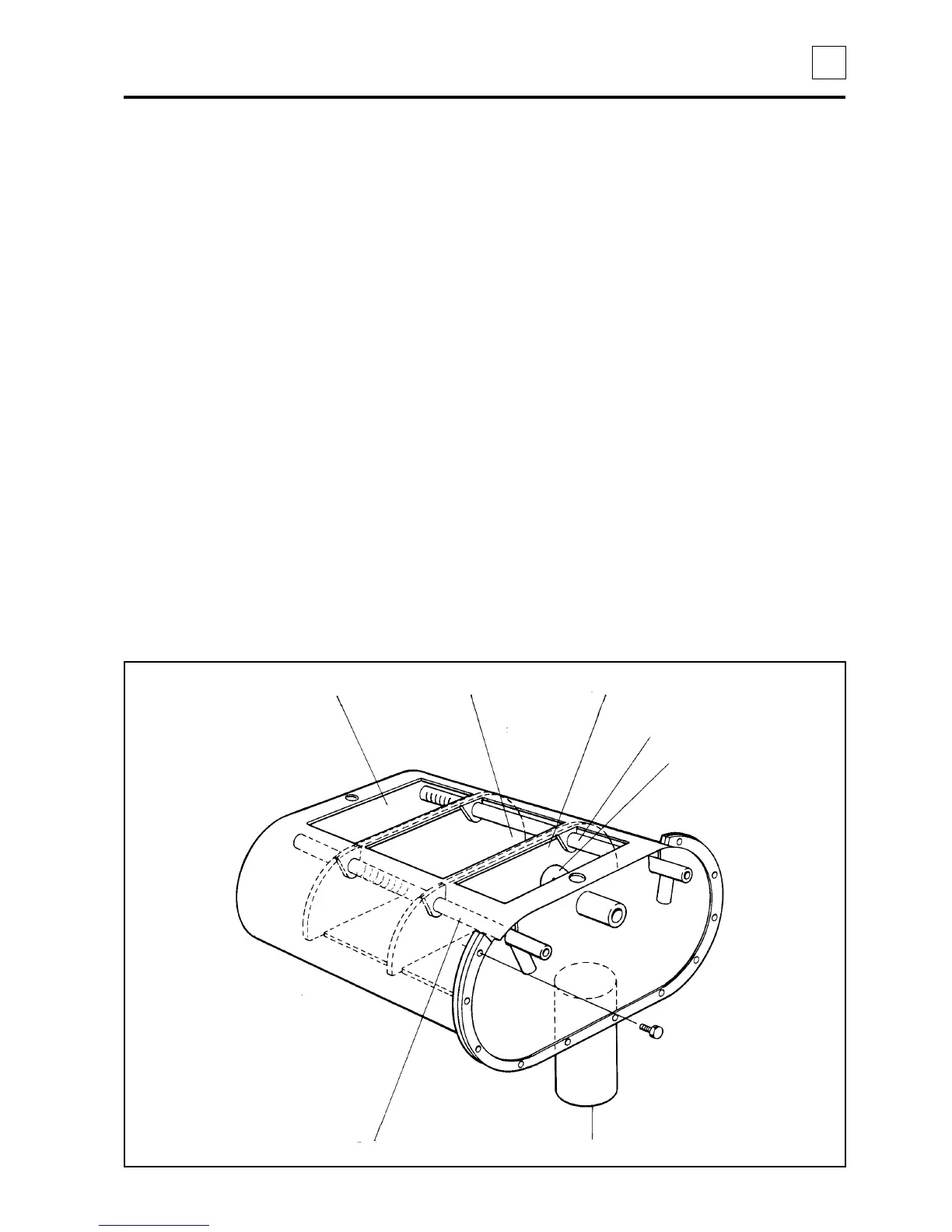

39. Detergent compartment
39
1
Nozzles
Siphon device
Nozzles
Hose to drain valve
riser
Compartment 1
Prewash
Compartment 2
Main wash
Compartment 3
Fabric conditioner
