Service
Manual
9406
Description
The frame is constructed on the free-swinging principle, i.e.
the washing drum is freely and resiliently suspended in the
fixed frame.
The entire frame is constructed of bent sheet metal and
aluminium sections forming a stable and torsionally rigid
structure.
The suspension device for the drum unit and motors consists
of four posts, one in each corner, each with a robust spring in
which the washing drum supports are attached. In order to
prevent excessibely great vibrations which can be caused by
imbalance in the drum, a shock absorber is fitted between
the drum and frame by each spring. (The 120 litre model has
twin shock absorbers at the front).
Repair instructions
The spin cutout is repeatedly triggered
• Check the shock absorbers, replace them if required. Note
that the shock absorbers should be fitted with the pluger
rod upwards.
• Check the attachment of the springs:
– on the 60 litre model the mounting bolt should protrude
above the mounting nut by the height of the nut.
– on the 120 litre model the spring is attached by a bolt
from above.
Check that it has been properly tightened down. The entire
spring unit should be replaced in spring replacement.

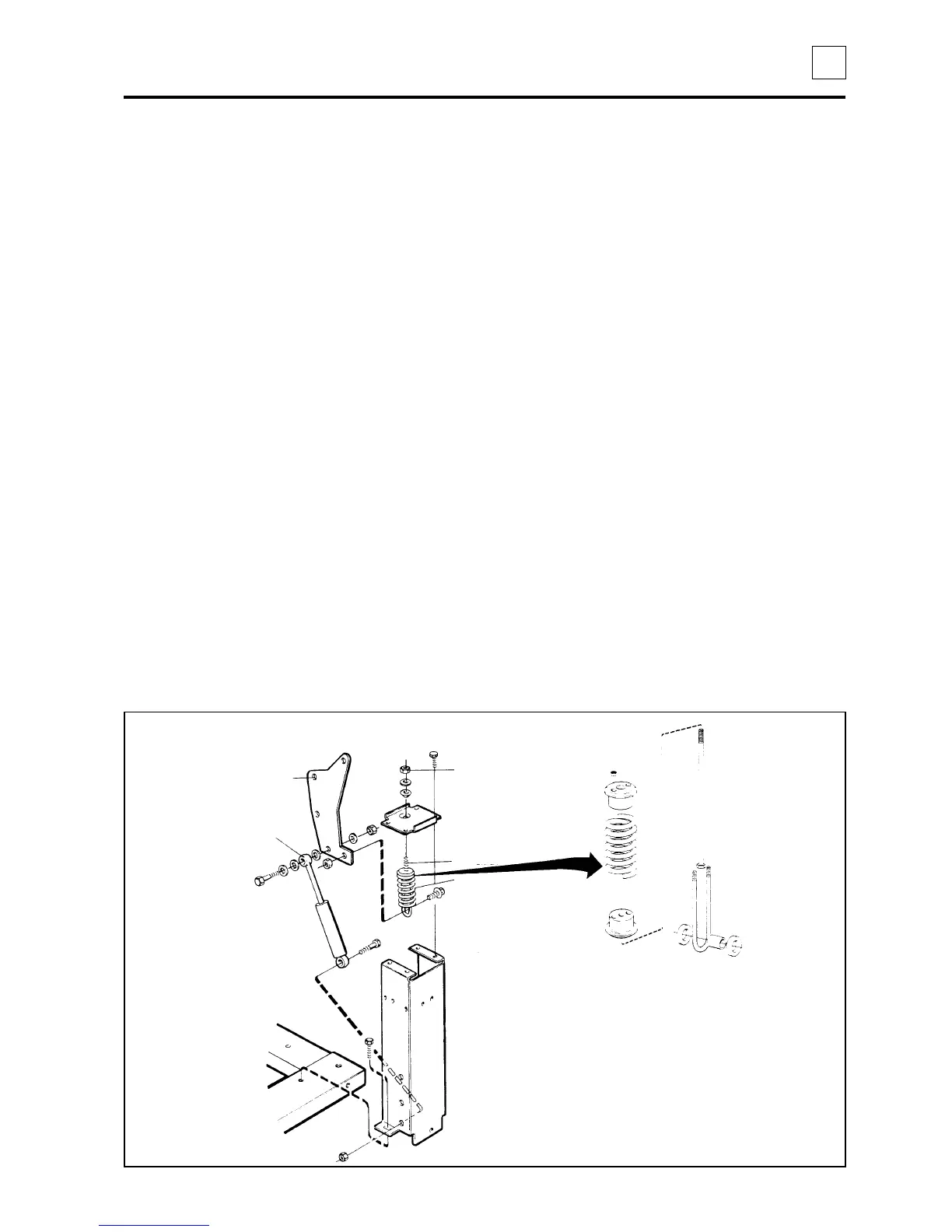

43. Frame
1
Mounting screw
Mounting nut
Spring unit
Complete spring
unit assembly
43
Wash drum support
Shock absorber
Suspension device
