7. Pull the top forward and up.

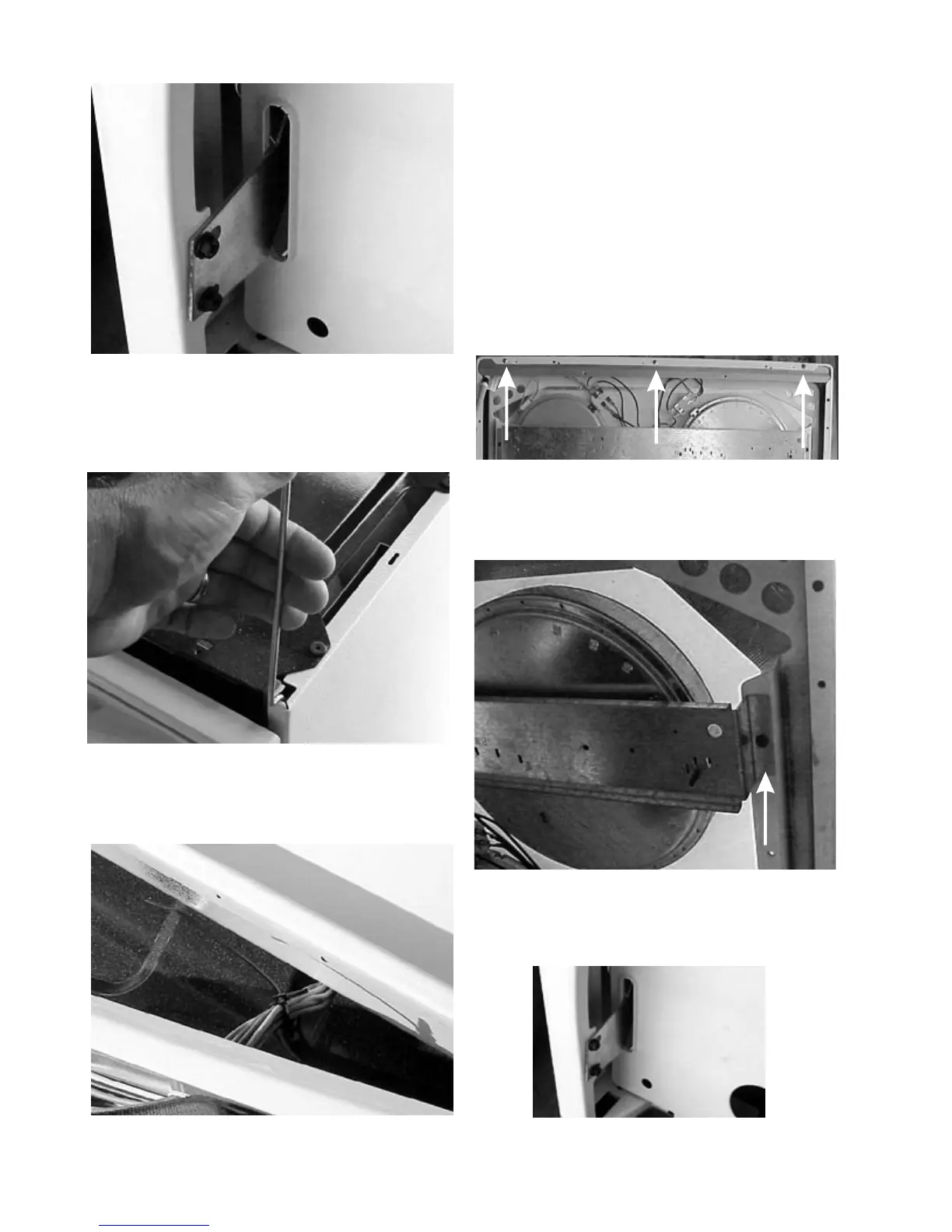

To remove the main top on smooth top ranges:
1. Disconnect power from the range.
2. Remove the back panel from the backguard.
3. Open the oven door and remove the two phillips
screws holding the main top to the front frame and
raise the main top.
4. Remove the fill strip from the front edge of the main
top by removing three screws.
Three filler screws
5. Remove the screw from the ends of the element
support bar and allow the element to drop down.
Bar screw
6. Remove the four hinge screws, lift up on the
front of the main top and pull forward.
Hinge screws
Hinge screws
5. Raise the front of the main top, disengage the lift
and lock rods, and pull the main top forward.
Lift and lock rod
6. Disconnect the wire tie from the rear of the main top
by squeezing the tabs of the rivet.
Wire tie
