76

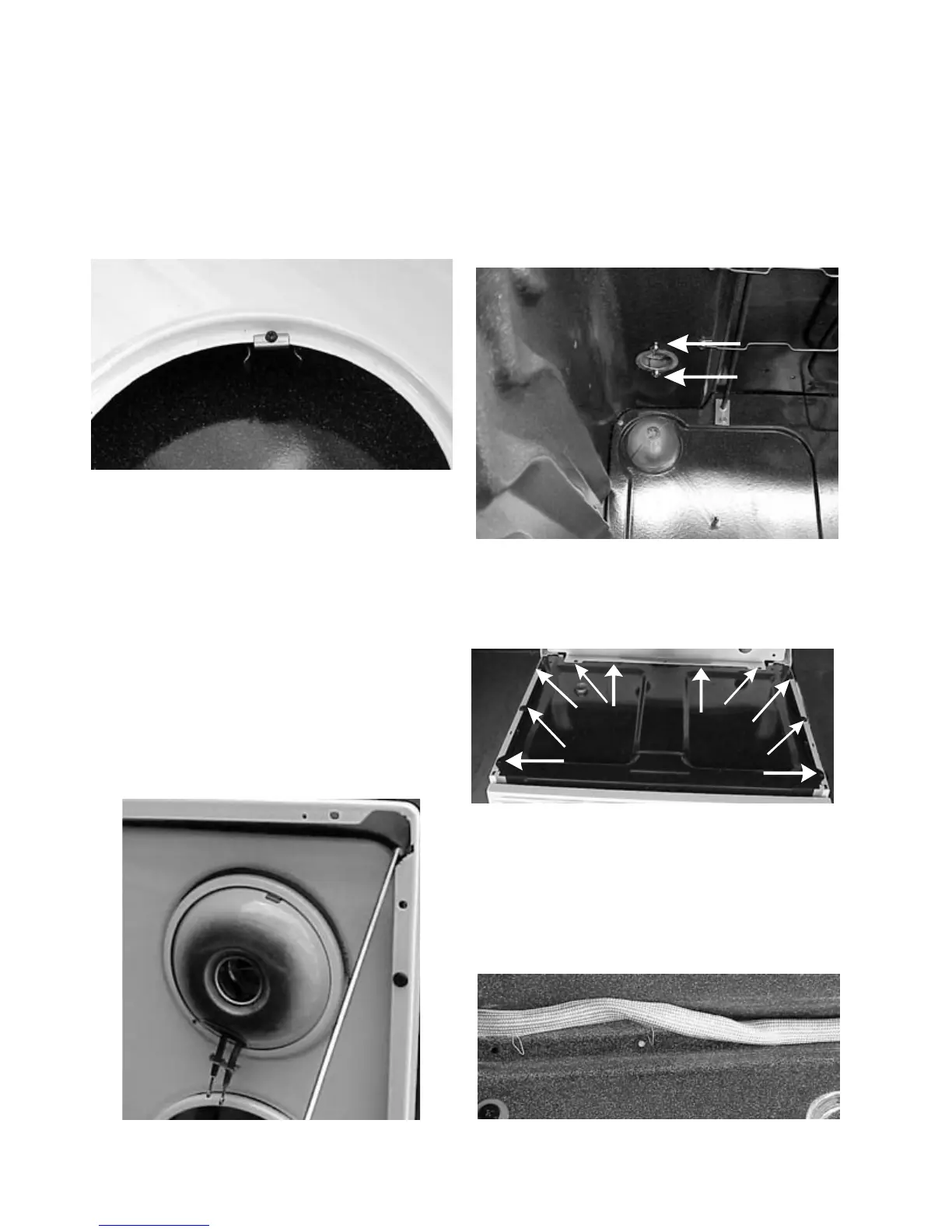

To remove burner pan (coil element ranges only):
1. Disconnect power from the range.
2. Remove main top. (See main top removal)
3. Remove the oven vent by removing two screws
inside the oven holding the oven vent to the oven
liner.
Two oven vent screws
4. Remove the ten screws holding the burner pan to
the side panels and the back panel, and slide the
burner pan forward.
10 burner pan screws
Oven Door
To remove oven door seal:
1. The oven door seal is snapped to the inner door with
wire clips. To remove the seal pull up on the seal.
Door seal and clips
To remove and replace terminal blocks for coil
elements:
1. Disconnect power from the range.
2. Remove element and drip pan.
3. Unfasten the terminal block from the main top by
removing one screw.
Terminal block screw
4. The replacement terminal block will come as a kit.
The terminal block in the kit will have wires about 4”
long and wire nuts.
5. Pull the terminal block into the element opening and
cut and splice the wires.
To remove the lift and lock rods:
1. Lift the top and disengage the lift and lock rod from
the side panel.
2. Remove the one screw holding the lift and lock rod
to the main top.
Lift and lock rod screw
