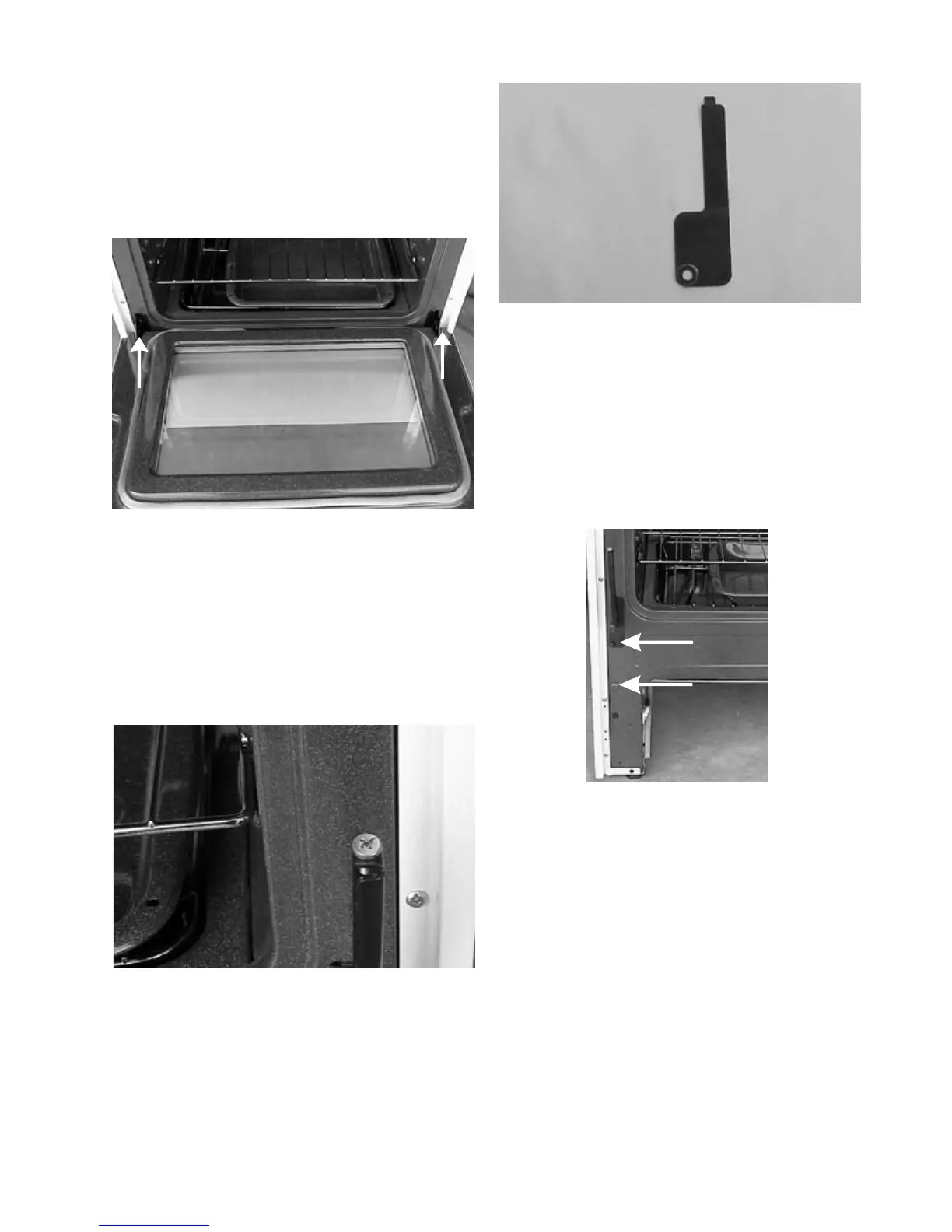

To remove oven door:
1. The oven door is held to the oven door hinges by two
screws. (One in each hinge.)
2. To remove the oven door remove the two screws.
Two screws
3. Close the door to the broil stop position and lift up.
Door hinge adjustment:
1. Each side of the door may be raised by
adjusting the screw in the end of each hinge.
Adjustment screw
Removal of the hinge opening cover:
1. The top of the hinge opening cover is tabbed and is
slid behind the front frame. The bottom of the hinge
opening is held to the front frame by the top hinge
screw.
Hinge cover
Door hinge removal:
NOTE: Left and right door hinges are separate
parts. They are not identical.
1. Remove the two screws holding the hinge to the
front frame.
Hinge screws
2. Collapse the hinge, push down and tip the bottom of
the hinge toward the back of the range.
3. When the top of the inner hinge goes below the
opening in the front frame, pull the hinge out.
Oven Door Disassembly
Removing the upper door trim:
1. Remove the oven door and lay it on a flat surface.
2. Remove the two screws holding the trim to the inner
liner.
3. Slide the trim off the top of the door.
