Electrolux t4130c - Page 27

x = m3/h
Y = Pa
100
200
0
0
50
100
150
200
250
300
x = m3/h
Y = Pa
100
200
0
0
50
100
150
200
250
300
27
Optimizing the air flow
Service
manual
X = Air consumption
Y = Back pressure
The grey area marks the recommended working area.

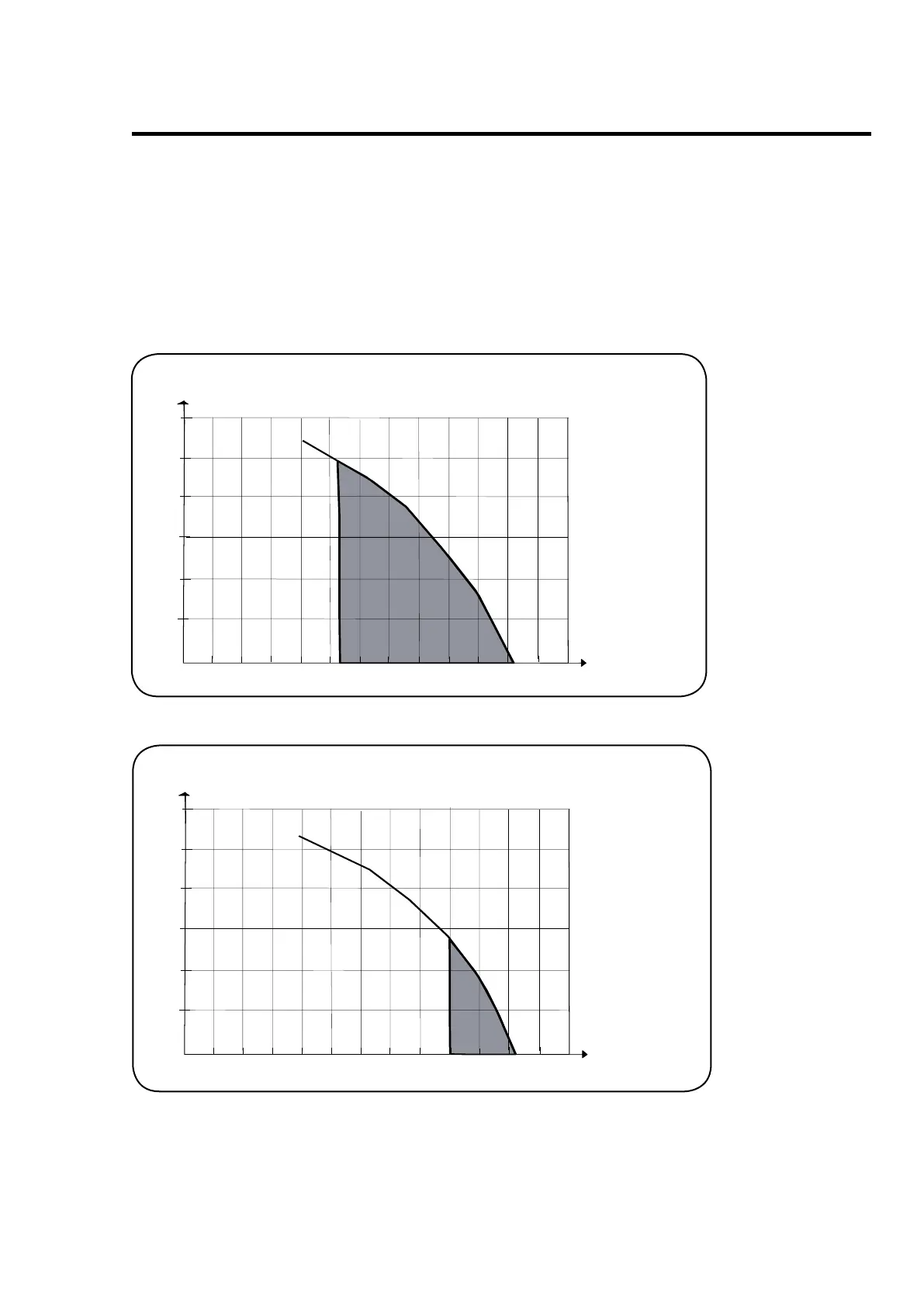

Diagram with pressure drop curve type T4130.
T4130: 3.2 kW
T4130: 5.1 kW
