Electrolux t4130c - Condensate Dryer Fan Motor

Motor and transmission
Service
manual
46
1
2
3
Fan motor, Condensate tumble dryer

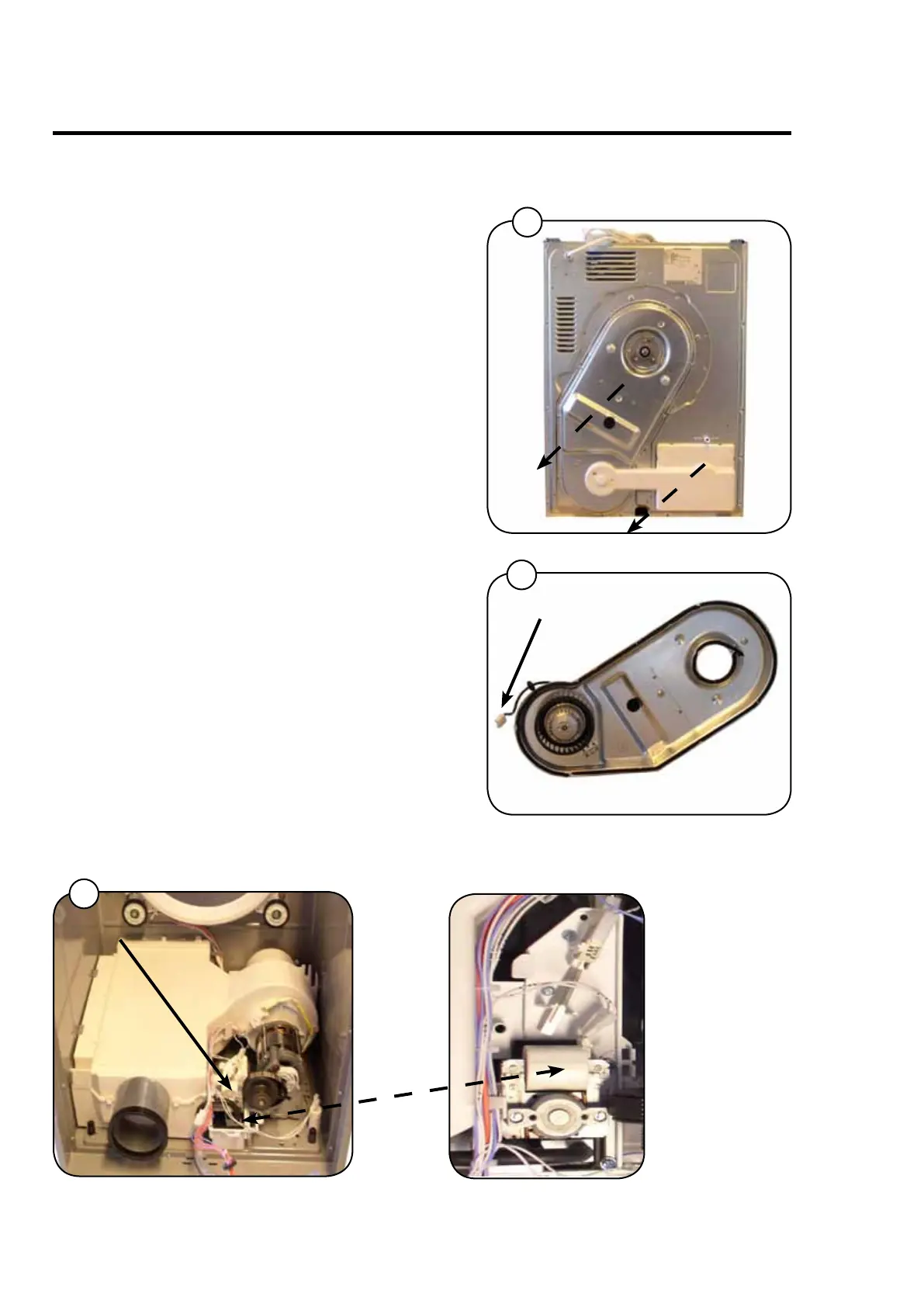

Access to replacing the fan motor is gained by
removing:
• The heat shield.
• The plastic screen, fig. 1.
• The cover on the heat duct.
• The multi-plug, fig. 2.
Pump
Description:
The pump is activated at intervals of 2
minutes for the purpose of emptying the
condensate container.
Each active pumping period lasts 15 seconds.
Replacement:
Replacement/repair of the pump can be
carried out after disassembling the tumble
dryer, fig. 3.
See section "Disassembling the dryer"
.
Check of functions can be done at
service mode.
Fan motor
