Motor and transmission
Service
manual
Replacing parts on transmission
1. Disconnect the power supply to
the dryer.
2. Dismount drum belt and motor.

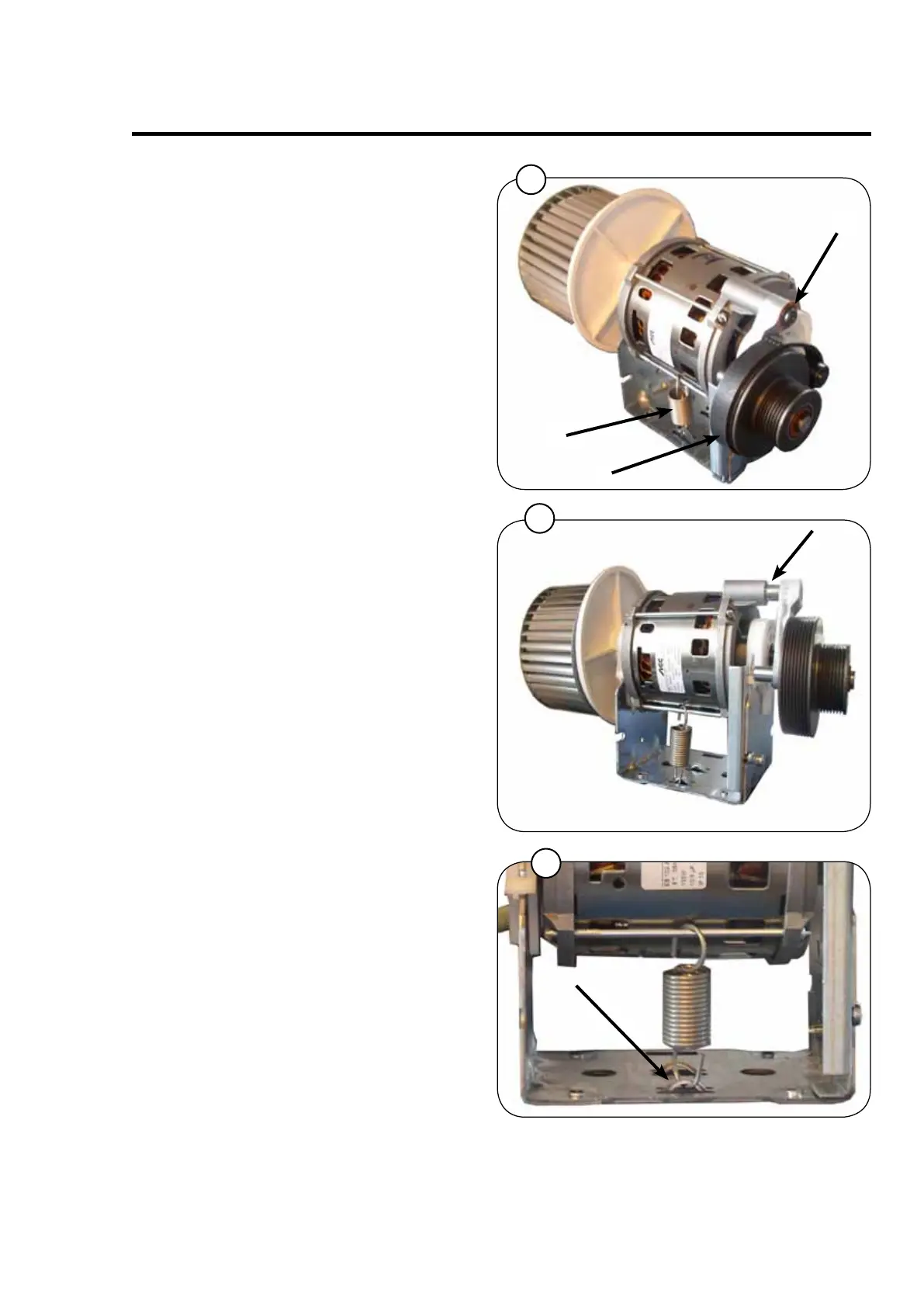

3. Fig. 1. Dismount spring B.
4. Fig. 1. Dismount transmission belt C.
5. Fig. 1. Dismount snap ring D,
washer and arm with idler.
6. Mount new arm with idler by turning
it back and forth, lubricate the shaft
end with copper grease.
Do not hit or use excessive force
on the arm!
7. Mount snap ring D.
8. Mount transmission belt C.
9. Fig. 3. Mount new spring. It is
important that the spring is mounted
on the outer hoop at the bottom.
10. Mount the complete motor.
11. Mount drum belt.
12. Assemble the dryer and test it.
13. Check that the belts go correctly
around the wheel.
1
B
C
D
2
3
