Drum with bearing
Service
manual
52
Description:
The drum is suspended at the back in a
bearing mounted in the rear plate.
At the front the drum rests on two bearing
rollers. See the section "Diassembling the
dryer".
Replacement:

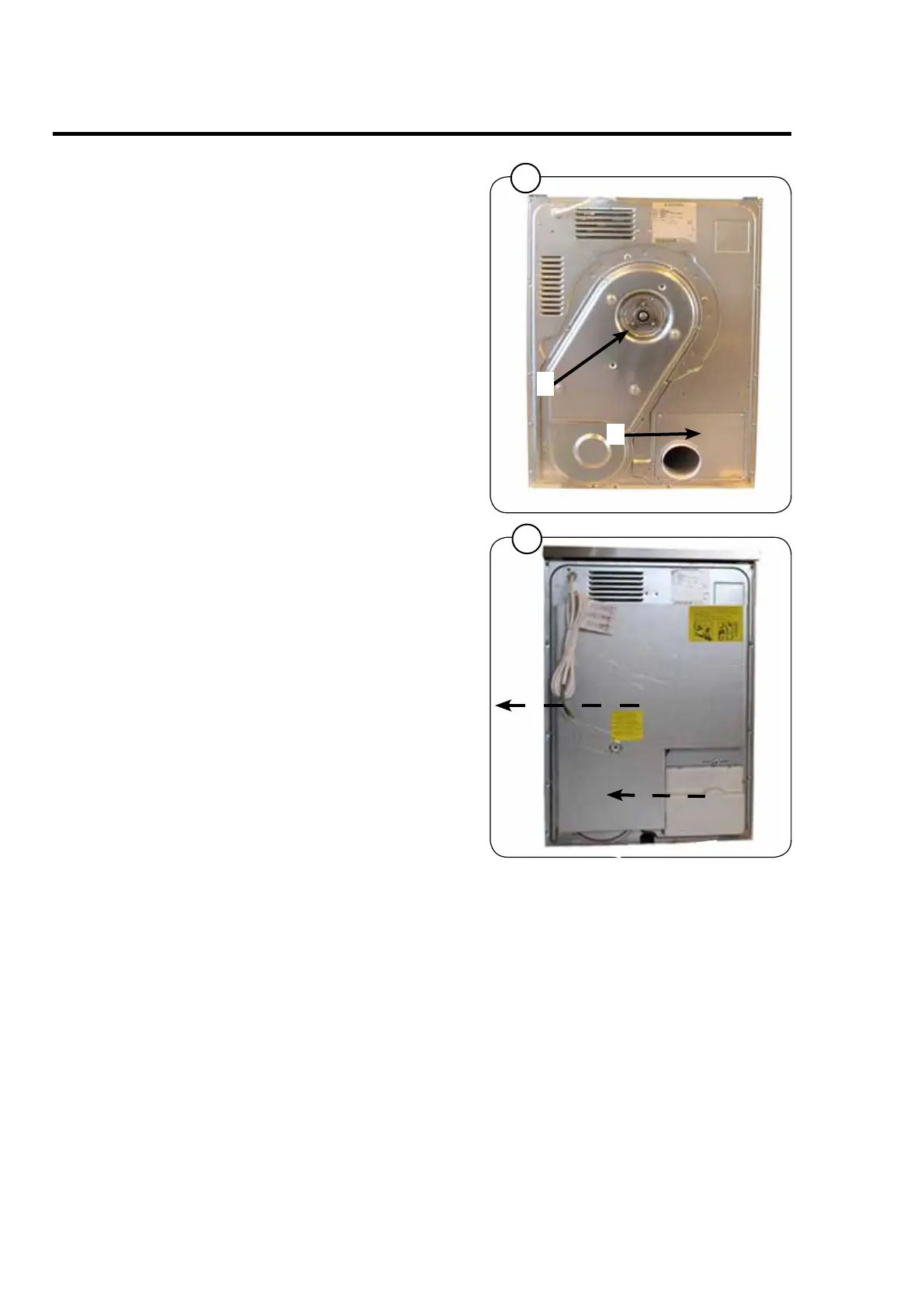

Replacement of rear bearing (bearing
housing) can be done without disassembling
the tumble dryer, fig. 1.
Standard dryer.
1. Dismount the heat shield.
2. Unscrew the back cover A.
3. Loosen the drive belt on the drum from
the motor.
4. Unscrew the three screws B and the
nut on drum shaft and take out the
bearing and replace it with the new
bearing.
Condensate dryer
1. Dismount the heat shield, fig. 2.
2. Dismount the plastic cover and unplug the
plug to the fan motor.
3. Loosen the drive belt on the drum from
the motor.
4. Unscrew the three screws B and the
nut on drum shaft and take out the
bearing and replace it with the new
bearing, fig. 1.
1
2
A
B
