Electrolux W3 SERIES Installation Manual

10
Installation manual

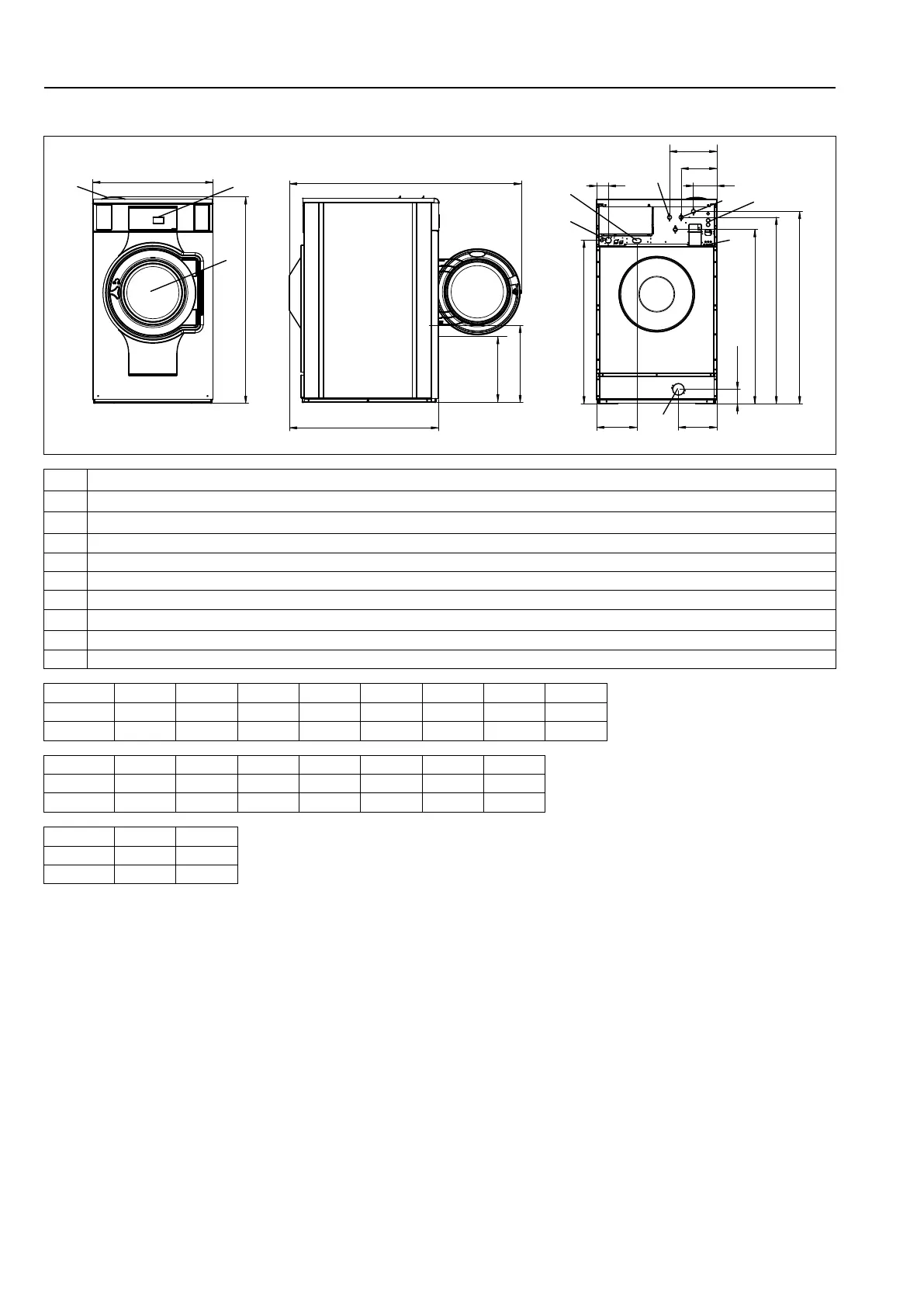

2.1.4 W5250N, W5330N
3
A
1
2
C
I
J
PG
5
4
6
8
H
L
K
N
7
M
O
F
9
10
E
D2
B
D1
fig.8033
1 Operating panel
2 Door opening, W5250N, W5330N: ⌀ 435 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
W5250N 830 1029 1426 468 532 1599 1129 80
W5330N 910 1114 1465 504 568 1686 1168 80
mm
H I J K L M N
W5250N 1328 327 247 1288 1203 278 100
W5330N 1367 347 247 1327 1247 278 104
mm
O P
W5250N 265 162
W5330N 209 162
