Installation manual
7
2 Technical data

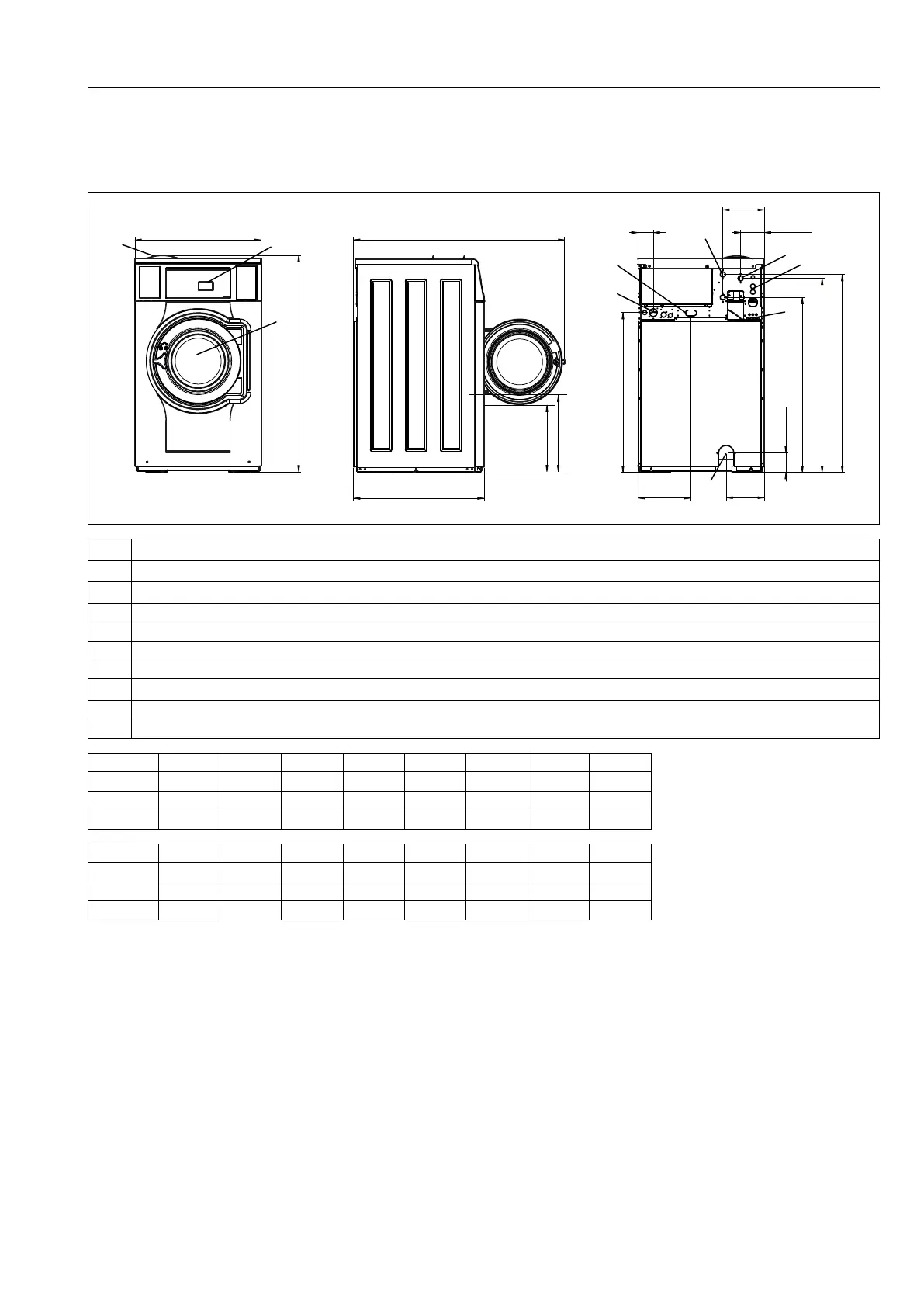

2.1 Drawing
2.1.1 W575N, W585N, W5105N
A
1
C
2
3
H
L
K
I
JG
6
4
9
10
F
M
O
7
N
8
5
E
B
D2
D1
fig.8030
1 Operating panel
2 Door opening, W575N, W585N: ⌀ 310 mm, W5105N: ⌀ 365 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
W575N 660 681 1131 356 409 1099 835 80
W585N 660 722 1133 357 410 1153 836 80
W5105N 720 697 1217 367 424 1187 920 80
mm
H I J K L M N O
W575N 1034 217 124 1014 914 278 101 199
W585N 1035 217 124 1015 915 278 103 199
W5105N 1119 217 124 1099 999 278 105 212
