Installation
manual
13
3.2
Siting
Install
the
machine
close
to
a
floor
drain
or
open
drain.
The
machine
should
be
positioned
so
that
there
is
plenty
of
room
for
working,
both
for
the
user
and
service
personnel.

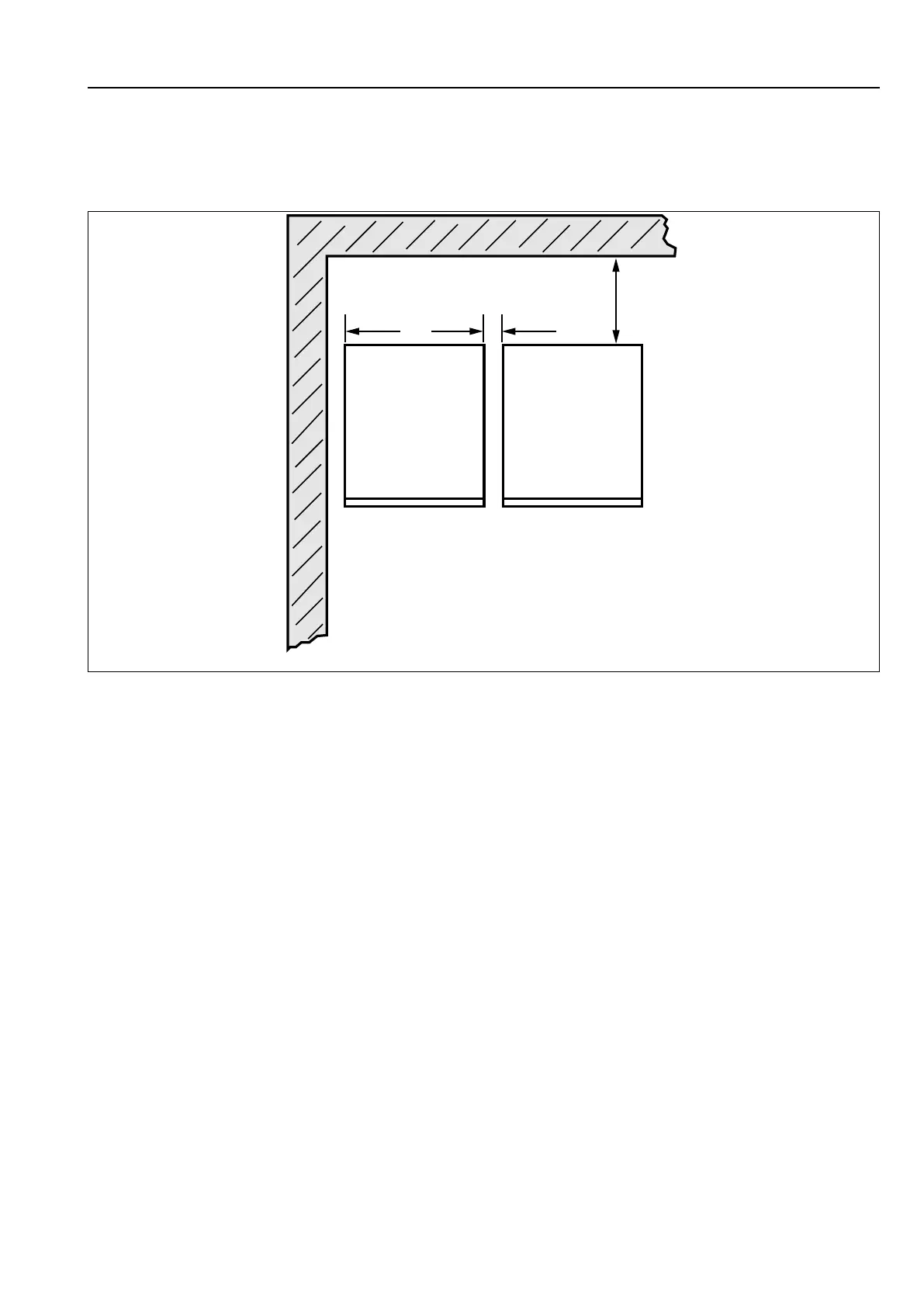

The
figure
shows
minimum
distance
to
a
wall
and/or
other
machines.
500 mm /
20 inch
25 mm /
1 inch
25 mm /
1 inch
fig.W00176D
12
14
