Installation
manual
35
8.4.3
Central
payment
(2C)
The
central
payment
or
booking
system
shall
transmit
an
active
(high)
signal
to
the
machine
once
permission
has
been
granted
to
start
the
machine.
The
signal
must
remain
active
(high)
until
the
machine
starts.
A
feedback
signal
will
be
present
on
connection
18
and
remain
active
(high)
whilst
the
machine
door
is
closed
but
the
program
has
not
started.
The
feedback
signal
is
powered
by
230V
or
24V
from
connection
19.

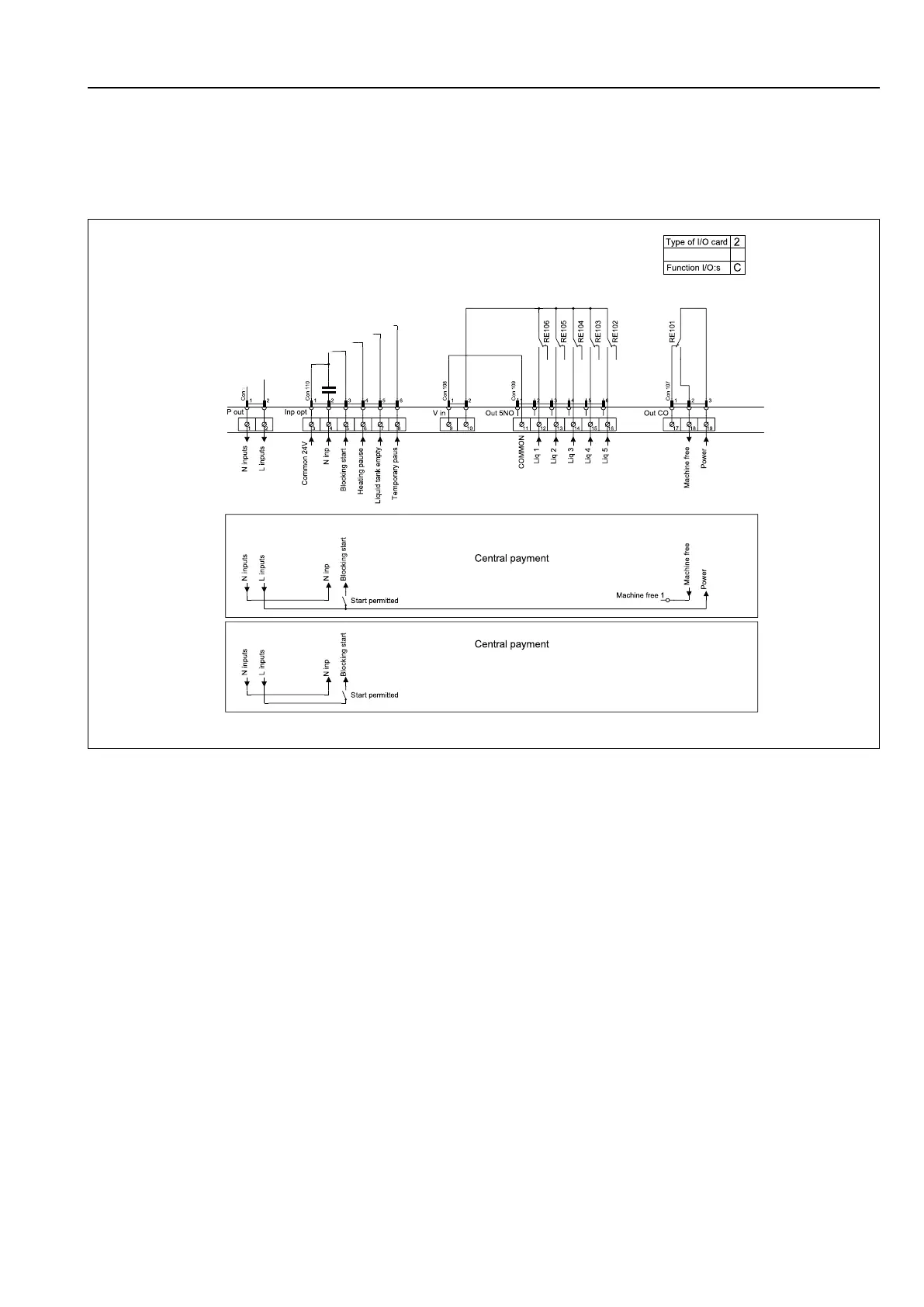

fig.6313A
