Installation manual
3.3 Mechanical installation
If the machine is not to be mounted on a base the machine must be fastened to the floor with the enclosed M16 bolts.

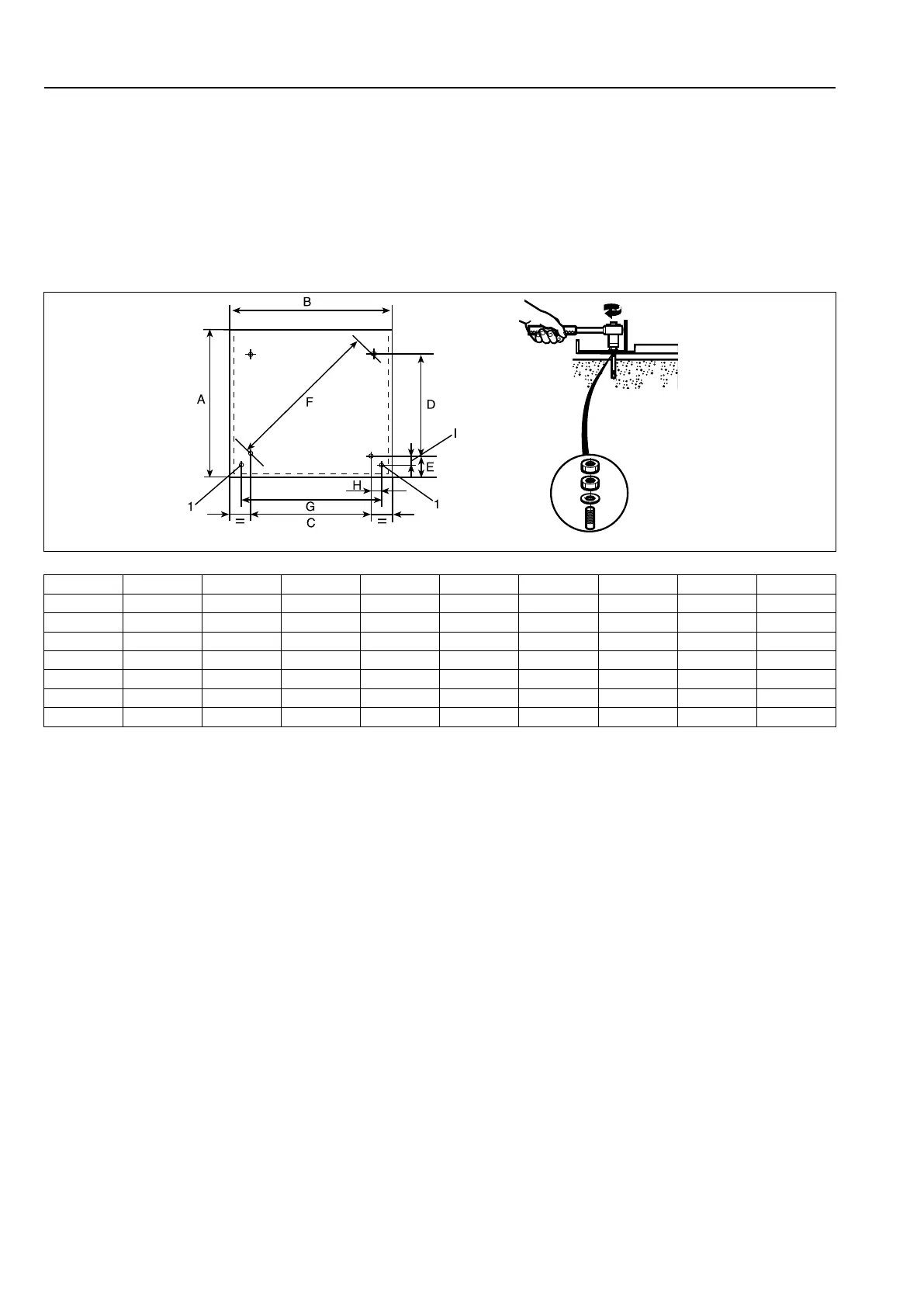

The table shows the correct drilling points.
Mark and drill four holes for the M16 bolts in the positions shown.
Note!
For W5330N two expansion bolts (1) MUST also be fitted to the front section of the machine. If not, large vi-
brations in the machine cabinet may occur.
Mark and drill two holes (⌀ 10 mm) about 40 mm deep (1) for the expansion bolts in the positions shown.
fig.5989B
mm
A B C D E F G H I
W575N 685 660 495 395 115 635
— — —
W585N 725 660 495 445 115 665
— — —
W5105N 700 720 575 385 120 695
— — —
W5130N 785 720 575 495 120 760
— — —
W5180N 875 750 635 570 120 855
— — —
W5250N 950 830 715 635 125 955
— — —
W5330N 1035 910 790 695 135 1050 810 10 95
After the machine has been placed over the other four bolts, place the two spacer washers over the two holes. They
shall be placed between the machine and foundation.
Insert the expansion bolts (1) into the holes drilled in the floor. Fit the washers and nuts and tighten well. Lock with
the contra nuts.
