Installation manual
4.3 Mechanical installation
If the machine is not to be mounted on a base the machine must be fastened to the floor with the enclosed expansion
bolts.

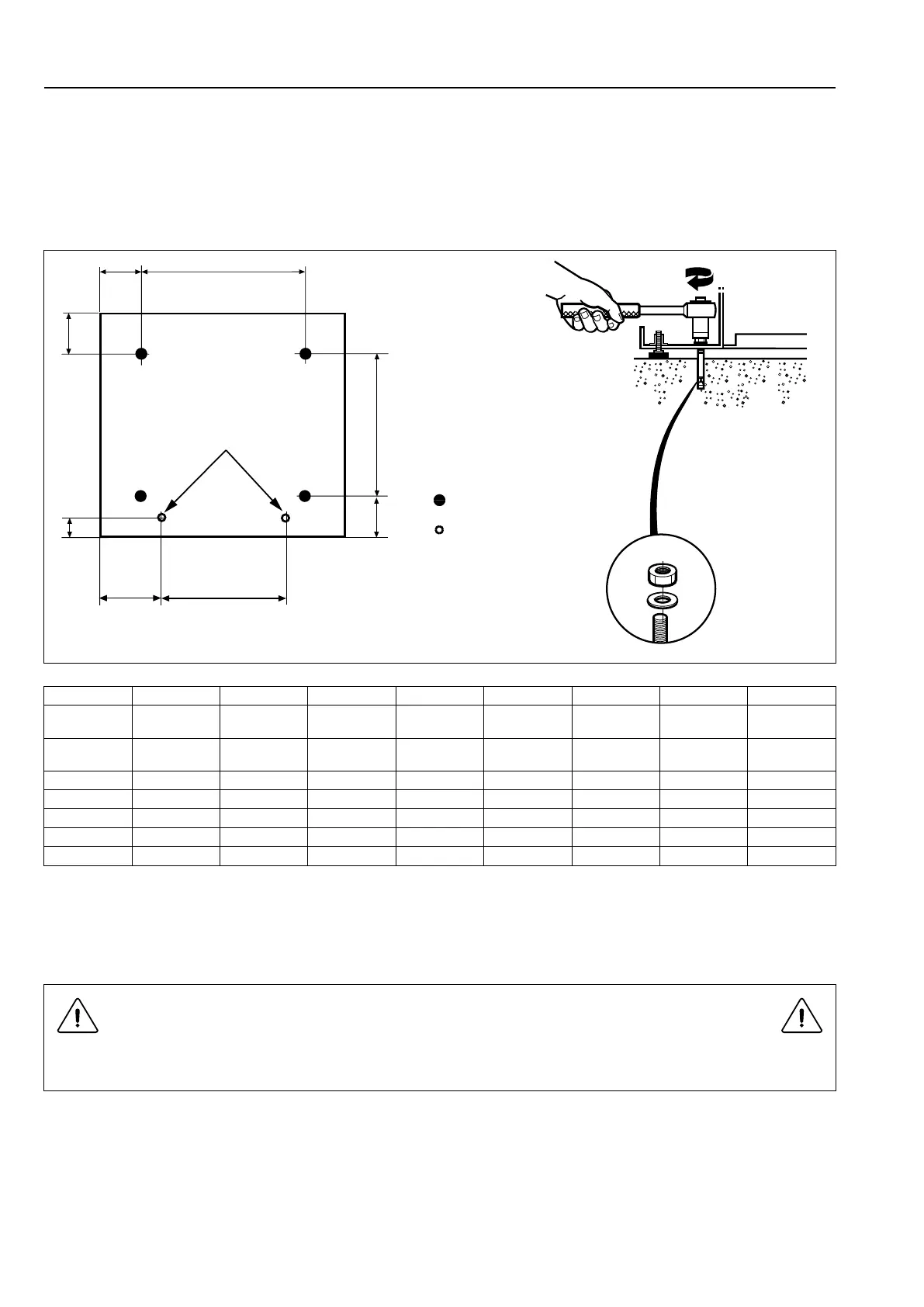

The table shows the correct drilling points.
W565H-W5105H: Mark and drill two holes (⌀ 8 mm) about 40 mm deep in the positions shown.
W5130H-W5300H: Mark and drill two holes (⌀ 10 mm) about 50 mm deep in the positions shown.
C A
D
G
F
E
B
H
FRONT
= drilling points
= position of feet
1
1
fig.5989A
mm
A B C D E F G H
W565H/
W565HLE
495 460 110 125 375 170 40 100
W575H/
W575HLE
495 460 110 125 375 170 40 100
W5105H 575 465 130 140 455 185 35 95
W5130H 635 490 135 175 515 195 65 125
W5180H 715 545 125 205 595 185 65 125
W5240H 790 615 115 180 670 175 65 125
W5300H 790 755 60 140 670 175 65 85
Place the machine over the two drilled holes. The holes are at the front of the machine.
Level the machine with the feet of the machine. Screw in the feet as much as possible before starting to level the ma-
chine. This will make the machine stand steadier.
Insert the expansion bolts (1) into the holes drilled in the floor. Fit the washers and nuts and tighten well.
It is of the upmost importance that the machine is placed in level, from side to side as well as front to rear. If the
machine is not properly levelled, it may result in out-of-balance without a real out of balance in the drum.
