Installation manual
3 Technical data

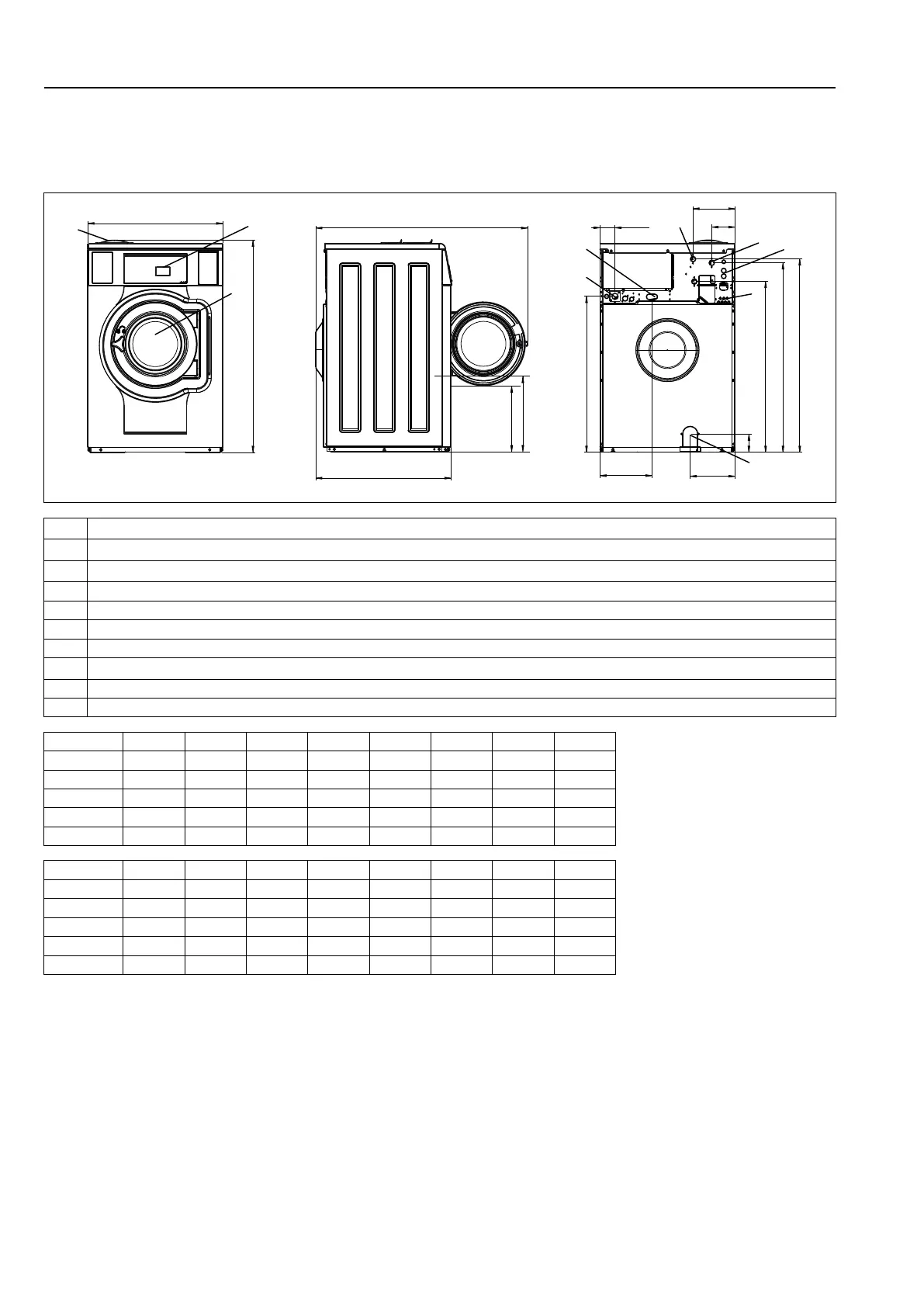

3.1 Drawing
3.1.1 W565H, W565HLE, W575H, W575HLE, W5105H
A
I
H
C
3
L
K
J
1
9
G
2
5
7
10
F
M
O
N
4
8
6
B
E
D2
D1
fig.8027
1 Operating panel
2 Door opening, W565H, W565HLE, W575H, W575HLE: ⌀ 310 mm, W5105H: ⌀ 365 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
W565H 720 721 1132 352 406 1130 831 80
W565HLE 720 721 1132 352 406 1130 831 80
W575H 720 721 1132 352 406 1130 831 80
W575HLE 720 721 1132 352 406 1130 831 80
W5105H 830 767 1212 355 412 1223 916 80
mm
H I J K L M N O
W565H 1030 224 124 1010 910 278 98 239
W565HLE 1030 224 124 1010 910 278 98 239
W575H 1030 224 124 1010 910 278 98 239
W575HLE 1030 224 124 1010 910 278 98 239
W5105H 1115 217 124 1095 995 278 102 294
