Electrolux W575HLE - W5130 H

Installation manual
9

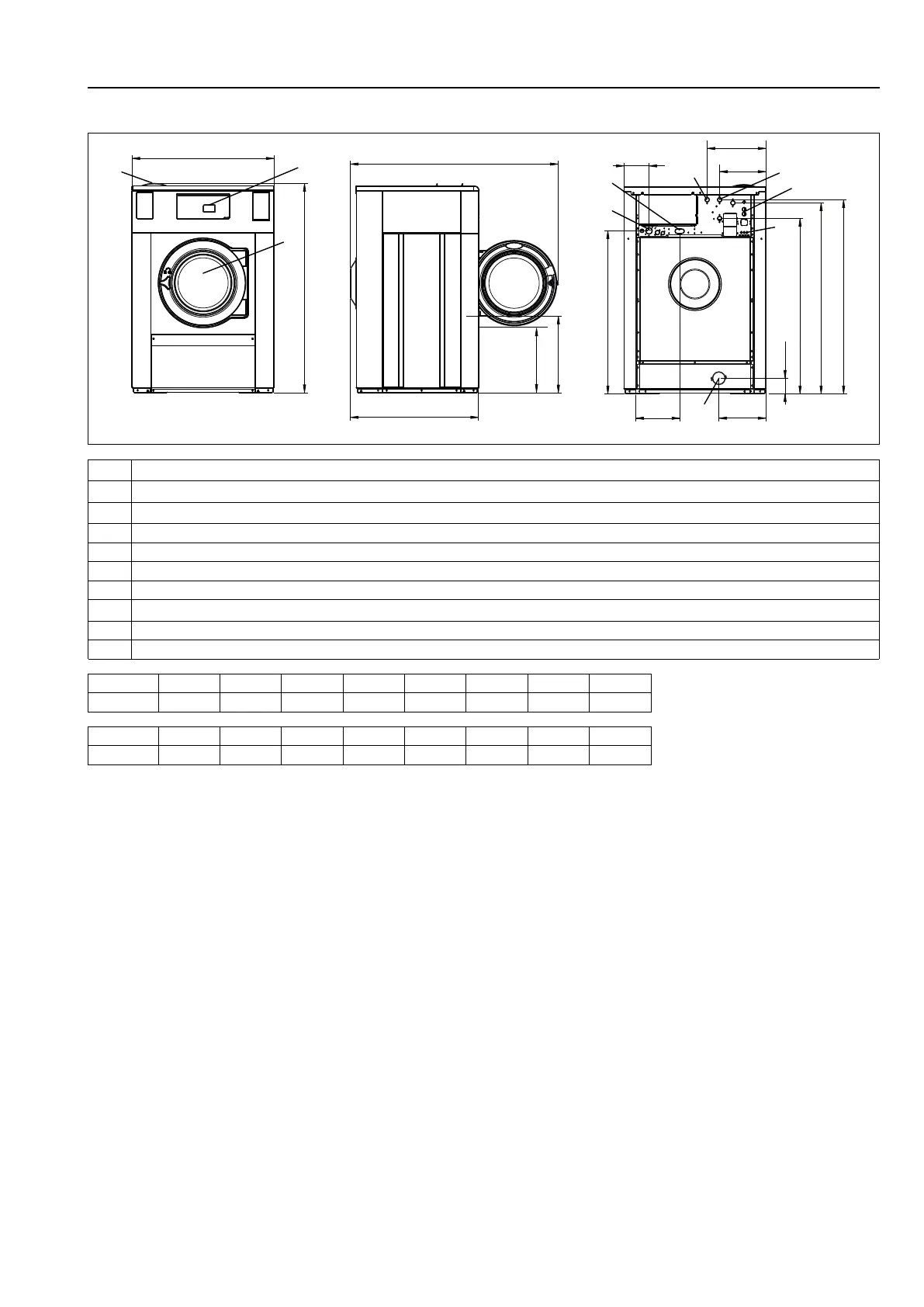

3.1.2 W5130H
A
C
3
1
2
H
L
K
G
I
J
6
4
9
10
F
M
O
N
7
5
B
E
D2
D1
8
fig.8028
1 Operating panel
2 Door opening, W5130H: ⌀ 395 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
W5130H 910 821 1340 430 491 1331 1044 160
mm
H I J K L M N O
W5130H 1243 377 297 1223 1123 282 100 302
