Electrolux W575HLE - Outputs for Detergent Signals and Inputs for Pause Signals, Empty Signal and Price Reduction (2 D)

Installation manual
33
9.4.4 Outputs for detergent signals and inputs for pause signals, "empty" signal and
price reduction (2D)

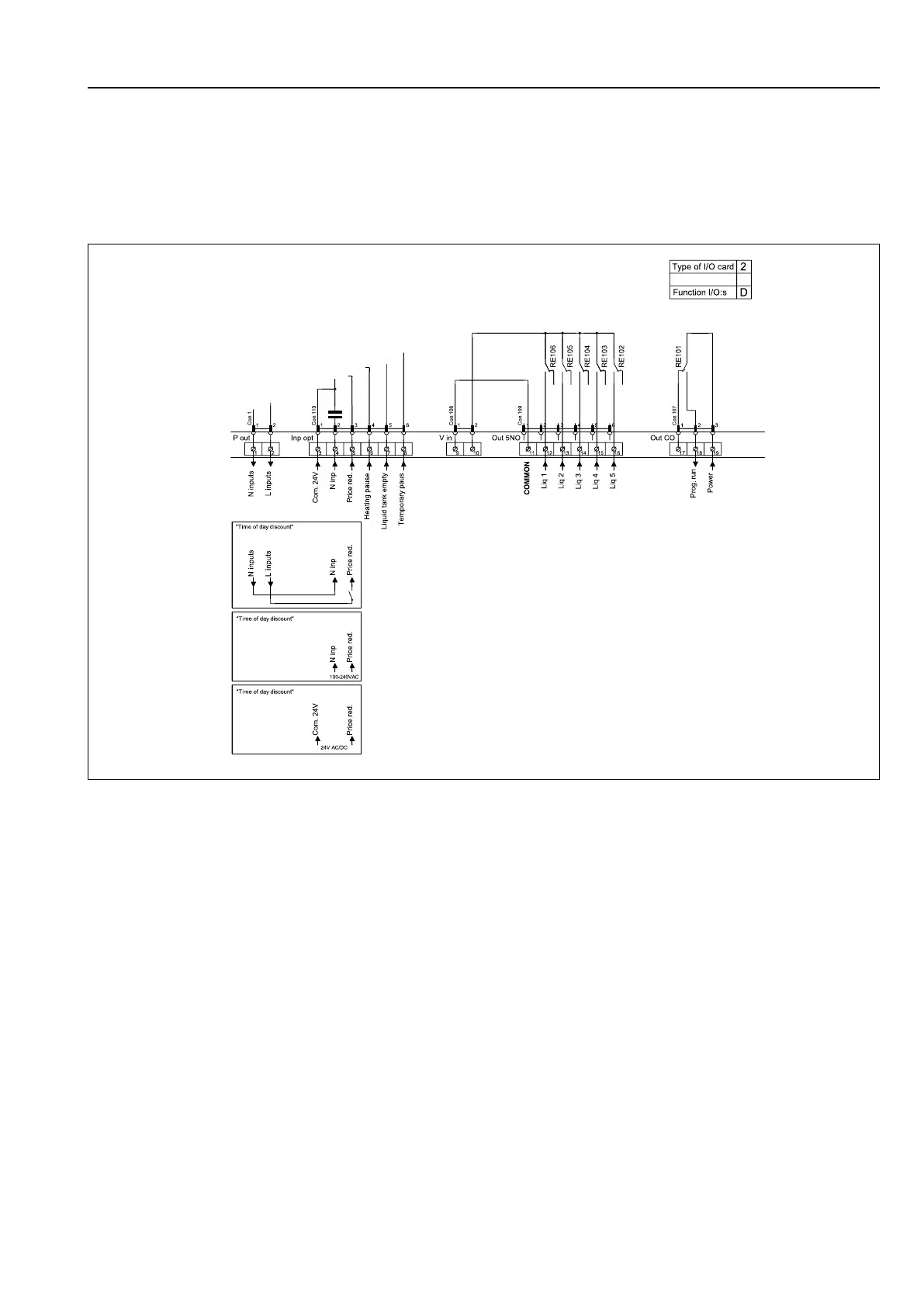

The figure shows standard function addressing for machines with the coin program package.
By maintaining an active (high) signal on connection 5 ("Price red"), the price of the program can be reduced. This
function has a number of uses, including providing reductions during a specific period of the day. Whilst the signal re-
mains active (high), the price of the program is reduced by the percentage entered in the price programming menu.
fig.6314A
