Installation manual
29

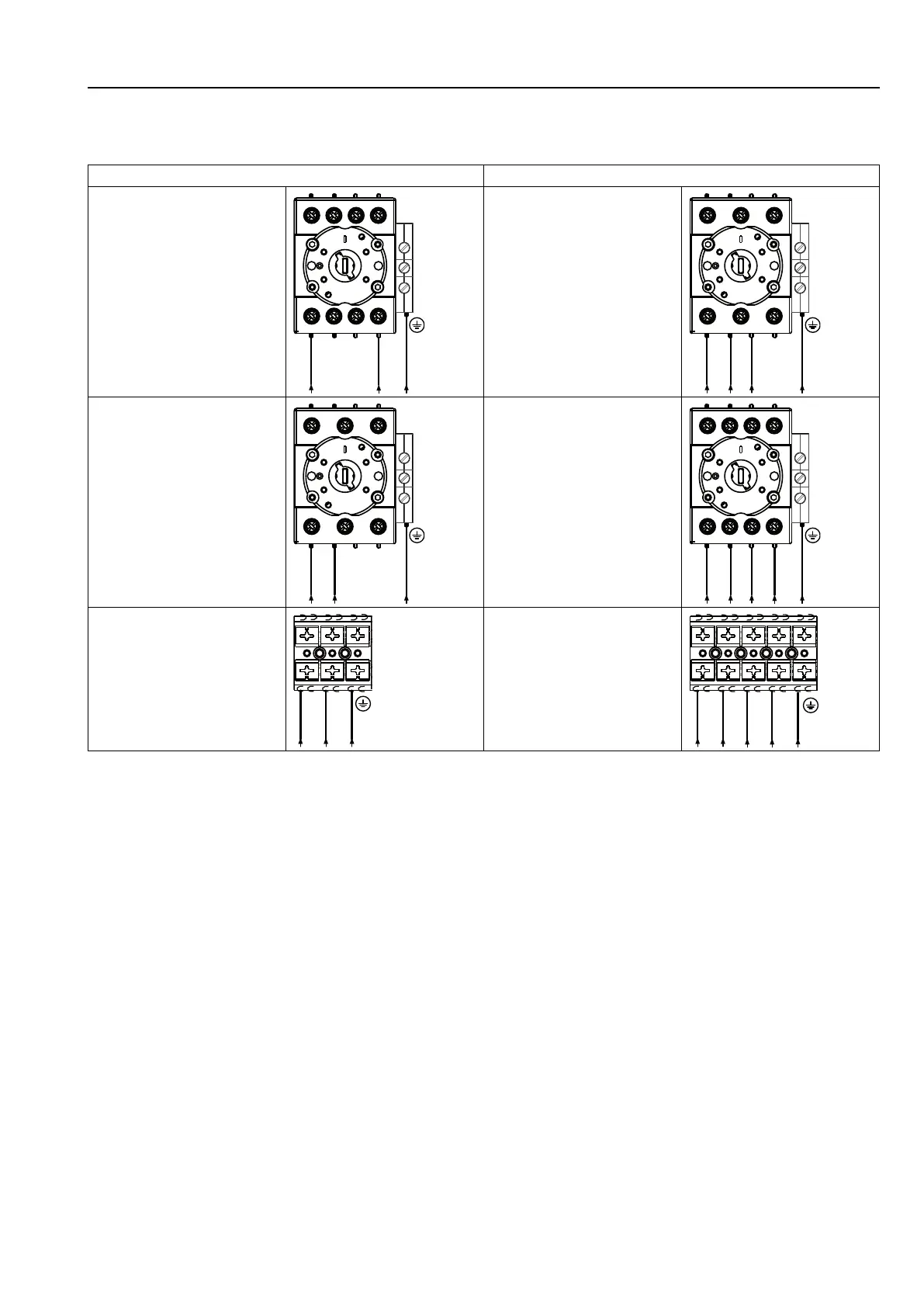

9.3 Machine connection
Connect the earth and other two wires as shown.
Single-phase connection Three-phase connection
1NAC
L1
N
3AC
L1 L2 L3
1AC
L1 L2
3N AC
L1 L2 L3
N
1N/1
L1 L2/N
3N AC
L1 L2 L3 N
Single phase machines may be powered either by connection between a phase and neutral or by connecting be-
tween two phases.
Example:
Machines for 220-240V single phase may be powered from 380V or 400V or 415V system by connection between a
phase and neutral or from 220V or 230V or 240V system by connection between two phases.
