Electron E-COAT Master - Pneumatic Data and Performance

9
E-COAT Master Control Unit
Powder Paint Type Epoxy / Polyester
Powder Hose Type Double Carbon De charge Connection Antistatic Hose
Powder Hose Length 5 m
Powder Hose Diameter 11 mm
Powder Air Nozzle Diameter 1,5 mm
E-COAT Master Control Unit
Compressed Air Connection 8 mm
Input Pressure 5,5-7,0 bar
Max. Water Vapor in Compressed Air 1,4 g/m3
Max. Oil Vapor Content in Compressed Air 0,12 mg/m3
2.2. Pneumatic Data
2.3. Powder Paint Output References
E-COAT Master Control Unit
Total Air (lt/min)
50
75 100
% Paint Powder Output (gr/min)
20 5
10 25
40 25
60 130
60
60 165 240
80
130 240 307
100
185 290 360
2.4. E-COAT Master with E-FEED V2 Output
2.5. E-COAT Master Air Flow Rates

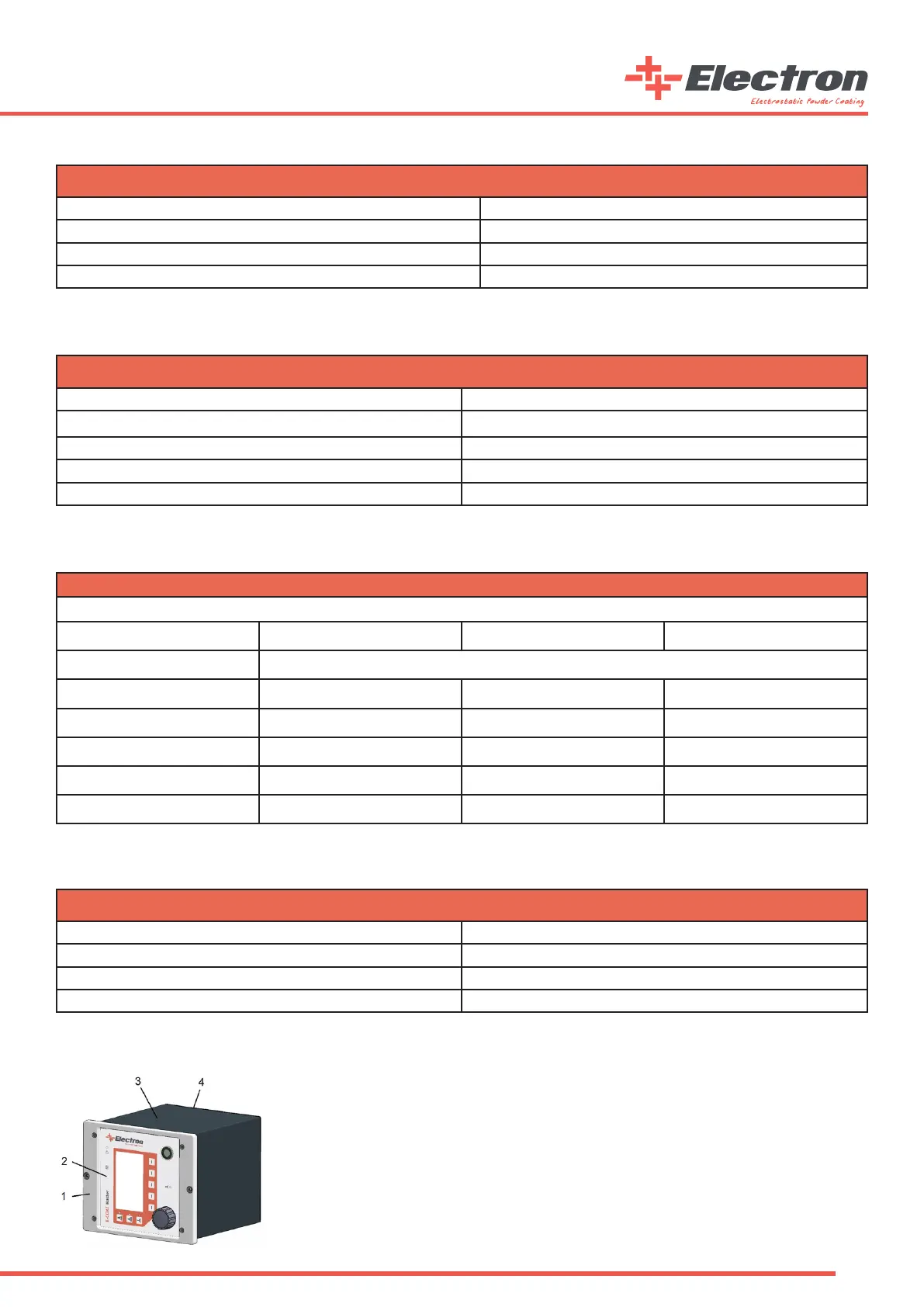

2.6. General View
E-COAT Master Control Unit
Nozzle Air 0-16 lt/min (2 lt/min Factory Set.)
Supplementary Air 10-75 lt/min
Conveying Air 10-100 lt/min
Total Air 20-175 lt/min
1) Front Panel
2) Display and Control Buttons
3) Casing
4) Back Panel and I/O
