Installation:
The CGR-30 system is to be installed in
accordance with the current CGR-30 Installa-
tion Instructions, AC 43.13 and any other
appropriate FAA approved practices or
guidelines. These instructions along with FAA
approved material insure the system will meet the requirements of the applicable TSOs once
installed in an aircraft. There are no further specific installation limitations of this system.
6.3 Installing a D-sub Pin onto a TC or Tin Copper Wire:
D-sub pins are used in the D-sub connectors found on the EDC and the CGR. Most of these pins have
already been installed on the appropriate wires and inserted into the proper connector. Installing a D-sub
pin requires a D-sub crimp tool. Most electronic stores carry a reasonably priced D-sub crimp tool that
47

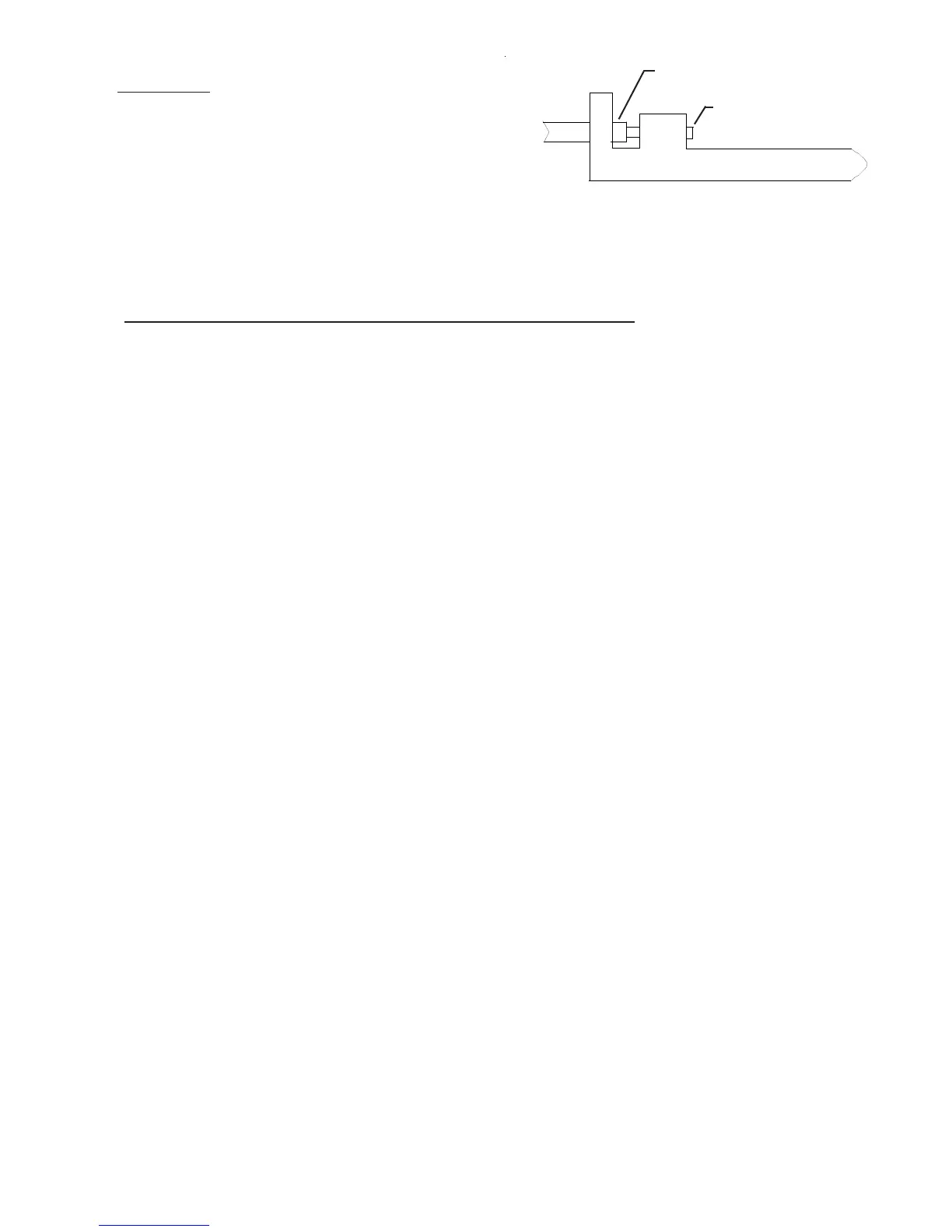

Insulation
E.I. D-sub Pin
Bare Wire
