Appendix B: Transmitter Installation
iConnect
Installation Manual
101
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
EL-4714M/P complies with EN-50131 Grade 2 Class II Power Supply Type C.
Wireless LCD Keypad (EL-4727)
The EL-4727 is a 2-Way wireless keypad with LCD display used to remotely program and operate the Control System.
The keypad's functionality is identical to the keys on the iConnect
Control System front panel.
Programming mode can be established either from a keypad or from the main panel, but not
simultaneously.
1. Speaker
2. LCD Display
3. Arming Keys
4. Keypad
5. Microphone (optional)
6. System Status LEDs

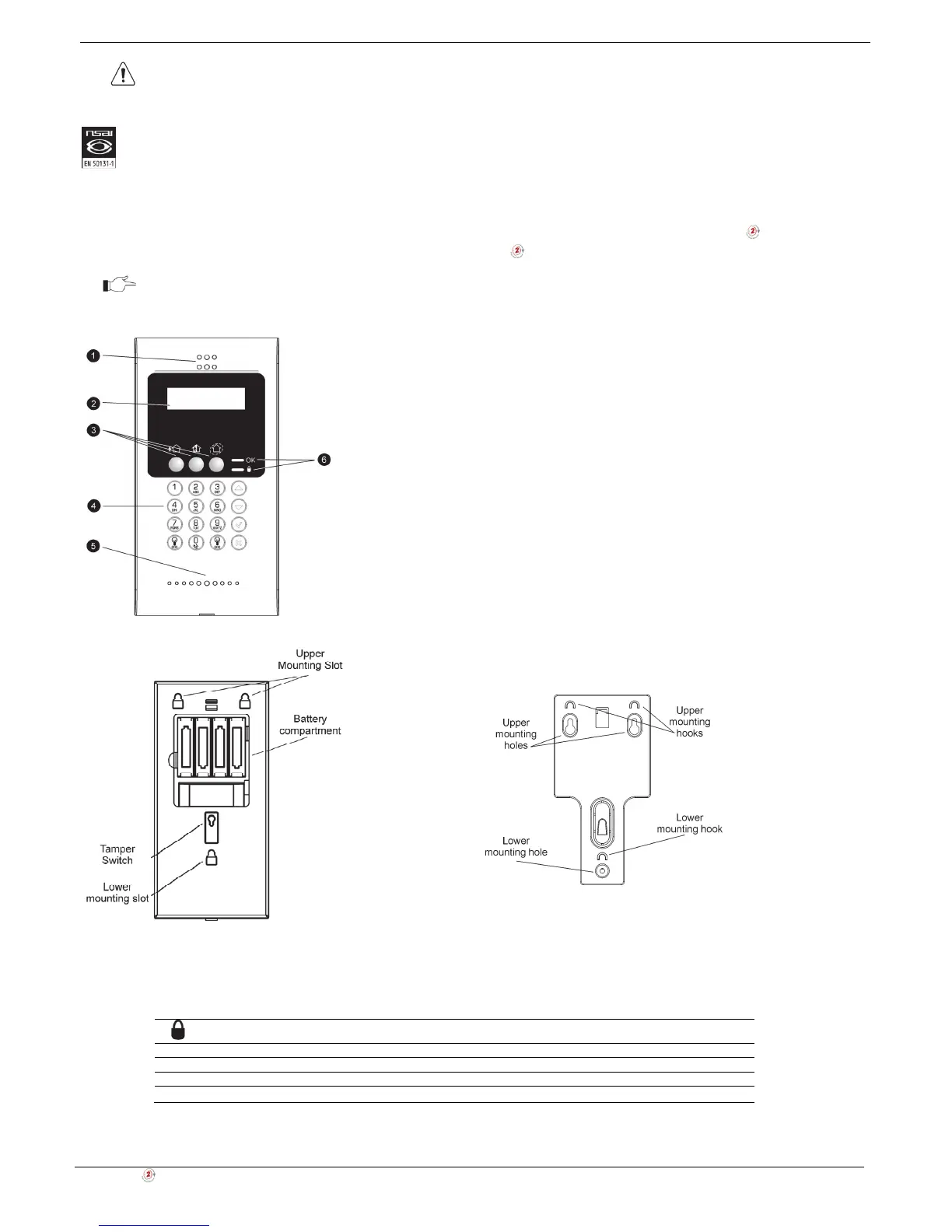

Figure B- 37: Keypad front layout
Figure B- 38: Keypad back layout Figure B- 39: Keypad mounting bracket
LED Indication
Table B-6: LED Indication (EL-4727)
LED:
OK LED:
Off: System disarmed Green: Power OK
Green: System armed Yellow: System trouble
Flashing red: Alarm Flashing green: Open zone
Flashing yellow: (Slow) Low battery, (Fast) AC loss
