PS 9000 T Series

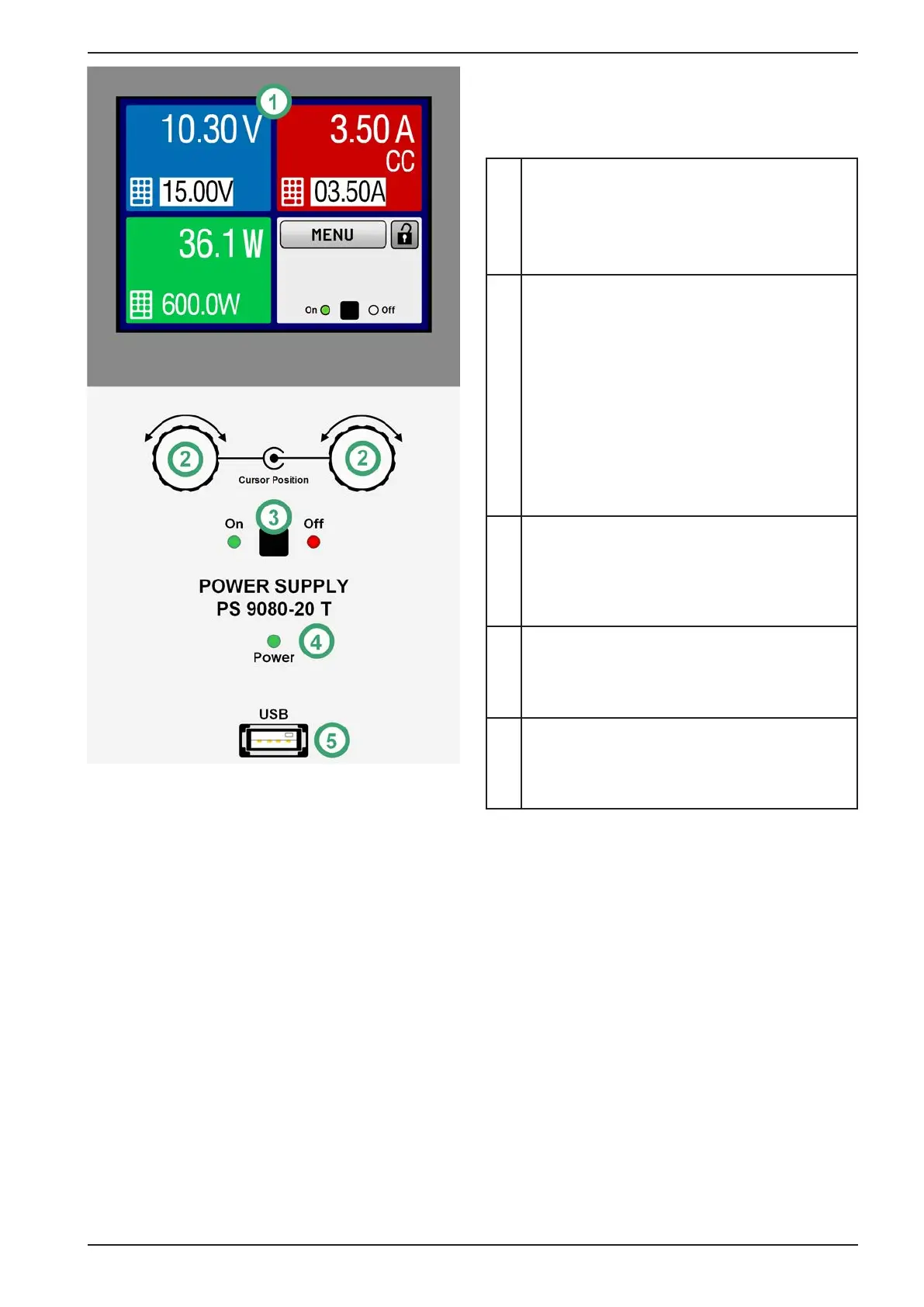

Figure 6 - Control panel
Overview of the elements of the operating panel
For a detailed description see section „1.9.5. The control
panel (HMI)“.
(1)
Touchscreen display
Used for selection of set values, menus, condi-
tions and display of actual values and status.
Thetouchscreencanbeoperatedwiththengers
or with a stylus.
(2)
Rotary knob with push button function
Left knob (turn): adjusting the voltage set value,
or setting the parameter values in the menu.
Left knob (push): selection of the decimal position
to be changed (cursor) for the assigned value.
Right knob (turn): adjusting the current or power
set value, or setting parameter values in the
menu.
Right knob (push): selection of the decimal po-
sition to be changed (cursor) for the assigned
value.
(3)
On/Off button for DC output
Used to toggle the DC output between on and
off. The LEDs “On” and “Off” indicate the state of
the DC output, no matter if the device is manually
controlled or remotely
(4)
LED “Power”
Indicates different colours during the start of
the device and remains green for the period of
operation.
(5)
USB-A port
For the connection of standard USB sticks. See
section „1.9.5.5. USB-Port (Front side)“ for more
details
