HDMI Connection
HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control
signals through one cable only. These signals are transferred in digital.

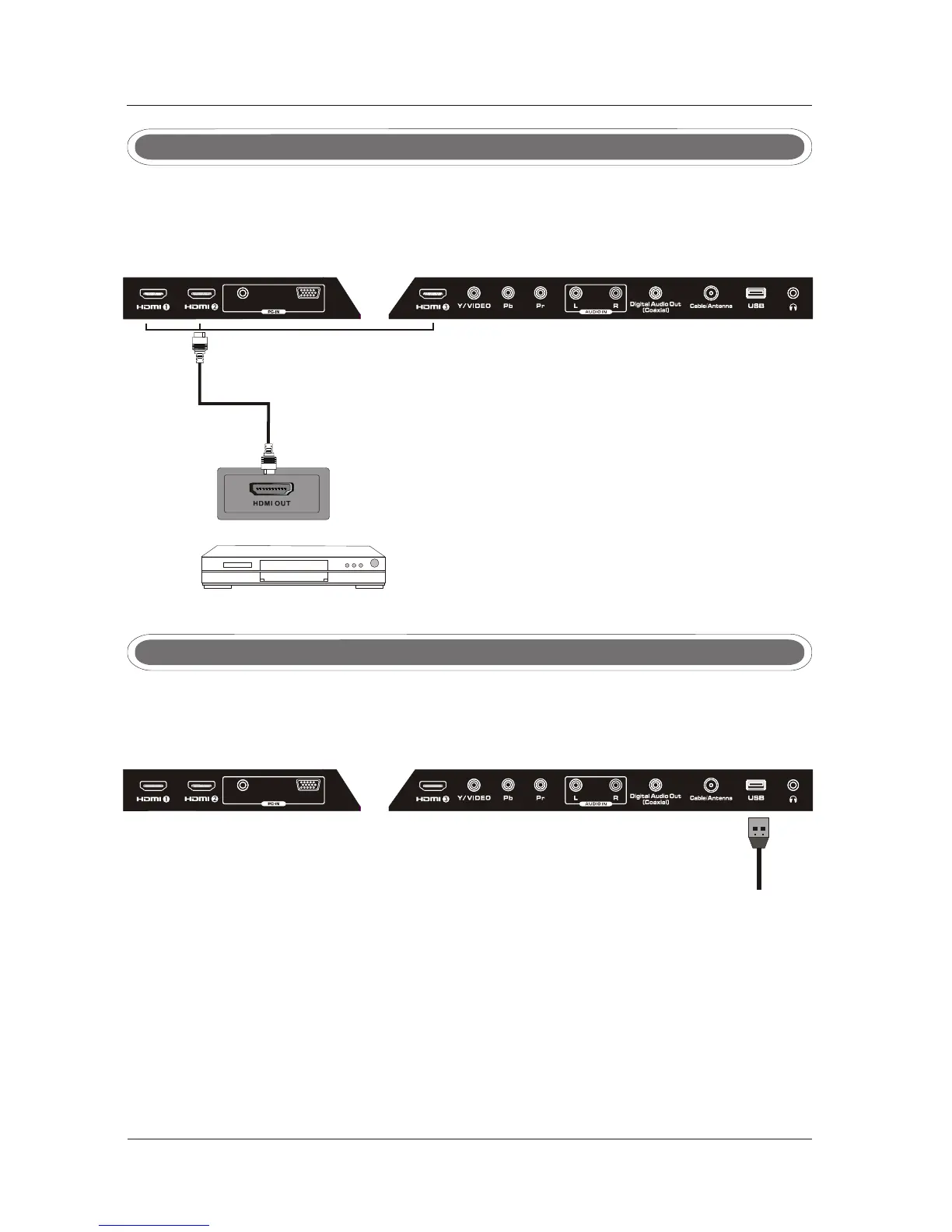

TV INSTALL TION DRAWINGSA
DVD Back
TV Back
TV Back
USB Cable
HDMI Cable
The TV is provided with mounting holes for a VESA approved wall mounting bracket (NOT SUPPLIED).
Remove the screws holding the base to the base bracket and lift the base away (do not remove the base
mounting brackets). Mount the VESA bracket using 4 x M5x10 isometric threaded screws (not supplied).
Do not use screws longer than 20mm; damage will occur to the internal parts.
Caution: Your new TV is heavy; please consult with a professional wallmount installer to perform this
installation.
Wall Mounting
Insert the USB flash, drive to the USB port, select USB channel source via the SOURCE button on
the remote control.
USB Function
PC -AU DIO
VGA
PC -AU DIO
VGA
