Front View

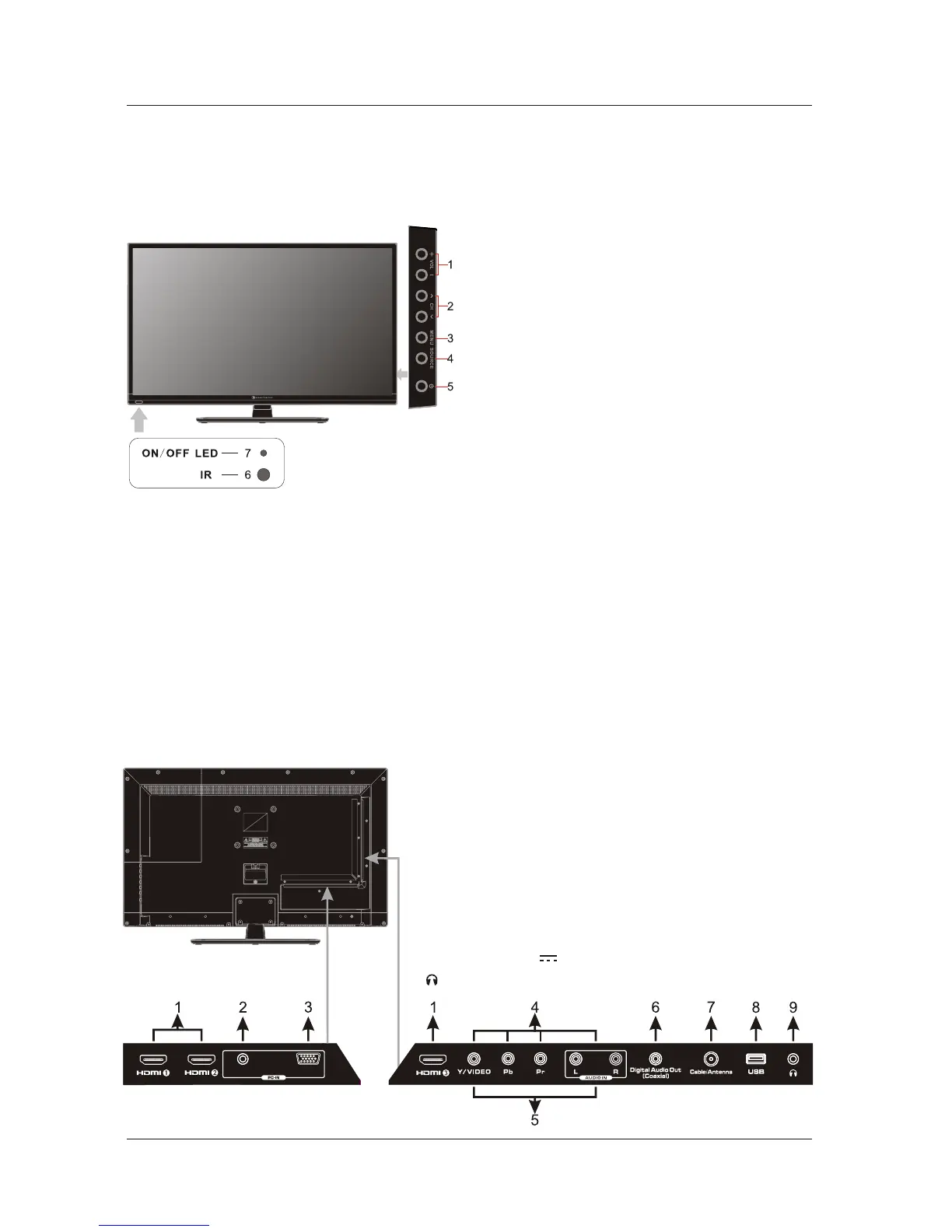

5. FRONT/BACK CONNECTIONS OF TV
Back View and Control Connections
1. Press “VOL+” or “VOL-” to increase or decrease
the volume.
2. Press “CH ” or “CH ” to scan through channels.
3. Press “MENU” to bring up the main menu on
the screen.
4. Press “SOURCE” to select the input source.
5. Press “POWER” button to turn the TV on or off.
6. REMOTE SENSOR: Infrared sensor for the
remote control.
7. POWER INDICATOR: red in standby mode.
blue when your TV is turned on.
Shows
Shows
FRONT/BACK CONNECTIONS OF TV
7
5. VIDEO/AUDIO(L/R): Connect the Video/Audio output
jack of DVD or VCR.
4. YPbPr/AUDIO(L/R): Connect the YPbPr /Audio output jack
of DVD or VCR.
7. Cable/Antenna: RF input that connects to your cable or
VHF/UHF antenna.
3. VGA(PC): Connects to a personal computer's video
output connector.
2. AUDIO(PC): Connects to a personal computer's audio
output connector.
6. Digital Audio Out (Coaxial): Connects to the coaxial audio input
of your digital stereo equipment.
<
>
1. HDMI1/HDMI2/HDMI3: HDMI (High-Definition Multimedia
Interface) provides an uncompressed, all-digital audio/
video interface between this TV and any HDMI-equipped
A/V equipment. HDMI supports enhanced, or high-
definition video, plus digital audio.
Output power 5V 0.5A.
PC -AU DIO
VGA
8. USB: Connect to the external drive.
9. : Connect to the headphone.
