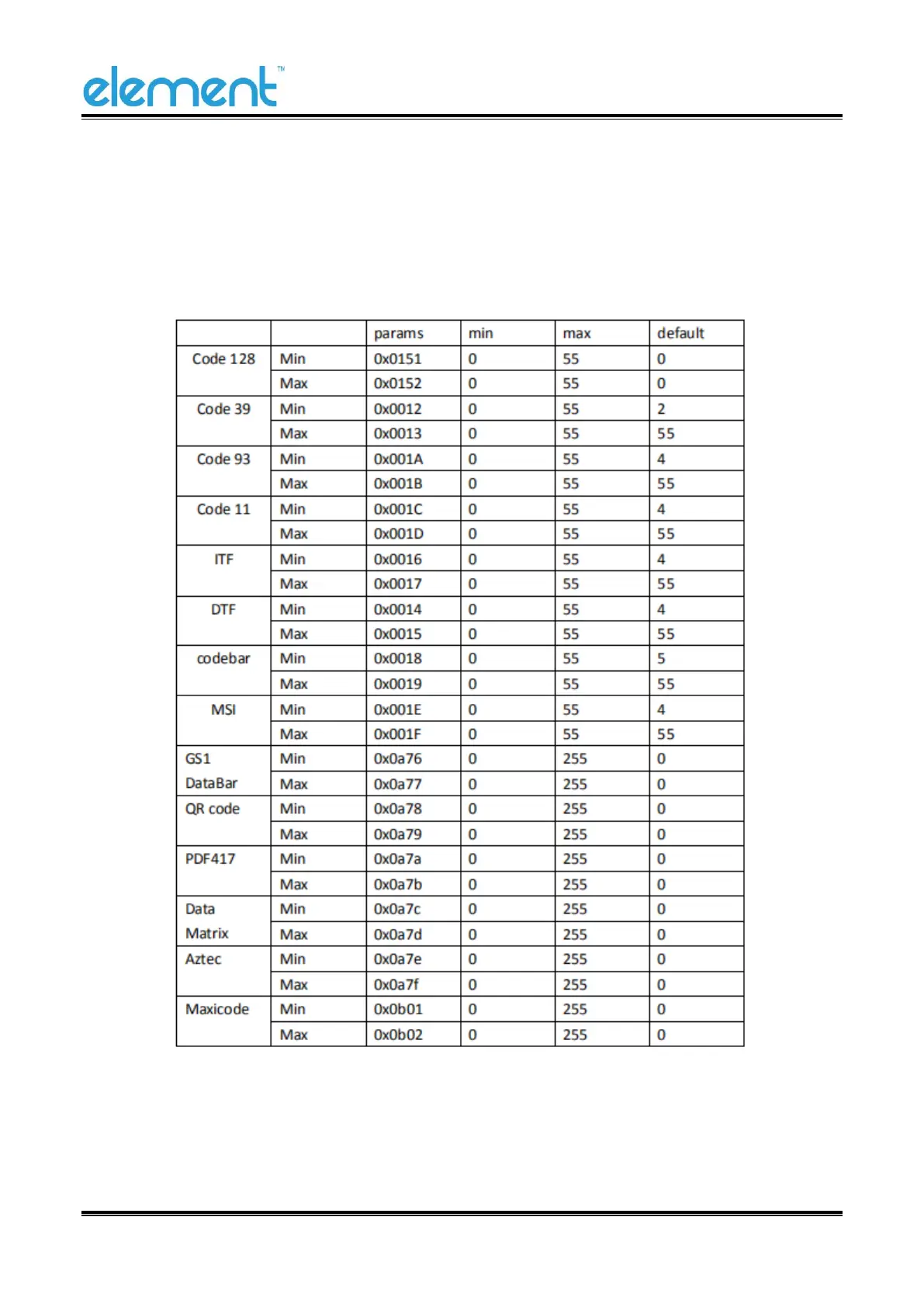

User Manual
64
Set the b
arcode length
Operand: 0x50
Data: 3 B
YTE data
param: Dat
a0 Data1—These two dat
a
is the para
met
er of data.
Note:
The
sett
ing
rang
e
must
b
e
that
the
minimum
length
is
less
than
or
equal
to
the
maximum
length, and the two
p
ar
amet
ers need to be sent
at the same time.
73
75
Table of Contents
default chapter
4
Table of Contents
4
Chapter 1 Introduction
11
About Manual
11
Barcode Read
11
Use the Setting Barcode
12
Restore Factory Defaults
12
Chapter 2 Communication Interface
14
Serial Interface
14
RS232 General Serial Interface
15
Baud Rate
16
USB Interface
16
HID Virtual Keyboard
16
USB International Keyboard Setting
18
Character Output Setting (China, Japan, Korea and Thailand)
24
USB Virtual Serial Port
26
HID-POS Interface
26
Bluetooth Interface
26
Set Scanner Switch Time (Bluetooth Mode Only)
27
Bluetooth Pop-Up Iphone Keyboard Settings (Bluetooth Mode Only)
27
Bluetooth Base Self Sensing Setting (Bluetooth Model Only)
27
VID & PID Table
28
Chapter 3 Scanning Mode
29
Manual Mode
29
Sense Mode
29
Continuous Mode
31
Command Programming
33
Scan Screen Mode（Optimize Settings for Screen Barcodes Only
33
Offline Storage Mode (Only Available for Bluetooth Mode)
33
Chapter 4 Illumination and Aiming
35
Aiming
35
Illumination
35
Power on and Read Successfully Prompt Tone
37
Power on Prompt Sound Settings
37
Buzzer Volume and Tone Settings
37
Chapter 5 Symbologies
40
Barcode General Settings
40
1D Barcode Switch
40
All Barcode Switch
40
1D Barcode Setting
42
Ean-8
42
Enable/Disable EAN-8
42
Enable/Disable 2/5-Bit Add-On Code
42
Convert EAN-8 to EAN-13
42
Enable/Disable EAN-13
43
Enable/Disable 2/5-Bit Add-On Code
44
Upc-E
44
Enable/Disable UPC-E
44
Transmit Check Character
44
Convert UPC-E to UPC-A
45
System Character Transmit
46
Upc-E1
46
Enable/Disable 2/5 Add-On Code
46
Upc-A
47
Enable/Disable UPC-A
47
Transmit Check Character
48
Enable/Disable 2/5-Bit Add-On Code
48
Transfer System Character
48
Code 39
49
Enable/Disable Code 39
49
Check Character Verification and Transmit
49
Enable/Disable Code 39 Full ASCII
49
Convert Code 39 to Code32
51
Code 32 Prefix
51
Code 93
51
Enable/Disable Code 93
51
Code 11
51
Enable/Disable Code 11
51
Transmit Check Character
53
Code 128
53
Enable/Disable Code 128
53
Code 128 <FNC4
53
Codabar
55
Enable/Disable Codabar
55
Start and Stop Characters
55
Msi
55
Enable/Disable MSI
55
Check Bit Algorithm
57
Transmit Check Character
57
Interleaved 2 of 5
57
Enable/Disable Interleaved 2 of 5
57
Check and Transmit Character
57
Convert I 2 of 5 to EAN-13
59
Matrix 2 of 5
59
Enable/Disable Matrix 2 of 5
59
Check and Transmit Character
59
Industrial 2 of 5
61
Enable/Disable Industrial 2 of 5
61
Standard 25
61
Enable/Disable Standard 25
61
Issn
61
Isbn
61
Data Bit Setting
62
Isbt 128
62
Enable/Disable ISBT 128
62
Gs1 128
62
Enable/Disable GS1 128
62
Gs1-128 Emulation Mode for UCC/EAN Composite Code
62
GS1 Databar
63
Enable/Disable GS1 Databar
63
Convert GS1 Databar to UPC/EAN
63
GS1 Databar Limited
64
Enable/Disable GS1 Databar Limited
64
GS1 Databar Expanded
64
Enable/Disable GS1 Databar Expanded
64
1D Barcode Anti-Color
64
2D Barcode Setting
65
Pdf417
65
Enable/Disable PDF417
65
Data Matrix
65
Enable/Disable Data Matrix
65
Anti-Color
65
Read Data Matrix
65
Enable/Disable QR
67
Enable/Disable Micro QR Code
67
Anti-Color
67
Aztec
67
Anti-Color
68
Han Xin
69
Anti-Color
69
Chapter 6 Barcode Input / Output Settings
70
Common Suffix
70
Barcode Data Case Conversion
70
Convert Grouping Character to Space
70
Replace the (-) to TAB in DM Barcode
71
Read UDI Barcode
72
Read Digital Barcode Only
72
Remove Zero Data at the Beginning of Barcode
72
Remove or Reduce Space
72
Set the Barcode Length
74
Skip the Number of Characters before Barcode Data
75
Skip the Number of Characters after Barcode Data
75
ITF Data Cut
75
Brazil Special Barcode Encryption Rule Settings
76
Touch Key Switch Settings（Only for Models with Touch Keys
76
Chapter 7 Scanner Settings
77
Barcode Command Format
77
Barcode Setting Format
77
General Settings (Default HID Single Scan Mode)
79
Host Mode
79
Trigger Mode (Single Scanning, Scanning Continuously, Auto Sensing)
79
Default Parameters (Restore Factory Settings)
79
Decoding Timeout（0.1S~9S
80
Data Prefix
81
Data Suffix
81
Aiming Device (ON/OFF)
82
Illumination Light (ON/OFF)
82
Multi Code Quantity
83
Baud Rate of Virtual Serial Port
83
Check Bit of Virtual Serial Port
83
Multi Code Sensitivity
85
Buzzer Enables
85
The Convert Rate in HID Mode
85
Timeout Setting of the same Barcode in Non-Single Scan Mode
85
Sensitivity
86
Center Aiming Decode Setting
87
Insert Characters into Barcode Data
87
Compound Command Parameters
87
Set Control Character Output Mode
90
Screen Scanning Settings
90
Multiple Key Switch Settings(some Models)
90
UDI Barcode Rules
91
Other Parameter Settings
91
Set Bluetooth Barcode Data Transmission Mode
92
Set Vibrator Enable
92
Set up Sensing Hardware
92
Set HID Leading/Trailing Control Character Form
92
Obtain Barcode Data in the Specified Range
96
Appendix Ⅰ Barcode Enabling Settings
98
Appendix Ⅱ Data Code Prefix and Suffix
101
Appendix Ⅲ ASCII Code Table
114
