“OPTIONAL” INPUT BOARD

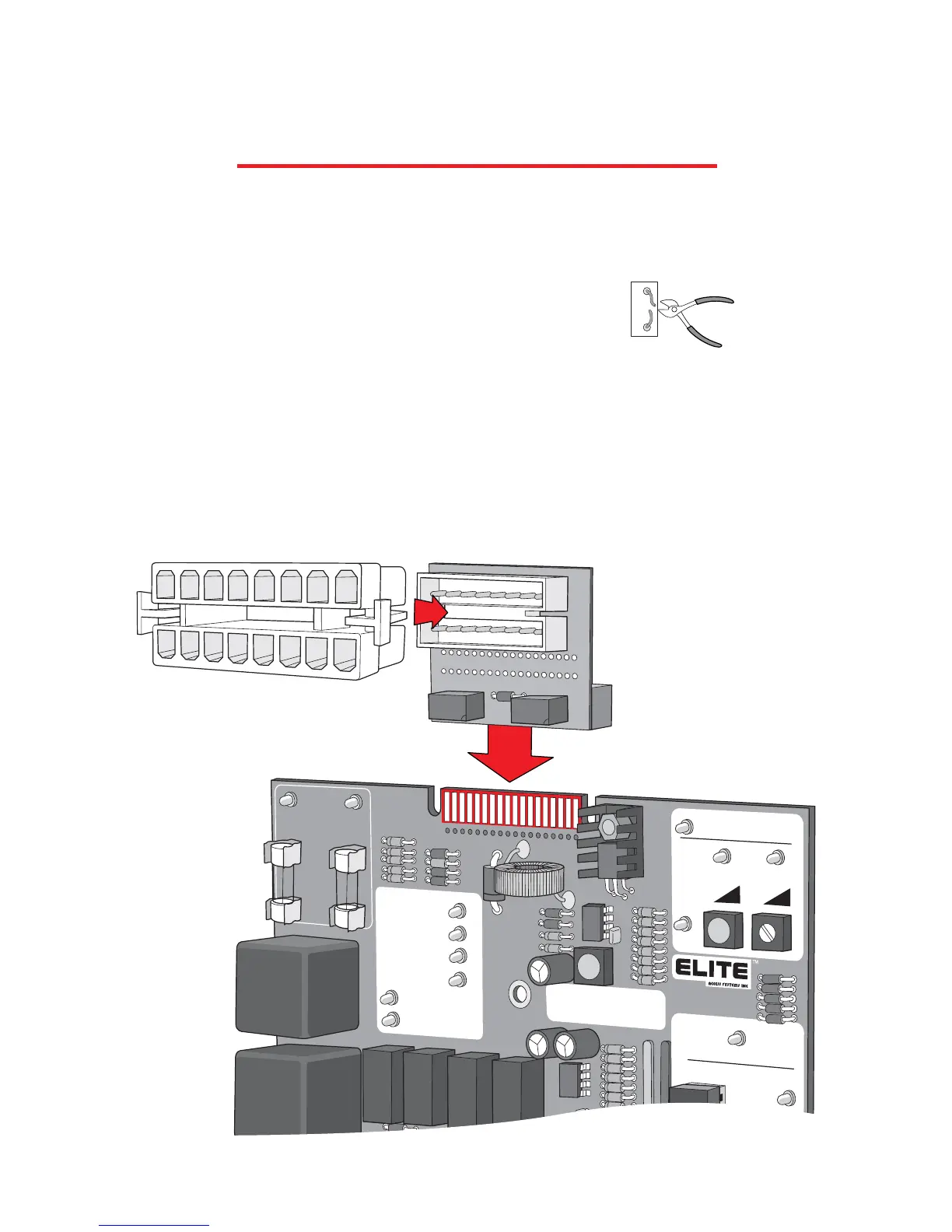

The optional board allows extra control of the gate, is available only from Elite Access
Systems. Installation is simple; just clip the optional board to the J2 slot on the top of the
control board. Below lists the function of each pin.
Open Switch
Stop Switch (Cut W1 Jumper at Bottom of Board)
Timer Close Output from Master to Slave
Timer Input from Slave to Master (Close Command)
Vandalism Alarm Output (Not Burglar Alarm) - 12 VDC
Emergency Open (Direct Command from Battery to Motor)
Emergency Close (Direct Command from Battery to Motor)
Magnetic Lock - Dry Contact Relay (Com NC)
Center Loop Option (For Swing Gate Operators Only)
16
2
4
6
8
10
12
14
15
13
11
9
7
5
3
1
1
&
2
3
&
4
5
&
6
7
&
8
9
&
10
11
&
4
12
&
7
13
&
14
15
&
16
W1
16-Pin Plug
Use a
Normally
Closed
Contact
To Next Page
