TROUBLESHOOTING and PARTS LIST
Multiple Parts “Q” Number
A BT 12 - 12 VDC, 7 amp. Battery with Harness
A H-110 - Gate Chain #41 (10 ft) (20 ft included)
A H-111 - Gate Chain #40 (10 ft) Optional
A H-113 - Master Link
A H-125 - Master Link
Q003 - Chain Bolt
Q004 - Chain Bracket
Q006 - PC Board Nuts (1 Set)
Q029 - Limit Switch
Q032 - Limit Switch Adjustment Nut
Q101 - Limit Switch Bearing Holder
Q123 - Motor - DC - 12V
Robo Slide Conversion Kit
Q204
Q211 - Limit/Motor Harness
Q218 - Terminal Harness
Q206 - Control Board
Battery Harness
Q124 - Chassis
Q129 - Idler Sprocket with Bolt/Nut
Q131 - Limit Switch Drive Sprocket
Q132 - Limit Switch Sprocket
Q133 - Drive Sprocket
Q135 - Limit Switch Bolt (Shaft)
Q137 - Limit Switch Box
Q156 - 1/2 Inch Collar
Q162 - Fuse
Q180 - 1 inch Diameter Coupling
Q203 - Option Board with Harness
Q206 - Control Board
Q211 - Limit/Motor Harness
Q212 - Gear Reducer 40 - 30:1
Q218 - Terminal Harness
Q241 - Cover, Polyethylene Plastic
If you hear a “BEEP” sound, the gate is too heavy. If not check below.
Robo Slide Parts List

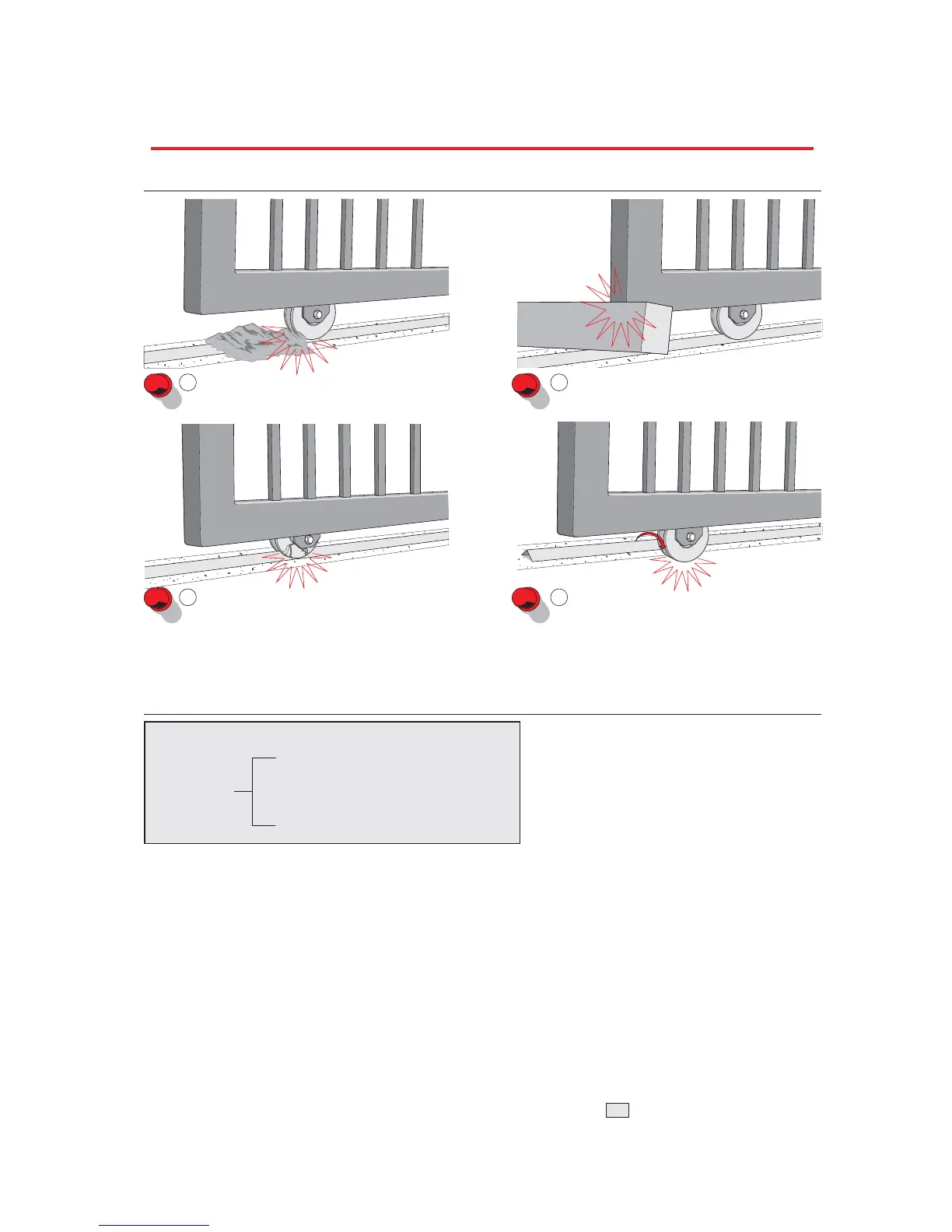

The gate is hitting a wall or a car.
21
Debris is on the gate's track such as
mud, rocks dirt, etc.
ALARM
SENSOR
ALARM
SENSOR
ALARM
SENSOR
ALARM
SENSOR
The gate has one or more broken wheels. A car has hit the gate and
the gate is off the track.
43
After fixing the problem, the Robo Slide will automatically reset itself.
21
To Next Page
