IMPORTANT NOTICE
Closing
Closing

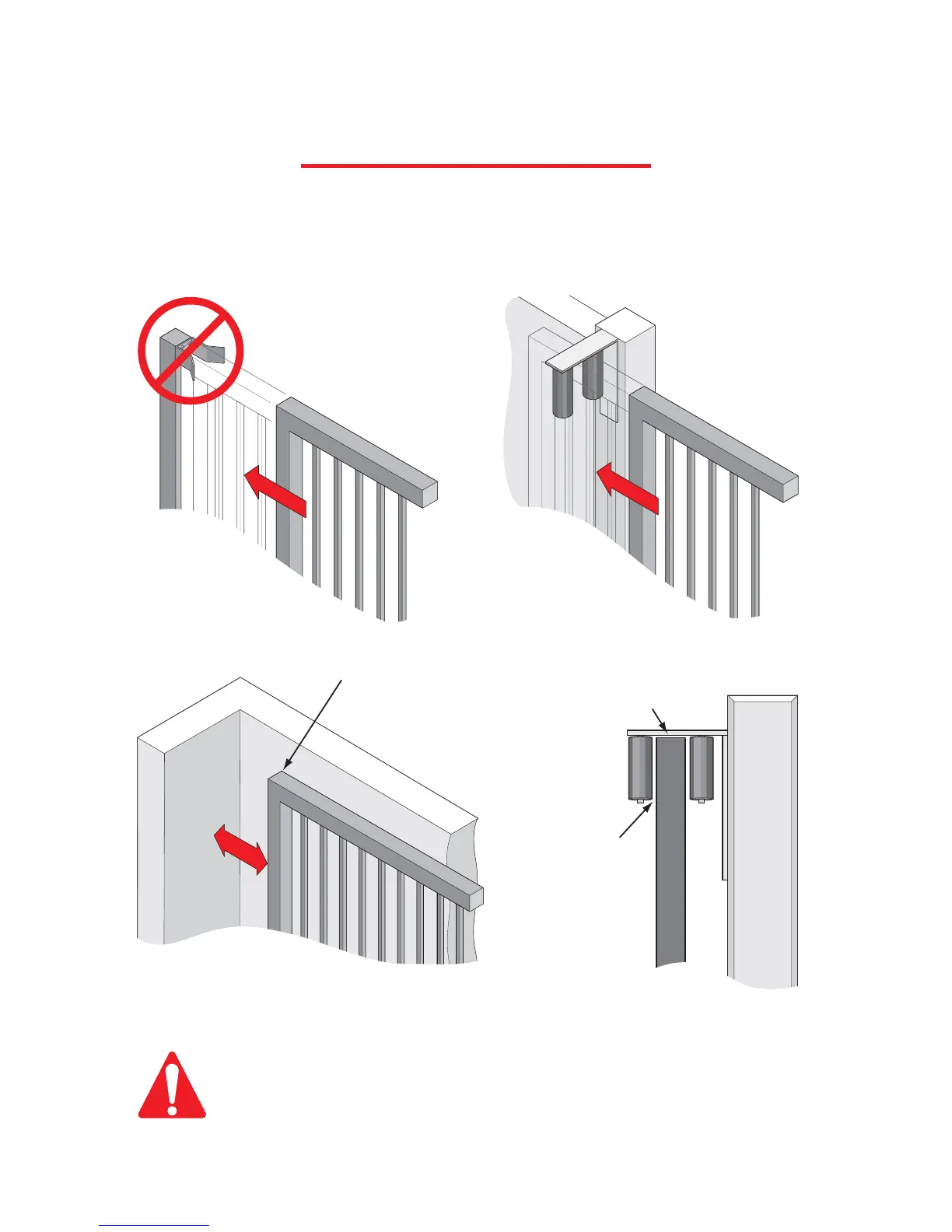

Incorrect Installation
using a Catch Post!
Correct Installation with Catch Rollers
Wall
Catch Rollers
Gate
1/2" Clearance
Between Gate
and Rollers
Minimum Clearance of 5" Between Back of Gate
and Wall or Other Objects in Gate's Path
1/4" Clearance from Top of Gate
5"
A physical stop MUST be installed on the gate prior to installation of the gate
operator. This will assure that the gate does not derail while in motion.
CAUTION
Gate in Fully Opened Position Gate Clearances
IMPORTANT!
Because gate coasting distance varies with temperature, Elite DOES NOT
recommend the installation of a catch post. This could cause the gate to collide with the post.
Guide Rollers
(Elite Part # A UHM)
To Next Page
